SKU FCC033
DN 40 DIN Flange Cover Cap - 150.5mm ID, Polyethylene
£17.90incl. VAT
Not sure it's the right size? Ask a person.
Product details

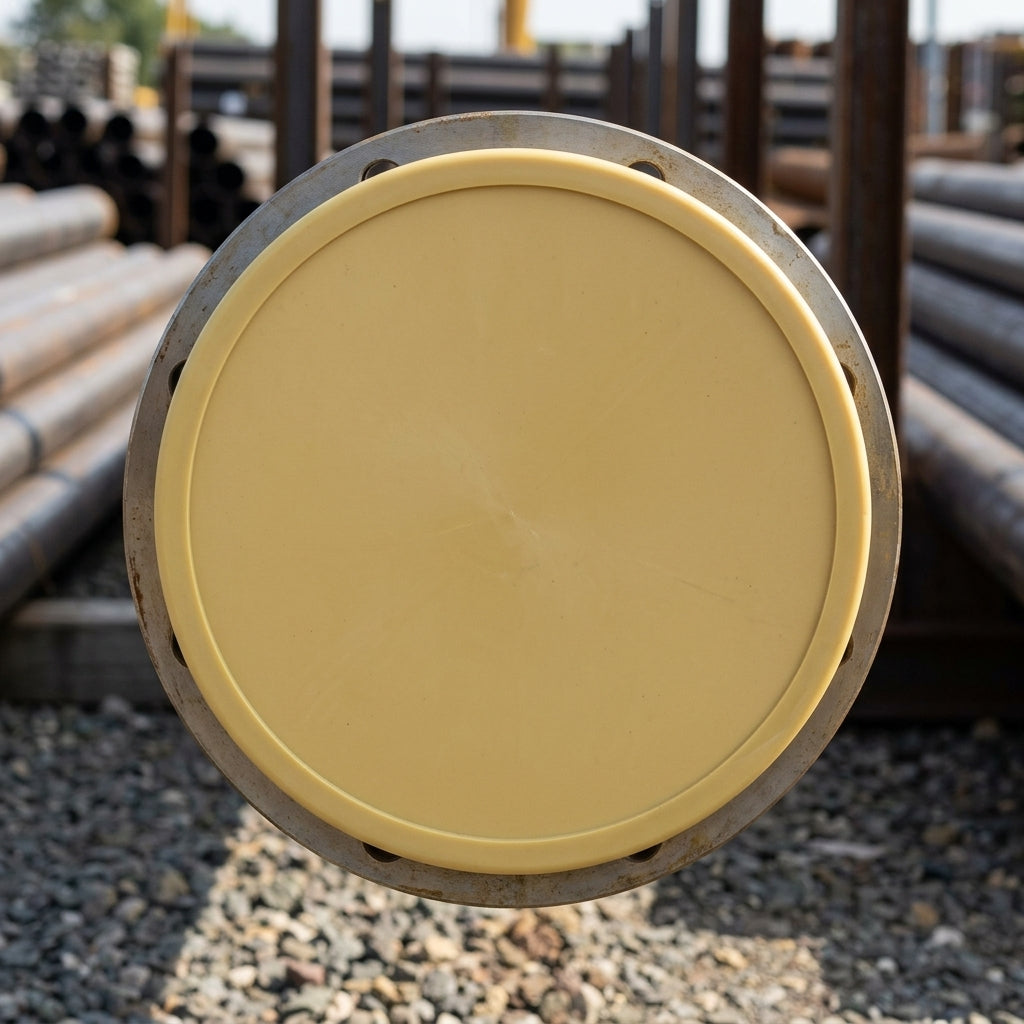

Polyethylene flange cover cap for DN 40 DIN flanges, sized to protect the 150.5mm gasket face from dirt, moisture and impact.
This push-fit cap seals over the raised face of a DIN DN 40 flange, creating a protective barrier during storage and in-transit. The polyethylene construction resists moisture and mild chemicals, making it suitable for on-site and temporary applications across maintenance work and pipeline assembly.
Key Features
- Push-fit design for quick application and removal
- Polyethylene material resists moisture and light chemical exposure
- Protects flange gasket faces from dust, dirt and accidental damage
- Compact 15mm internal length fits standard DIN flange profiles
- Reusable across multiple flange installations
Specifications
- Standard: DIN
- Nominal size: DN 40
- Internal diameter: 150.5mm
- Internal length: 15mm
- Material: Polyethylene (PE)
Applications
- Oil and gas pipeline construction and offshore operations
- Water treatment and utilities pipework assembly
- Industrial plant maintenance and flange protection
- Temporary sealing during fabrication and storage
- In-transit protection for assembled flange spools
Sizing questions
How do I pick the right cap?
Measure the outside diameter (OD) of the flange. The cap inside diameter (ID) should match it.
Why are there two caps for one size?
Flange outside diameters vary with the pressure class, so some sizes come with more than one cap ID. Measure the OD and pick the ID that matches.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
