SKU FD003
1" ANSI Self Adhesive Flange Disc - 54mm, Neoprene
£2.50incl. VAT
Not sure it's the right size? Ask a person.
Product details

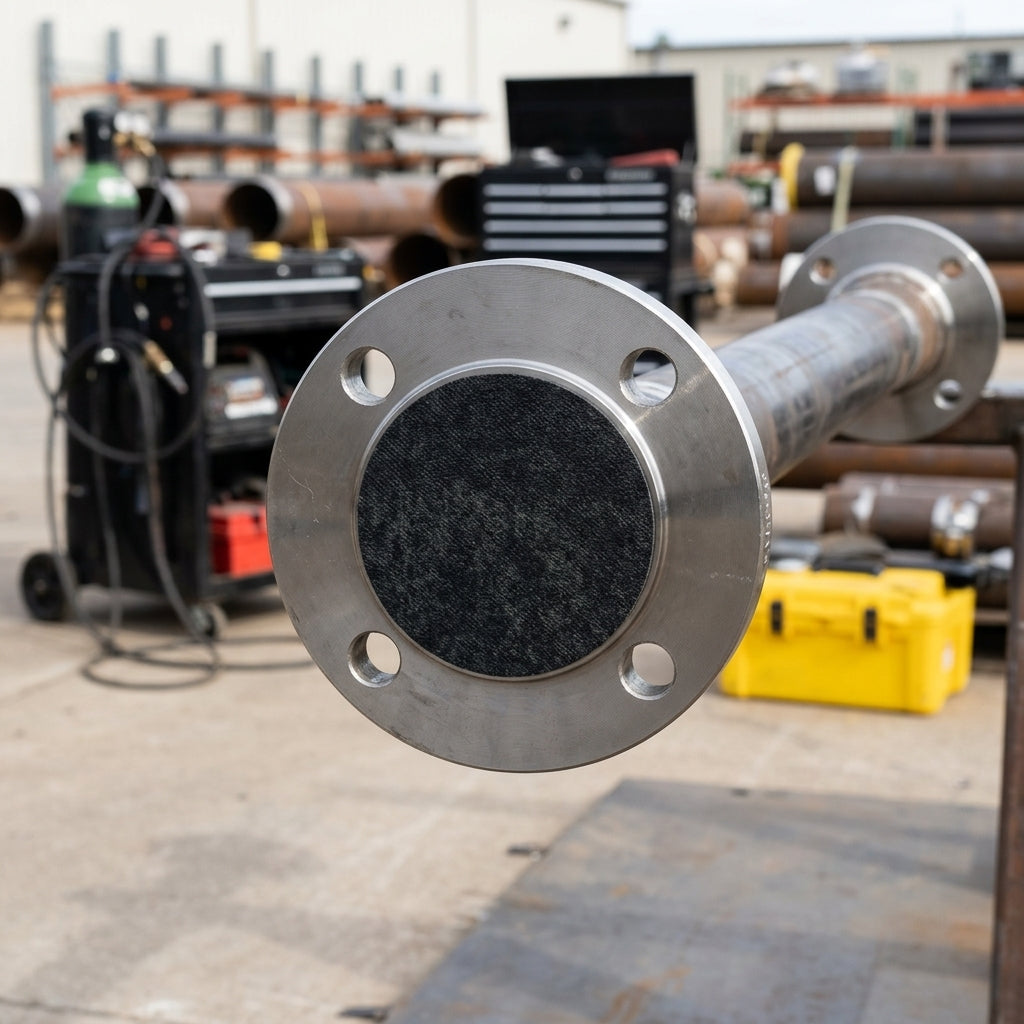

Self-adhesive neoprene rubber disc for full-face protection of 1" ANSI flanges during storage, transit and installation.
These round protectors combine 70 Shore neoprene rubber with a low-tack adhesive backing that secures the disc to the flange face whilst leaving no residue on removal. Designed to shield the gasket sealing surface from contamination, corrosion and mechanical damage in demanding industrial pipework applications.
Key Features
- 70 Shore neoprene rubber construction
- Low-tack adhesive backing — easy removal without residue
- Full-face flange protection
- Resistant to acids, alkalis, oils and petrol
- Operating temperature range −15 °C to +100 °C
Specifications
- Standard: ANSI
- Nominal size: 1"
- Disc diameter: 54 mm
- Material: Neoprene rubber with adhesive backing
Applications
- Oil and gas pipework protection
- Water and chemical processing systems
- Flange storage and transit protection
- Industrial maintenance and installation work
Sizing questions
Which disc size do I need?
Pick the disc for your flange standard and nominal size. The disc diameter is in the title so you can check it against the flange face.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
Does it come off before assembly?
Yes — peel the disc off before the gasket goes in.
