SKU FCC080

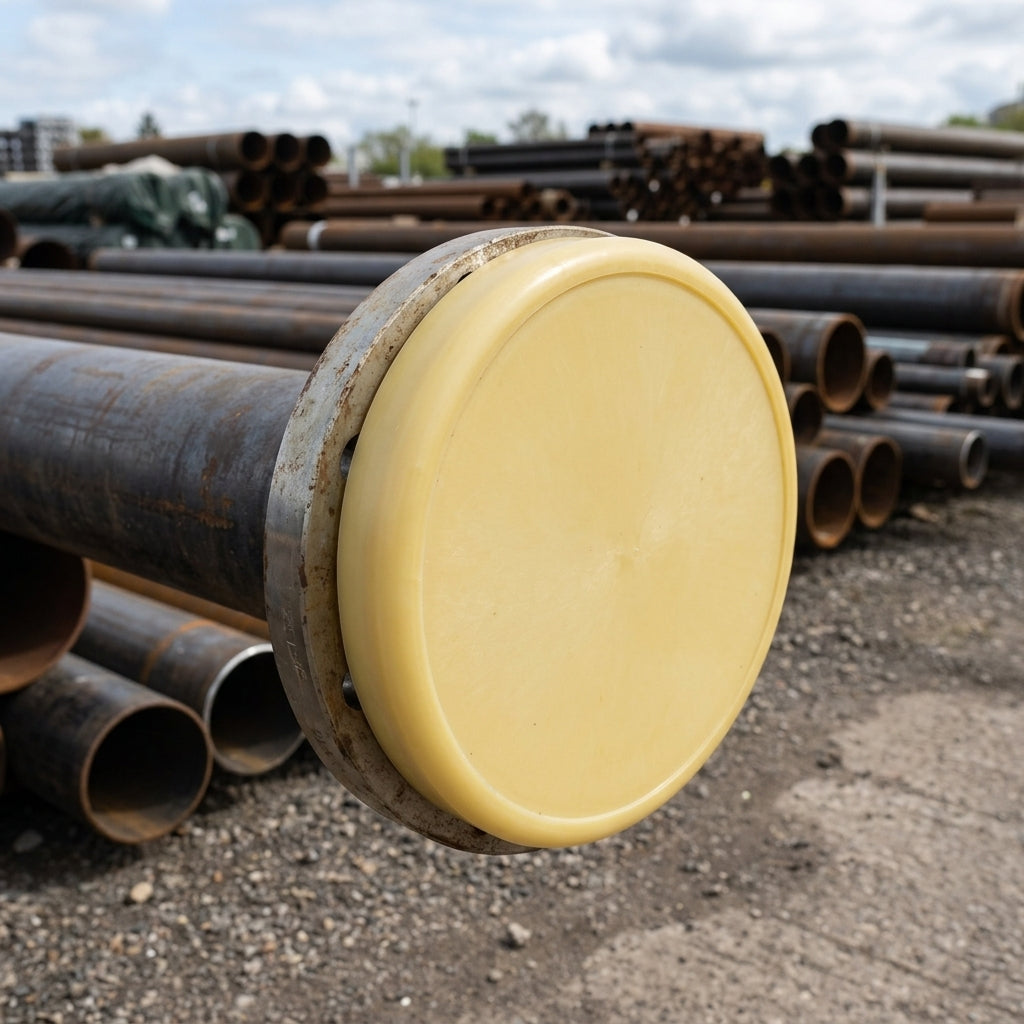

DN 150 DIN Flange Cover Cap - 285mm ID, Polyethylene
Not sure it's the right size? Ask a person.
Product details
Polyethylene flange cover cap designed to protect DN 150 DIN pipe flanges from contamination and damage.
This moulded cap fits over the raised face of a DN 150 flange to shield the gasket sealing surface from dust, moisture and accidental impact during storage, transit and on-site handling. The polyethylene construction offers chemical resistance and durability in demanding industrial environments.
Key Features
- Internal diameter 285mm for secure fit over DN 150 DIN flange faces
- Internal length 19mm accommodates Pressure Series 10 and 16 flanges
- Durable polyethylene resists chemicals, moisture and UV exposure
- Lightweight, easy to handle and store on site
- Prevents gasket face contamination and costly rework
Specifications
- Standard: DIN
- Nominal size: DN 150
- Internal diameter: 285mm
- Internal length: 19mm
- Material: Polyethylene (PE)
- Compatibility: Pressure Series 10, 16
Applications
- Oil and gas pipeline protection during construction and transit
- Water treatment and utility flange sealing
- Manufacturing and process plant maintenance
- Temporary flange face protection during storage and logistics
- On-site pipeline assembly and commissioning
Sizing questions
How do I pick the right cap?
Measure the outside diameter (OD) of the flange. The cap inside diameter (ID) should match it.
Why are there two caps for one size?
Flange outside diameters vary with the pressure class, so some sizes come with more than one cap ID. Measure the OD and pick the ID that matches.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
