SKU FCC006

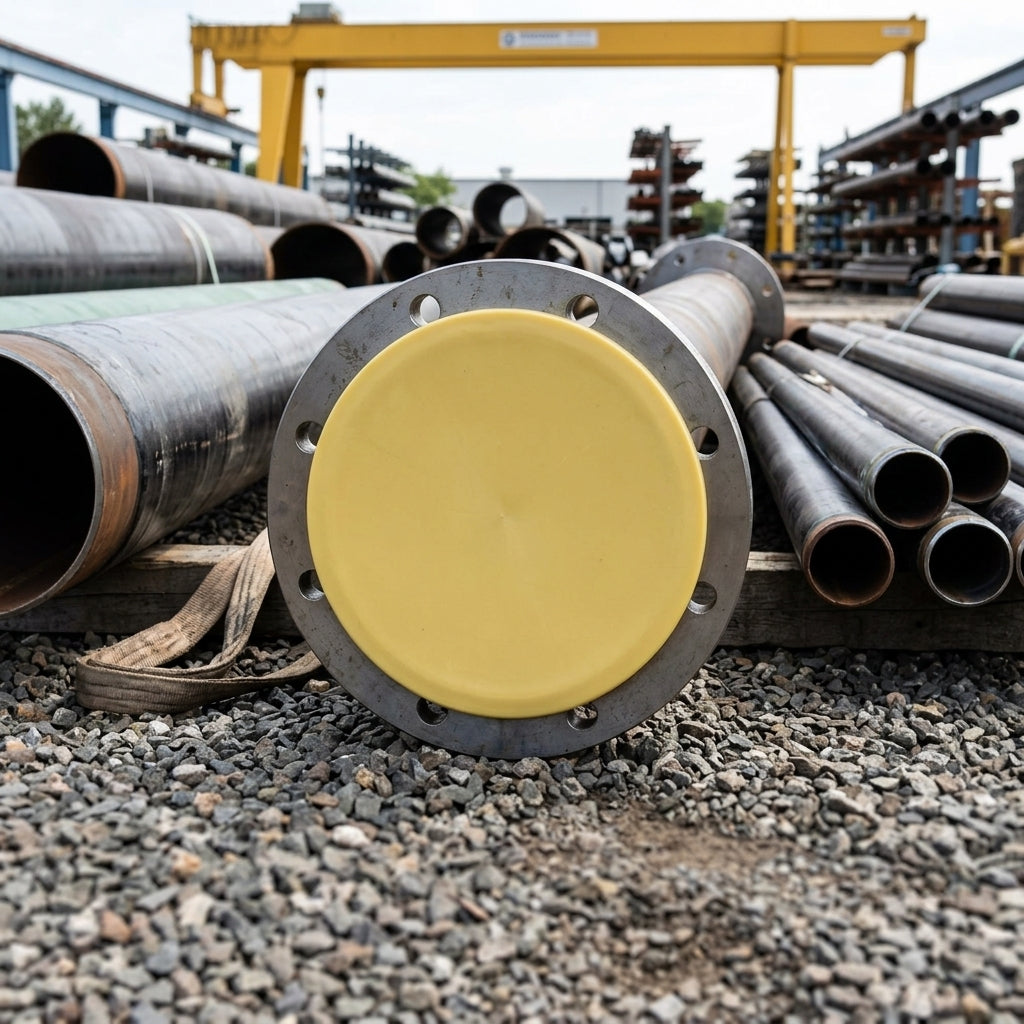

DN 15 DIN Flange Cover Cap – 95mm ID, Polyethylene
Not sure it's the right size? Ask a person.
Product details
Polyethylene cover cap designed to protect DIN flange faces from dirt, moisture and impact damage.
This DN 15 flange cover cap fits snugly over the raised face of a pipe flange, forming a secure seal that guards the critical sealing surface during storage, transport and on-site handling. The durable polyethylene construction resists chemicals and moisture, making it suitable for use across industrial pipework systems in oil and gas, water utilities, plant maintenance and fabrication environments.
Key Features
- Durable polyethylene construction with chemical resistance
- Secure fit over flange face to prevent ingress of dust and moisture
- Lightweight and easy to install and remove
- Suitable for pressure series 10 and 16 flange standards
- Protects gasket sealing surfaces during storage and transit
Specifications
- Standard: DIN
- Nominal size: DN 15
- Internal diameter: 95mm
- Internal length: 12mm
- Material: Polyethylene (PE)
- Pressure series: 10, 16
Applications
- Oil and gas pipeline construction and offshore operations
- Water treatment and utility networks
- Industrial plant pipework and maintenance
- Pipe fabrication and stockholding
- Protection during transit and temporary storage of flanged pipe
Sizing questions
How do I pick the right cap?
Measure the outside diameter (OD) of the flange. The cap inside diameter (ID) should match it.
Why are there two caps for one size?
Flange outside diameters vary with the pressure class, so some sizes come with more than one cap ID. Measure the OD and pick the ID that matches.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
