SKU EDGE037-5M

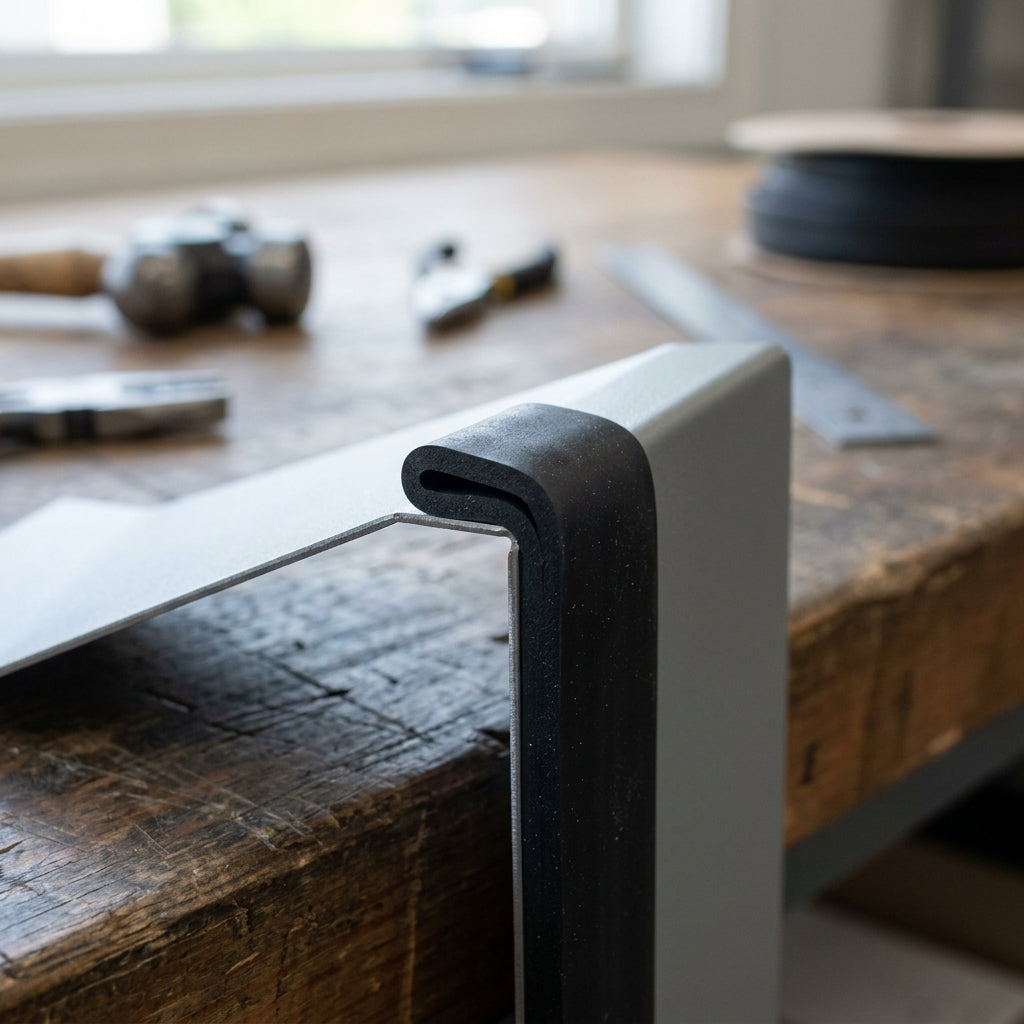

U-Profile Rubber Edge Protector 9x7.4mm for 2-3mm Panels - 5m EPDM
Not sure it's the right trim? Ask a person.
Product details
U Channel Rubber Edge Trim for 2-3mm panels
This EPDM U channel rubber edge trim is designed for 2mm to 3mm panels, providing effective protection for sharp edges. With a 9mm depth and 7.4mm width, it offers a secure grip while maintaining a low profile for versatile applications.
Key Features
- Designed for 2mm - 3mm panel thickness
- 9mm panel depth and 7.4mm width
- 5m roll length for extended use
- Flexible EPDM material for easy installation
- Push-on grip for secure fitting
Specifications
- Profile: U Channel
- Section Size: 9mm x 7.4mm
- Panel Thickness Range: 2mm - 3mm
- Roll Length: 5m
- Material: EPDM
Applications
- Thin sheet metal and light enclosure edging
- Instrument cases and switch panels
- Finishing exposed sheet edges
- Repairs and short installation runs
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
