SKU EDGE037

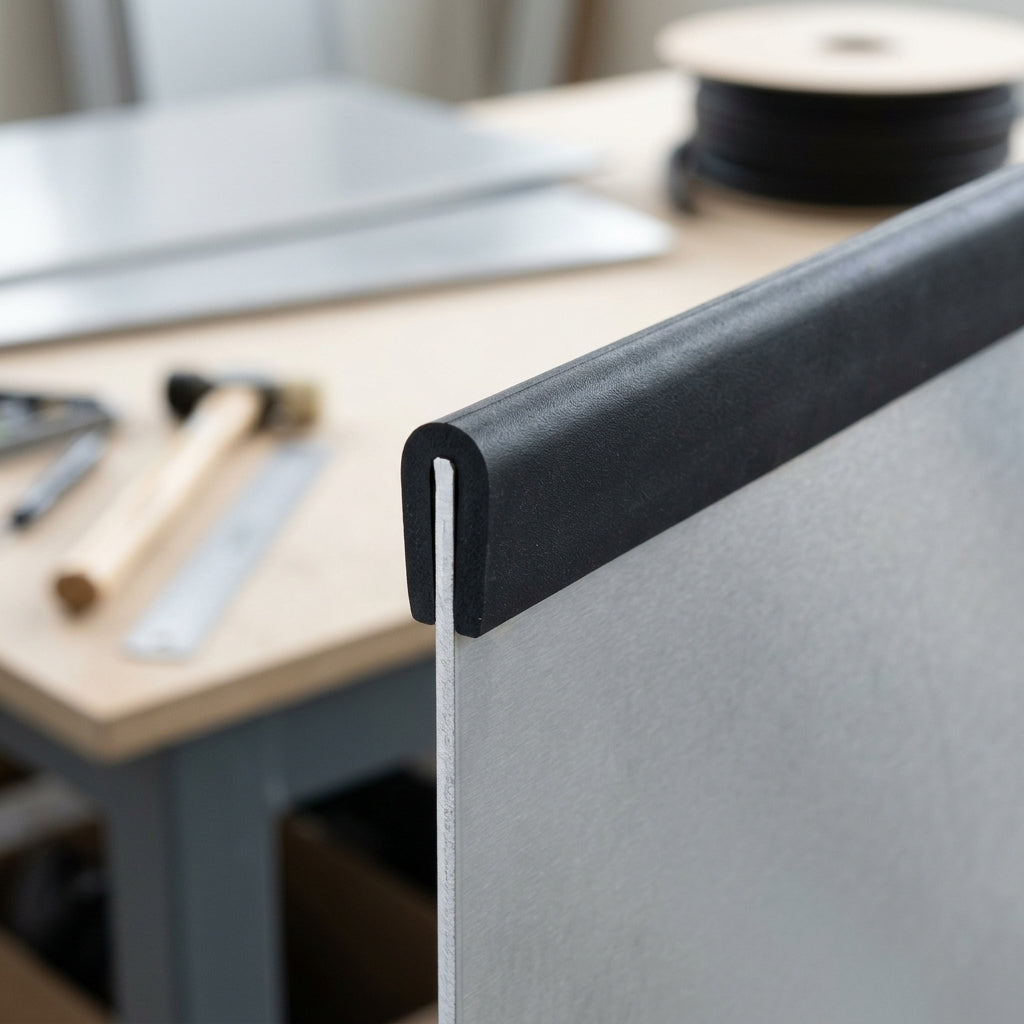

U-Profile Rubber Edge Protector 9x7.4mm for 2-3mm Panels - 50m EPDM
£220.24incl. VAT
Not sure it's the right trim? Ask a person.
Product details
U Channel Rubber Edge Trim for 2-3mm panels.
This 9mm x 7.4mm U channel rubber edge trim is specifically designed to fit panels ranging from 2mm to 3mm in thickness. With a roll length of 50m, it offers a practical solution for protecting exposed edges while ensuring a clean and professional appearance.
Key Features
- Profiled for 2mm - 3mm panel thickness
- Overall depth of 11mm for balanced coverage
- Secure push-on grip for easy installation
- 50m roll length for bulk fitting and production use
- Suitable for various applications including instrument cases and switch panels
Specifications
- Profile: U Channel
- Section Size: 9mm x 7.4mm
- Panel Thickness Range: 2mm - 3mm
- Roll Length: 50m
- Material: EPDM
Applications
- Thin sheet metal and light enclosure edging
- Instrument cases and switch panels
- Exposed sheet edges requiring edge protection
- Production stock and repeat manufacturing
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
