SKU EDGE033-5M
U-Profile Rubber Edge Protector 8x4.4mm for 1-2mm Panels - 5m EPDM
Not sure it's the right trim? Ask a person.
Product details

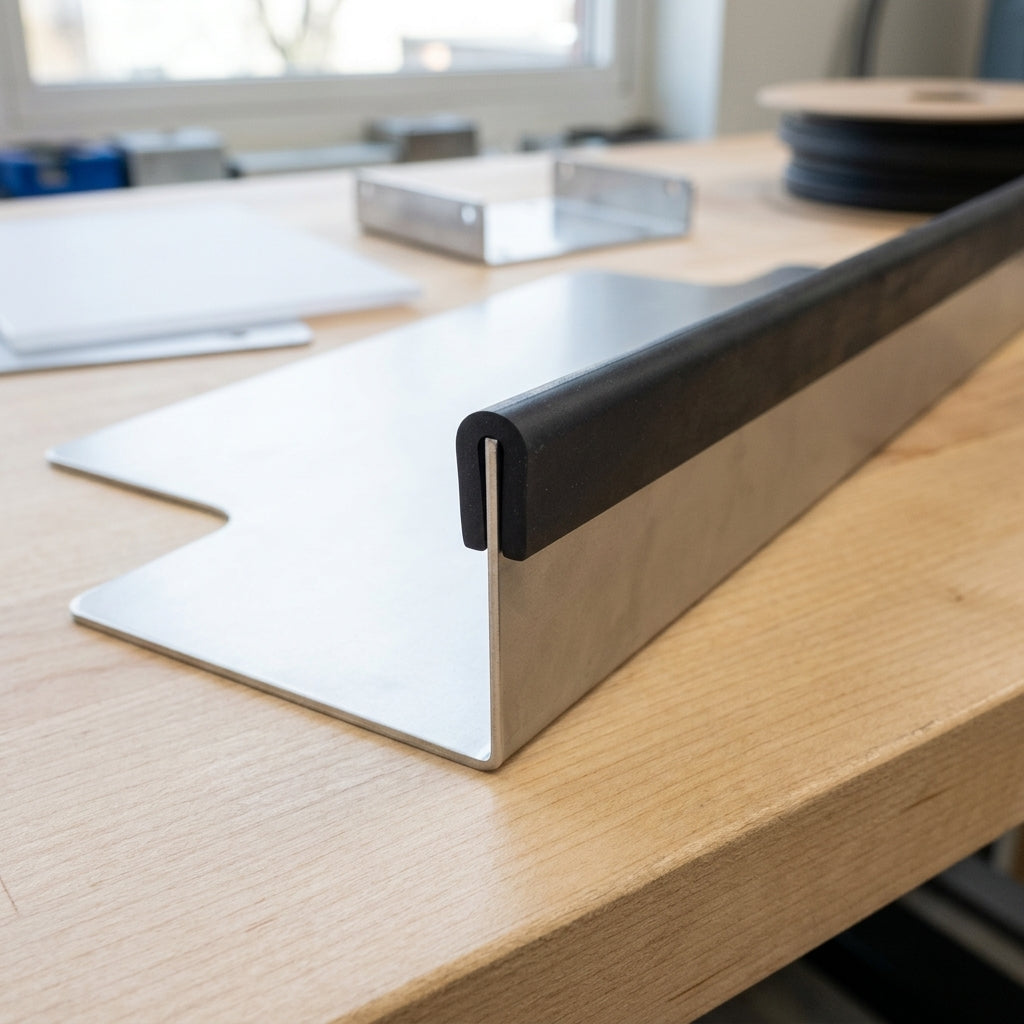

U Channel Rubber Edge Trim for 1-2mm panels.
This 5m roll of EPDM U channel edge trim is specifically designed to fit panels with a thickness of 1mm to 2mm, providing effective edge protection. Its 8mm depth and 4.4mm width ensure a secure grip while maintaining a low profile, making it perfect for finishing and protecting exposed edges.
Key Features
- Fits panel thickness of 1mm - 2mm
- 5m roll length for versatile applications
- U channel design for easy push-on installation
- Flexible EPDM material accommodates movement
- Compact profile for neat finishing
Specifications
- Profile: U Channel
- Section Size: 8mm x 4.4mm
- Panel Thickness Range: 1mm - 2mm
- Roll Length: 5m
- Material: EPDM
Applications
- Thin sheet metal and light enclosure edging
- Instrument cases, switch panels and trim finishing
- Exposed sheet edges needing protection
- Repairs, sample testing and short installation runs
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
