SKU EDGE033-25M

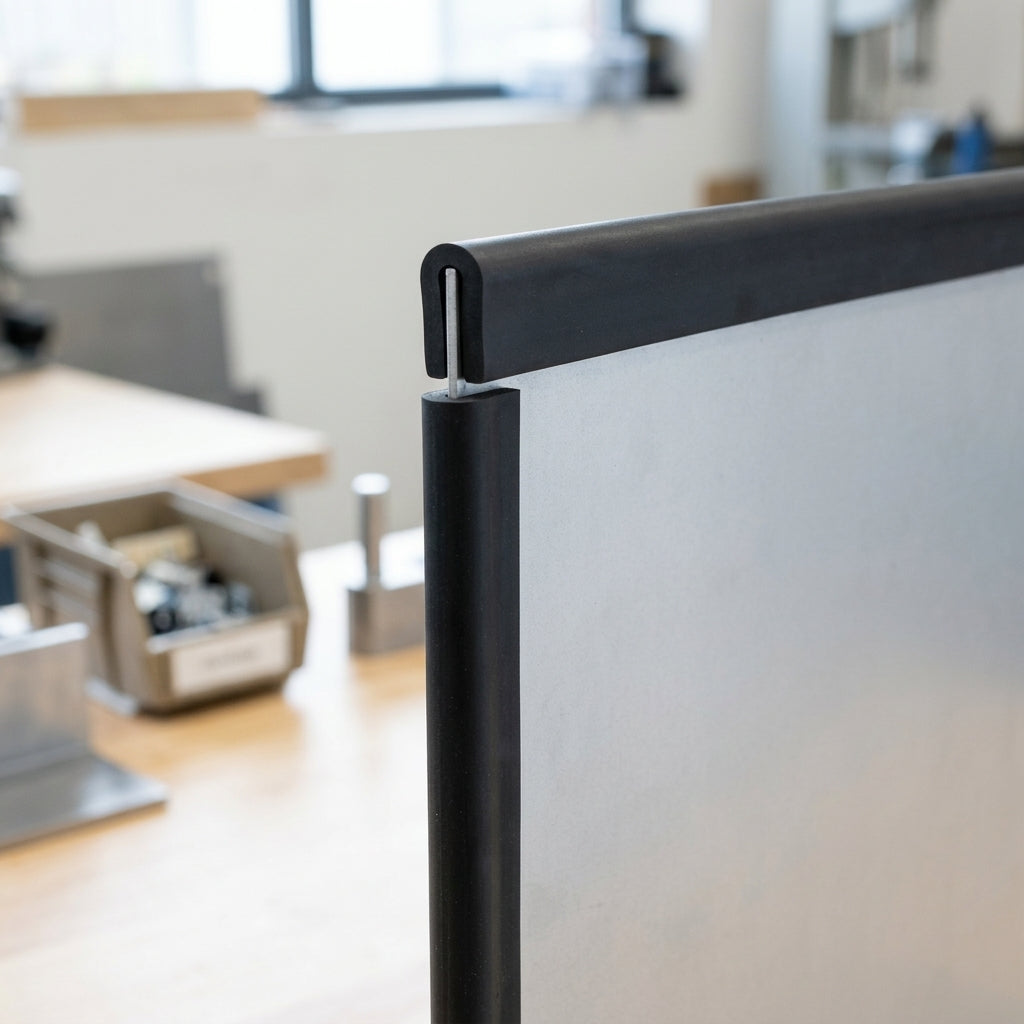

U-Profile Rubber Edge Protector 8x4.4mm for 1-2mm Panels - 25m EPDM
Not sure it's the right trim? Ask a person.
Product details
Durable U channel rubber edge trim for effective edge protection.
This U channel rubber edge trim is designed for 1mm to 2mm panels, featuring an 8mm panel depth and a roll length of 25m. It provides excellent coverage for sharp edges, ensuring safety and a professional finish on various applications.
Key Features
- 8mm x 4.4mm profile for secure fit
- Suitable for 1mm - 2mm panel thickness
- 25m roll length for extensive use
- Push-on grip for easy installation
- Compact design for a clean finish
Specifications
- Profile: U channel
- Section Size: 8mm x 4.4mm
- Panel Thickness Range: 1mm - 2mm
- Roll Length: 25m
- Material: EPDM
Applications
- Thin sheet metal and light enclosure edging
- Instrument cases and switch panels
- Finishing exposed sheet edges
- Batch fabrication and maintenance work
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
