SKU EDGE032-5M

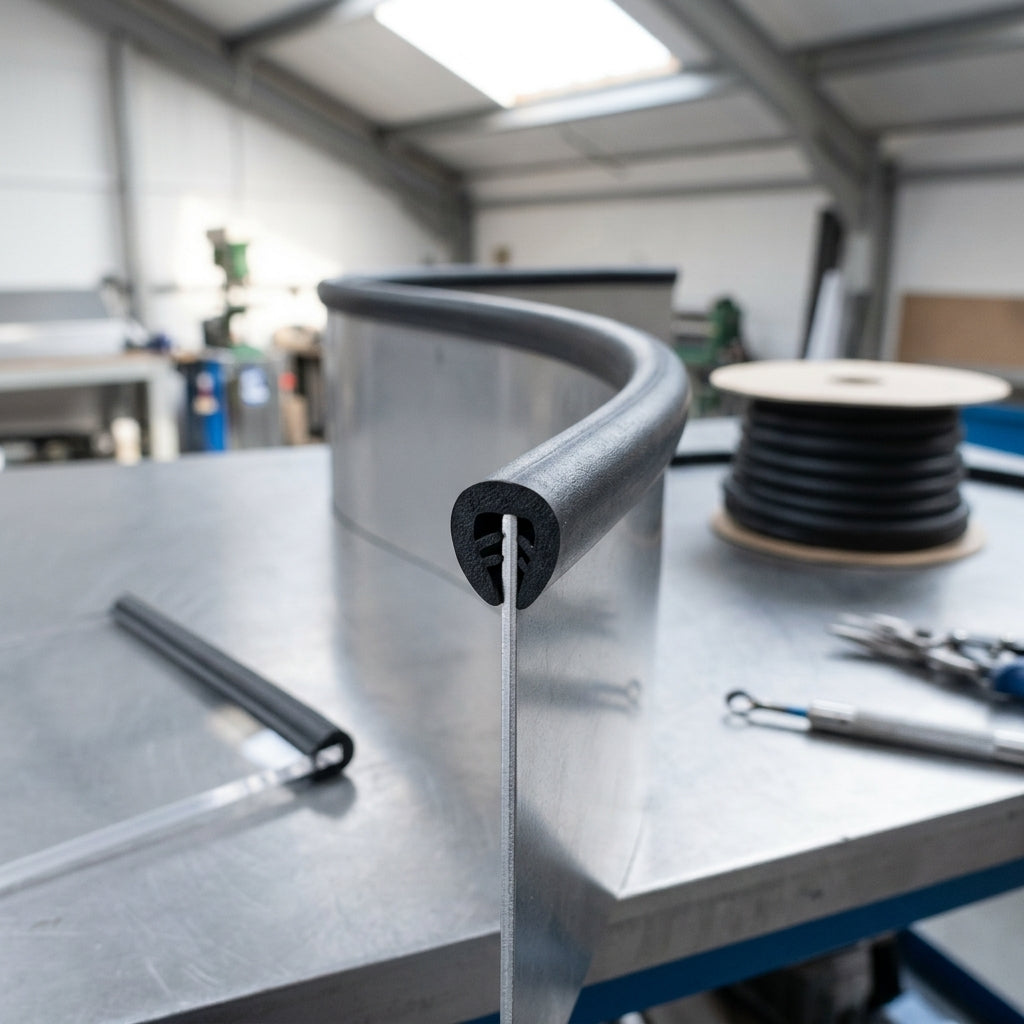

U-Profile Rubber Edge Protector 5.5x9.5mm for 1.6mm Panels - 5m EPDM
Not sure it's the right trim? Ask a person.
Product details
U Channel Rubber Edge Trim for effective panel protection
This U Channel Rubber Edge Trim is designed for 1.6mm panels, featuring a 5.5mm depth and 9.5mm overall depth. The 5m roll length makes it suitable for short runs and prototype builds, providing a cushioned edge coverage that prevents damage to thin sheet metal and enclosure edges.
Key Features
- O profile design for rounded edge coverage
- 5m roll length for flexible application
- Black EPDM material suitable for various environments
- Easy to cut for custom panel lengths
- Lightweight yet durable for effective protection
Specifications
- Profile: U Channel
- Section Size: 5.5mm x 9.5mm
- Panel Thickness Range: 1.6mm
- Roll Length: 5m
- Material: EPDM
Applications
- Thin sheet metal and light enclosure edging
- Instrument cases and switch panels
- Cushioning for fine panel edges
- Repairs and short installation runs
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
