SKU EDGE032

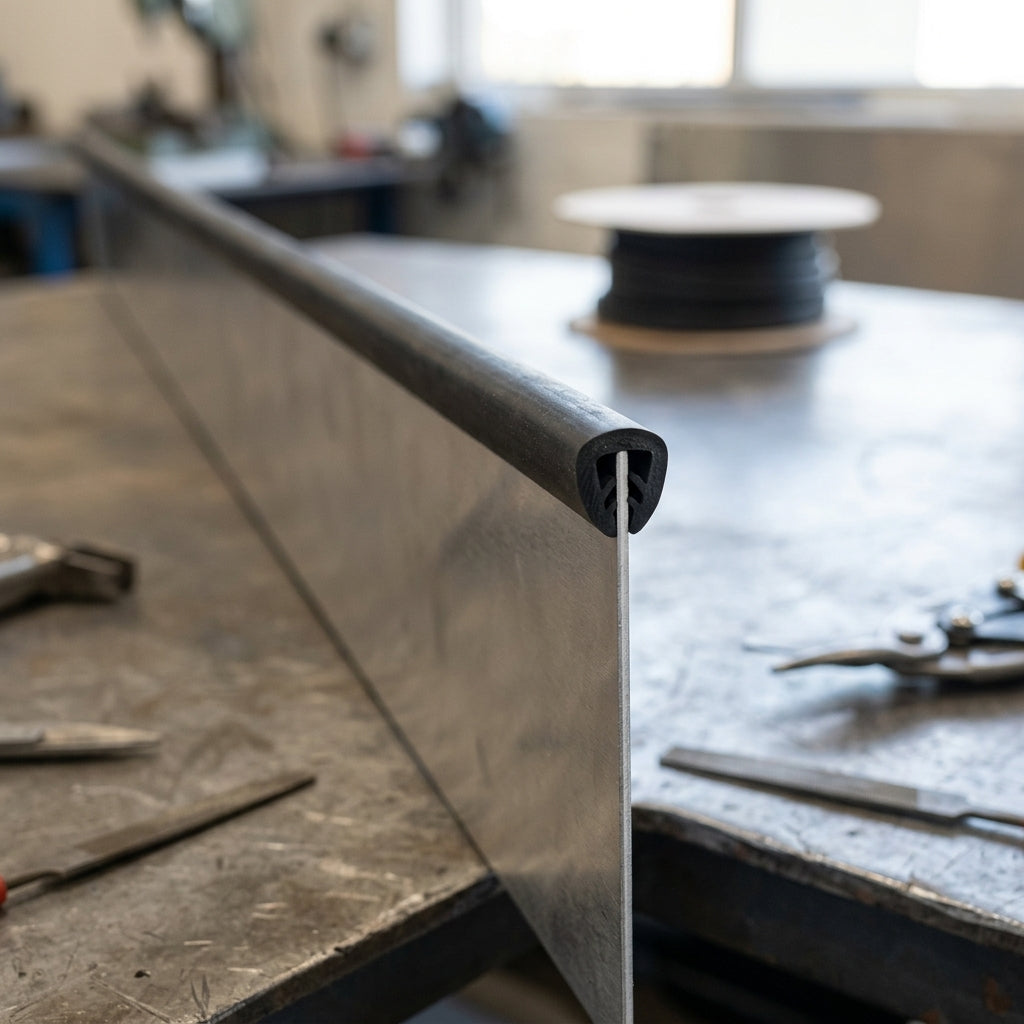

U-Profile Rubber Edge Protector 5.5x9.5mm for 1.6mm Panels - 50m EPDM
£216.80incl. VAT
Not sure it's the right trim? Ask a person.
Product details
U Channel Rubber Edge Trim for 1.6mm Panels
This U Channel Rubber Edge Trim is designed for 1.6mm panels, providing effective cushioning and protection for thin sheet materials. With a 5.5mm depth and 9.5mm overall depth, it is perfect for light trim sections and fine enclosure edges.
Key Features
- O profile design for cushioned edge coverage
- Flexible EPDM material absorbs knocks and reduces wear
- Suitable for continuous production and repeat installations
- Easy to press into place during assembly
Specifications
- Profile: U Channel
- Section Size: 5.5mm x 9.5mm
- Panel Thickness Range: 1.6mm
- Roll Length: 50m
- Material: EPDM
Applications
- Thin sheet metal and light enclosure edging
- Instrument cases and switch panels
- Rounded cushioning on fine panel edges
- Bulk fitting and production stock
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
