SKU EDGE032-1M

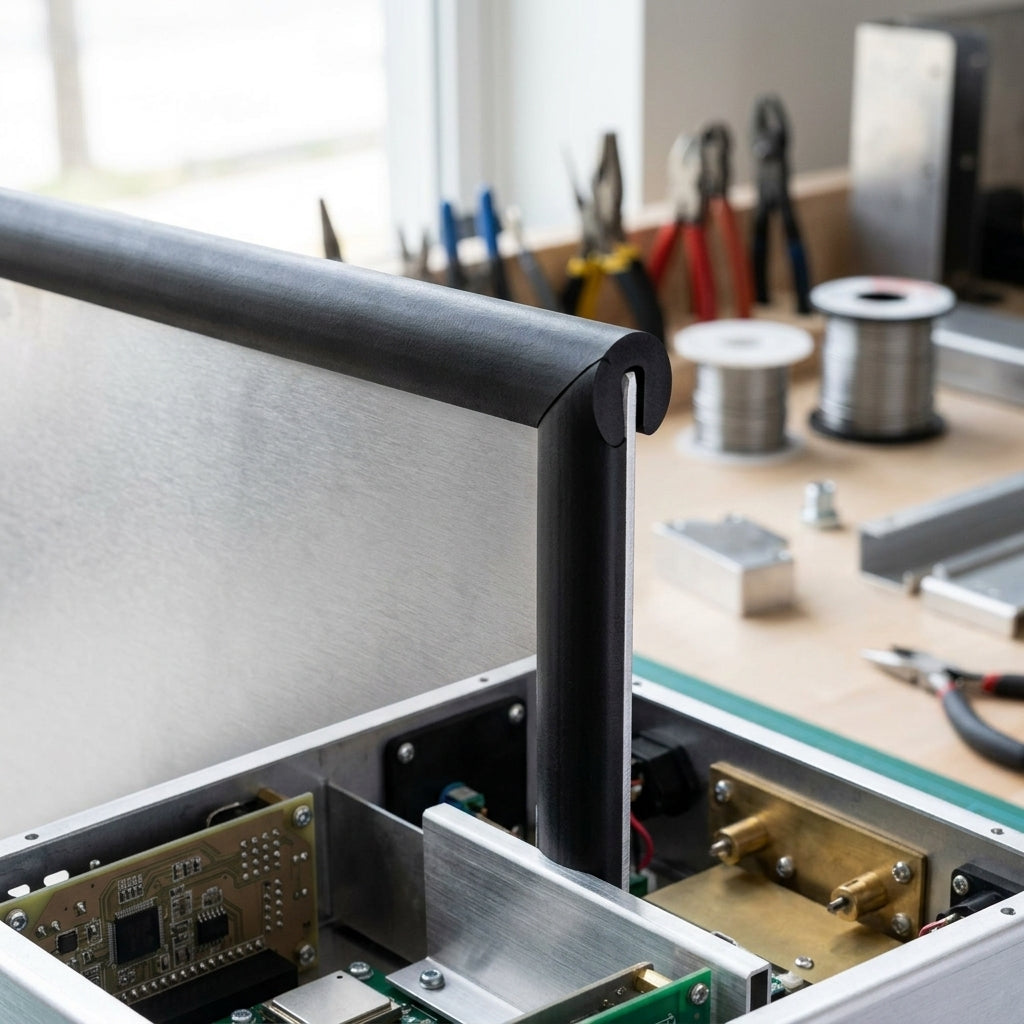

U-Profile Rubber Edge Protector 5.5x9.5mm for 1.6mm Panels - 1m EPDM
Not sure it's the right trim? Ask a person.
Product details
U Channel Rubber Edge Trim for 1.6mm panels.
This edge trim is designed for 1.6mm panels, featuring a 5.5mm depth and 9.5mm overall depth, making it perfect for light trim sections and fine enclosure edges. The O profile shape offers cushioned coverage, ensuring protection against damage while maintaining a sleek appearance.
Key Features
- Flexible EPDM material for easy application
- 1m roll length for convenient use
- Suitable for straight or curved panel runs
- Absorbs knocks and reduces edge wear
- Ideal for repairs and sample testing
Specifications
- Profile: U Channel
- Section Size: 5.5mm x 9.5mm
- Panel Thickness Range: 1.6mm
- Roll Length: 1m
- Material: EPDM
Applications
- Thin sheet metal and light enclosure edging
- Instrument cases and switch panels
- Rounded cushioning on fine panel edges
- Repairs and short installation runs
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
