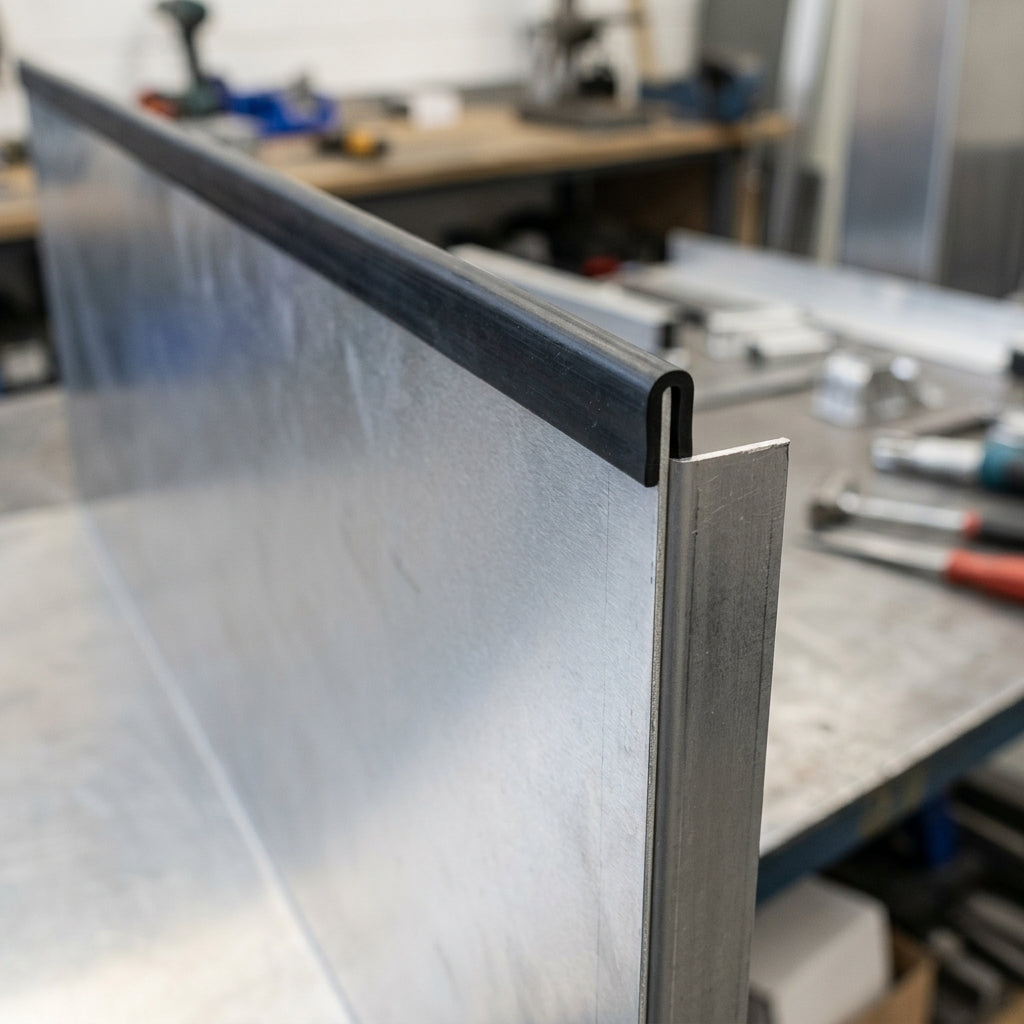

U-Profile Rubber Edge Protector 3x8.4mm for 2-4mm Panels - 5m EPDM
£33.74incl. VAT
Not sure it's the right trim? Ask a person.
Product details
Durable U Channel Rubber Edge Trim for panel protection.
This U Channel Rubber Edge Trim is specifically designed for 2mm to 4mm panels, featuring a 3mm depth and 8.4mm width. The 5m roll length makes it suitable for various applications, providing a secure grip over exposed edges to prevent damage and enhance safety.
Key Features
- U channel design for easy push-on application
- Suitable for 2mm - 4mm panel thickness
- 5m roll length for versatile use
- Durable EPDM material for long-lasting performance
- Deep edge coverage for substantial profiles
Specifications
- Profile: U Channel
- Section Size: 3mm x 8.4mm
- Panel Thickness Range: 2mm - 4mm
- Roll Length: 5m
- Material: EPDM
Applications
- Thin sheet metal and light enclosure edging
- Instrument cases, switch panels, and trim finishing
- Exposed sheet edges needing a push-on U channel strip
- Repairs, sample testing, and short installation runs
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
