SKU EDGE038-1M

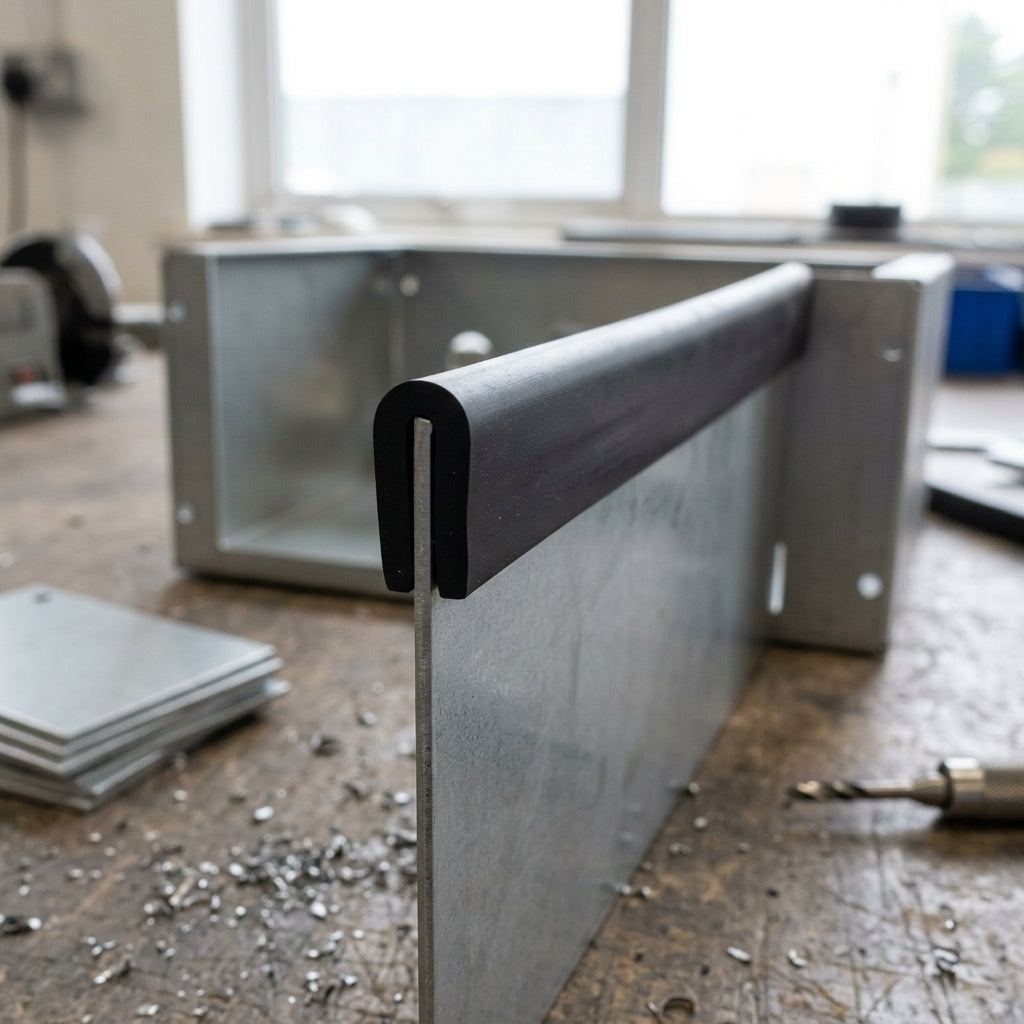

U-Profile Rubber Edge Protector 3x8.4mm for 2-4mm Panels - 1m EPDM
Not sure it's the right trim? Ask a person.
Product details
U Channel Rubber Edge Trim for 2-4mm panels.
This 1m roll of U channel rubber edge trim is designed specifically for 2mm to 4mm panel thicknesses, providing excellent protection for exposed edges. Its robust EPDM material ensures durability in various applications, making it ideal for both commercial and industrial use.
Key Features
- U channel design for secure push-on grip
- Suitable for 2mm - 4mm panel thickness
- 1m roll length for versatile applications
- Durable EPDM material for long service life
- Deep edge coverage for substantial profiles
Specifications
- Profile: U Channel
- Section Size: 3mm x 8.4mm
- Panel Thickness Range: 2mm - 4mm
- Roll Length: 1m
- Material: EPDM
Applications
- Thin sheet metal and light enclosure edging
- Instrument cases, switch panels, and trim finishing
- Exposed sheet edges needing a push-on U channel strip
- Repairs, sample testing, and short installation runs
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
