SKU EDGE036-5M
U-Profile Rubber Edge Protector 19x10.4mm for 2mm Panels - 5m EPDM
£85.36incl. VAT
Not sure it's the right trim? Ask a person.
Product details

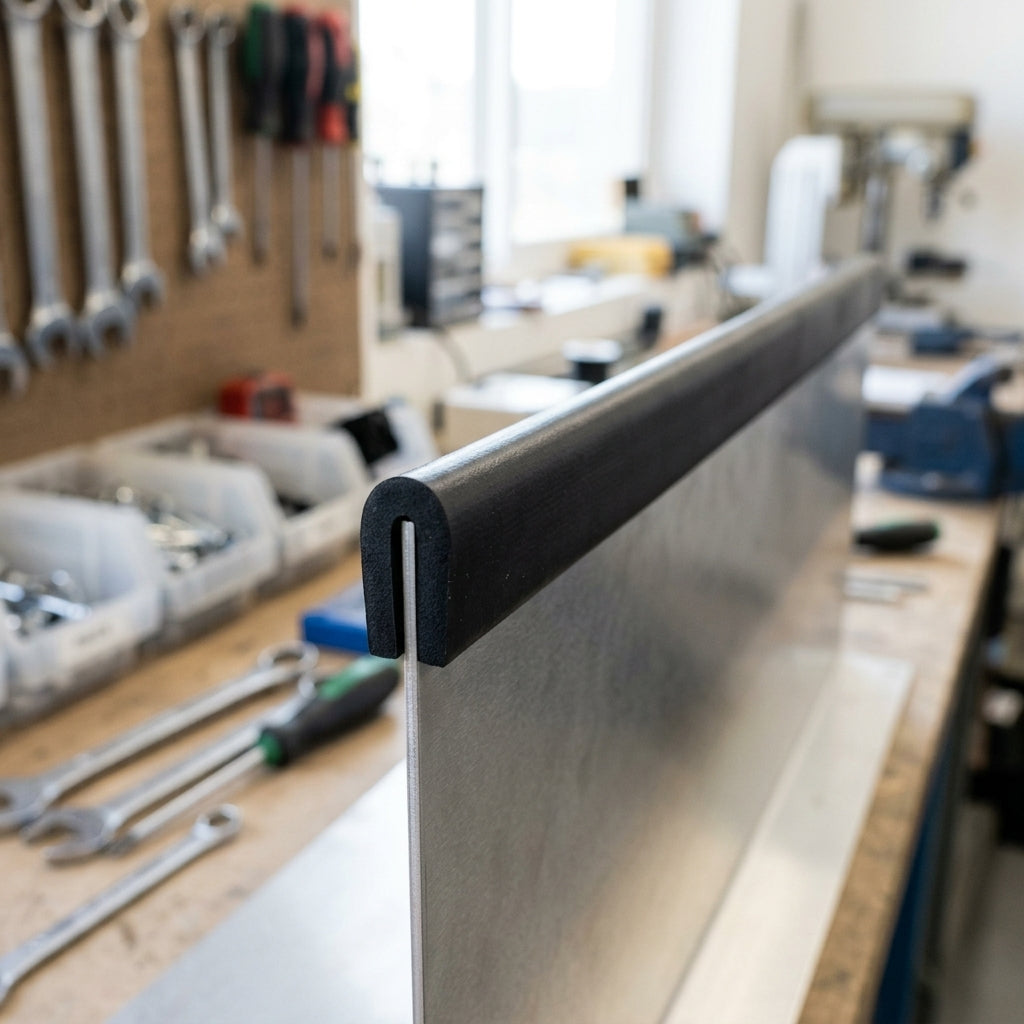

U Channel Rubber Edge Trim for 2mm panels
This 5m roll of U channel rubber edge trim is designed specifically for 2mm panels, featuring a 19mm depth and 10.4mm width. The EPDM material ensures durability against weathering and moisture, making it perfect for protecting exposed edges from damage and wear.
Key Features
- Designed for 2mm panel thickness
- 19mm depth and 10.4mm width
- 5m roll length for versatile applications
- EPDM material for excellent weather resistance
- Secure push-on grip for easy installation
Specifications
- Profile: U Channel
- Section Size: 19mm x 10.4mm
- Panel Thickness Range: 2mm
- Roll Length: 5m
- Material: EPDM
Applications
- Thin sheet metal and light enclosure edging
- Instrument cases and switch panels
- Finishing exposed edges on various panels
- Repairs and short installation runs
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
