SKU EDGE034

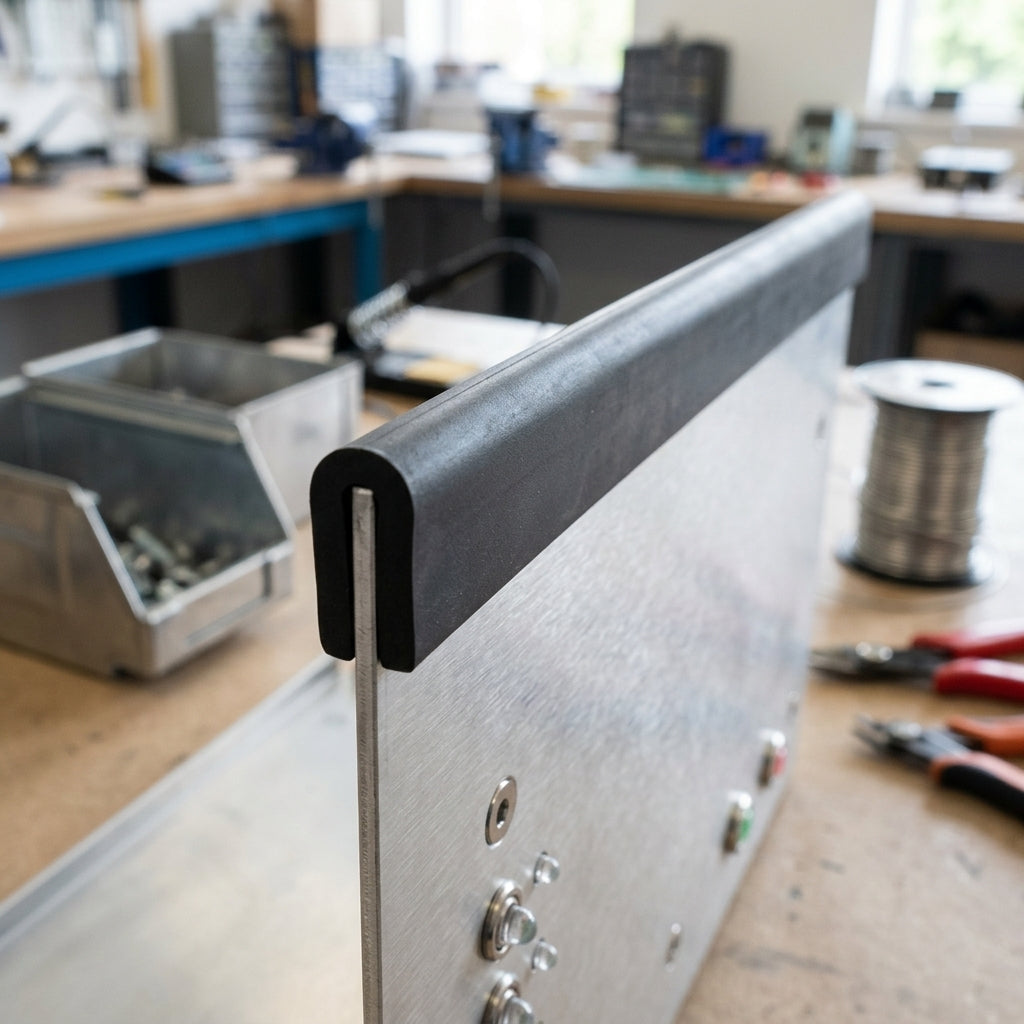

U-Profile Rubber Edge Protector 12x7.6mm for 1-2mm Panels - 50m EPDM
£218.84incl. VAT
Not sure it's the right trim? Ask a person.
Product details
U Channel Rubber Edge Trim for 1-2mm panels
This 12mm x 7.6mm U channel rubber edge trim is designed for panels with a thickness of 1mm to 2mm, providing effective edge protection. With a roll length of 50m, it is suitable for continuous production and various applications, ensuring a secure fit and reducing the risk of damage.
Key Features
- Designed for 1mm - 2mm panel thickness
- 12mm width and 15mm overall depth
- 50m roll length for extensive use
- Reduces vibration noise along panel edges
- Secure push-on grip for easy installation
Specifications
- Profile: U Channel
- Section Size: 12mm x 7.6mm
- Panel Thickness Range: 1mm - 2mm
- Roll Length: 50m
- Material: EPDM
Applications
- Thin sheet metal and light enclosure edging
- Instrument cases and switch panels
- Exposed sheet edges needing protection
- Bulk fitting and production stock
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
