SKU EDGE034-1M
U-Profile Rubber Edge Protector 12x7.6mm for 1-2mm Panels - 1m EPDM
Not sure it's the right trim? Ask a person.
Product details

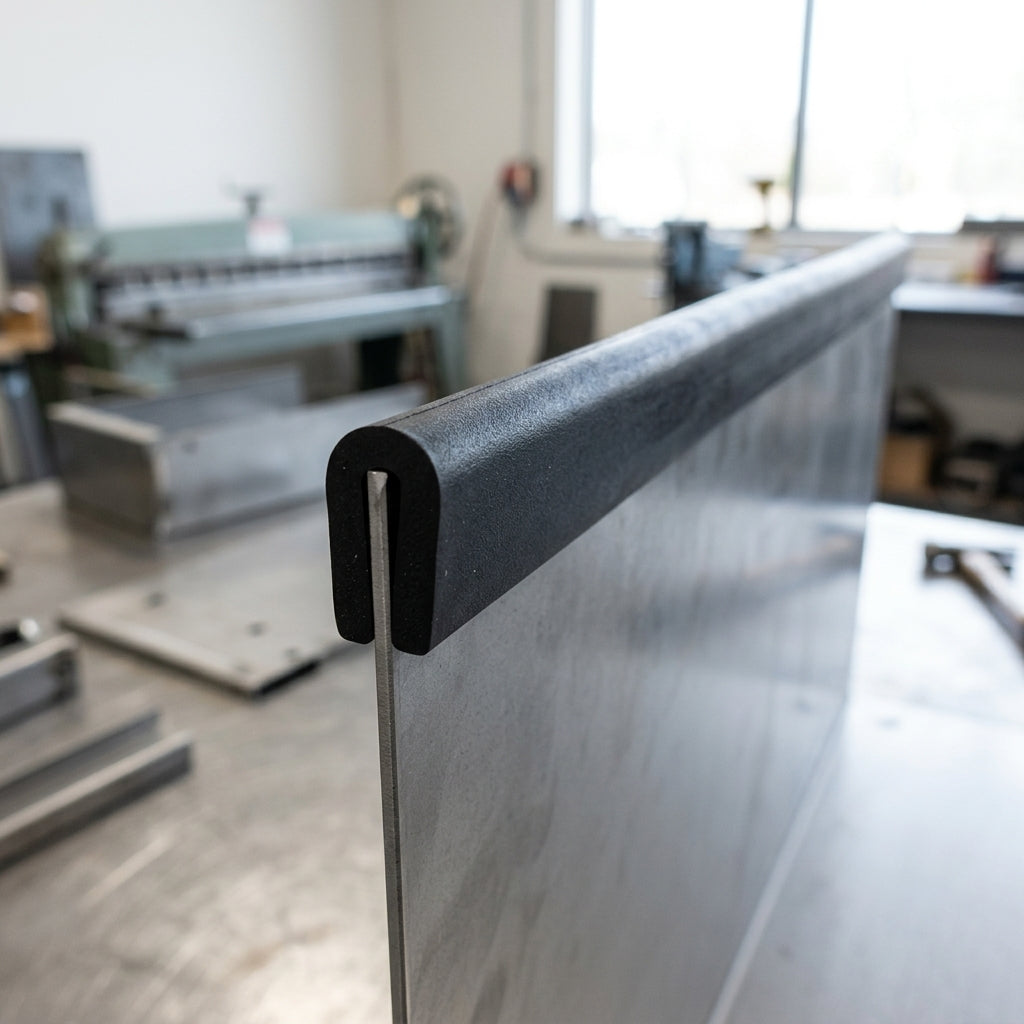

U channel rubber edge trim designed for 1mm-2mm panels.
This 12mm x 7.6mm U channel rubber edge trim is perfect for providing a secure grip around exposed sheet edges. With a roll length of 1m, it is ideal for sample checks, small repairs, and one-off edge finishing tasks, offering effective protection against handling damage and vibration marks.
Key Features
- U channel design for easy push-on application
- Suitable for 1mm to 2mm panel thickness
- 15mm overall depth for enhanced edge coverage
- Made from EPDM for superior weather and ozone resistance
- 1m roll length for versatile usage
Specifications
- Profile: U channel
- Section Size: 12mm x 7.6mm
- Panel Thickness Range: 1mm - 2mm
- Roll Length: 1m
- Material: EPDM
Applications
- Thin sheet metal and light enclosure edging
- Instrument cases and switch panels
- Exposed sheet edges requiring protection
- Repairs and sample testing
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
