SKU EDGE035-5M

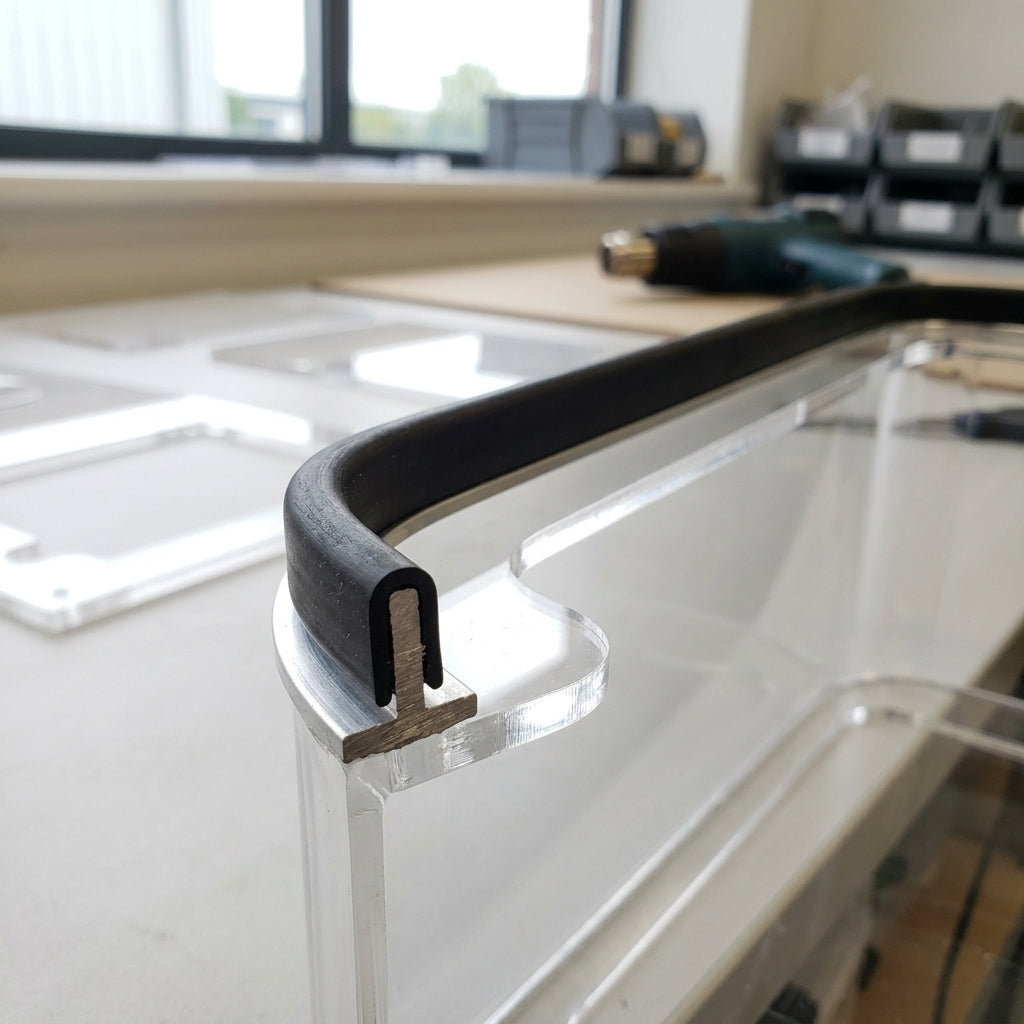

U-Profile Rubber Edge Protector 12x6mm for 1.5-3mm Panels - 5m EPDM
£37.58incl. VAT
Not sure it's the right trim? Ask a person.
Product details
U channel rubber edge trim designed for 1.5-3mm panels.
This 12mm x 6mm U channel rubber edge trim is ideal for providing enclosure finishing for variable gauge panels and sheet edges. With a roll length of 5m, it features a secure push-on grip that wraps around exposed sheet edges, offering deeper protection and a compact finishing look.
Key Features
- Designed for 1.5mm - 3mm panel thickness
- 12mm width with a 15mm overall depth
- 5m roll length for versatile applications
- Flexible EPDM material absorbs knocks and reduces wear
- Provides a clean edge without visible fasteners
Specifications
- Profile: U Channel
- Section Size: 12mm x 6mm
- Panel Thickness Range: 1.5mm - 3mm
- Roll Length: 5m
- Material: EPDM
Applications
- Thin sheet metal and light enclosure edging
- Instrument cases and switch panels
- Exposed sheet edges requiring a push-on strip
- Repairs and short installation runs
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
