SKU EDGE060

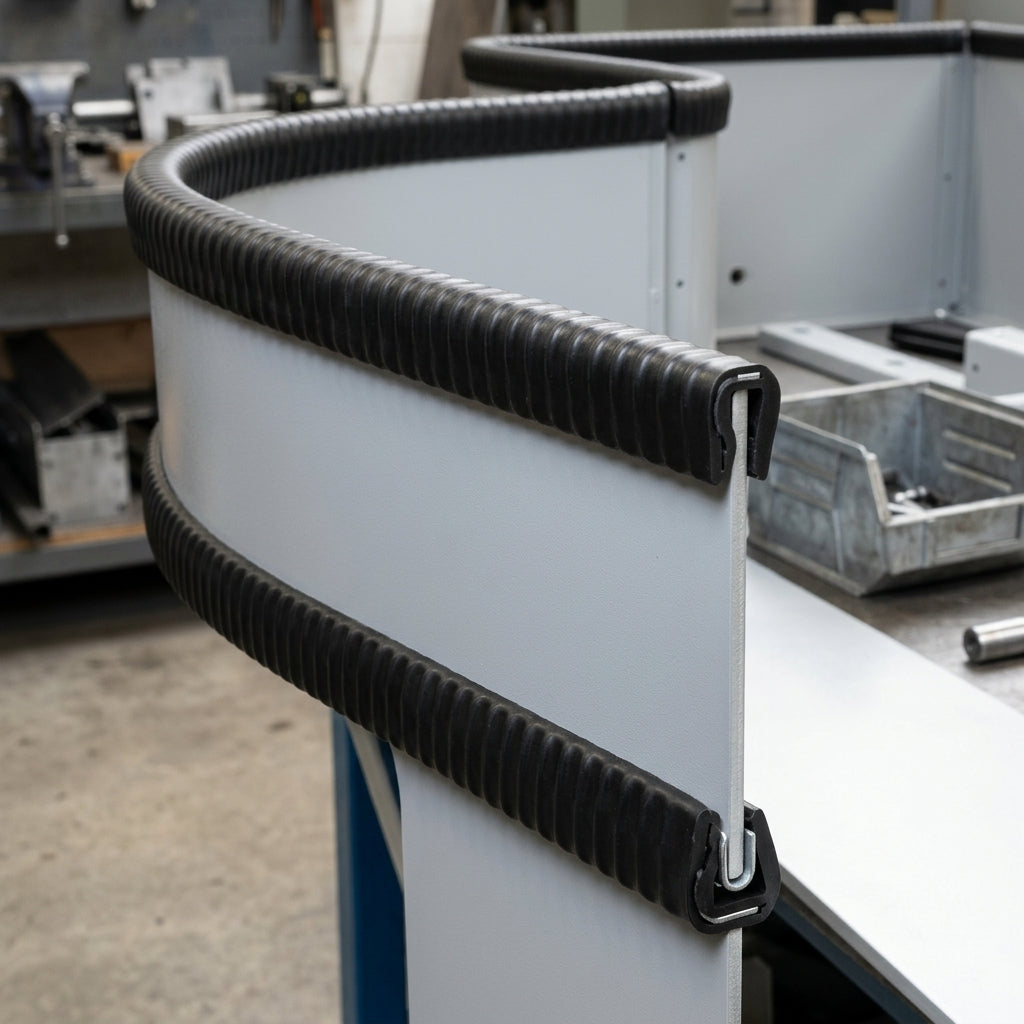

Steel-Reinforced Grip Edge Trim 8x5.5mm for 0.8-1.5mm Panels - 50m PVC
£160.58incl. VAT
Not sure it's the right trim? Ask a person.
Product details
Reinforced Heavy Duty Edge Trim for exceptional edge protection.
This edge trim is designed for heavy-duty applications, combining the flexibility of PVC with the strength of steel reinforcement. Its U-channel profile fits panel thicknesses of 0.8-1.5mm, making it suitable for a variety of demanding environments.
Key Features
- Reinforced with steel for added durability
- U-channel profile for secure fitting
- Suitable for panel thicknesses of 0.8-1.5mm
- Weather resistant against UV rays and moisture
- Supplied in a generous 50m roll
Specifications
- Profile: U-channel
- Section Size: 8mm depth x 5.5mm width
- Panel Thickness Range: 0.8-1.5mm
- Roll Length: 50m
- Material: PVC with steel reinforcement
Applications
- Automotive: Sealing and protecting vehicle panels
- Construction: Edge finishing for glass and sheet metal
- Manufacturing: Reducing vibration and wear in machinery
- Marine: Protecting edges in marine environments
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
My panel is between two sizes — what now?
The grip ranges do not cover every thickness. Send us the thickness and the material and we will tell you which trim holds best, or source one that fits.
5 m or 50 m roll?
It is the same trim on both. The 5 m roll suits a single machine guard or vehicle
