SKU EDGE068

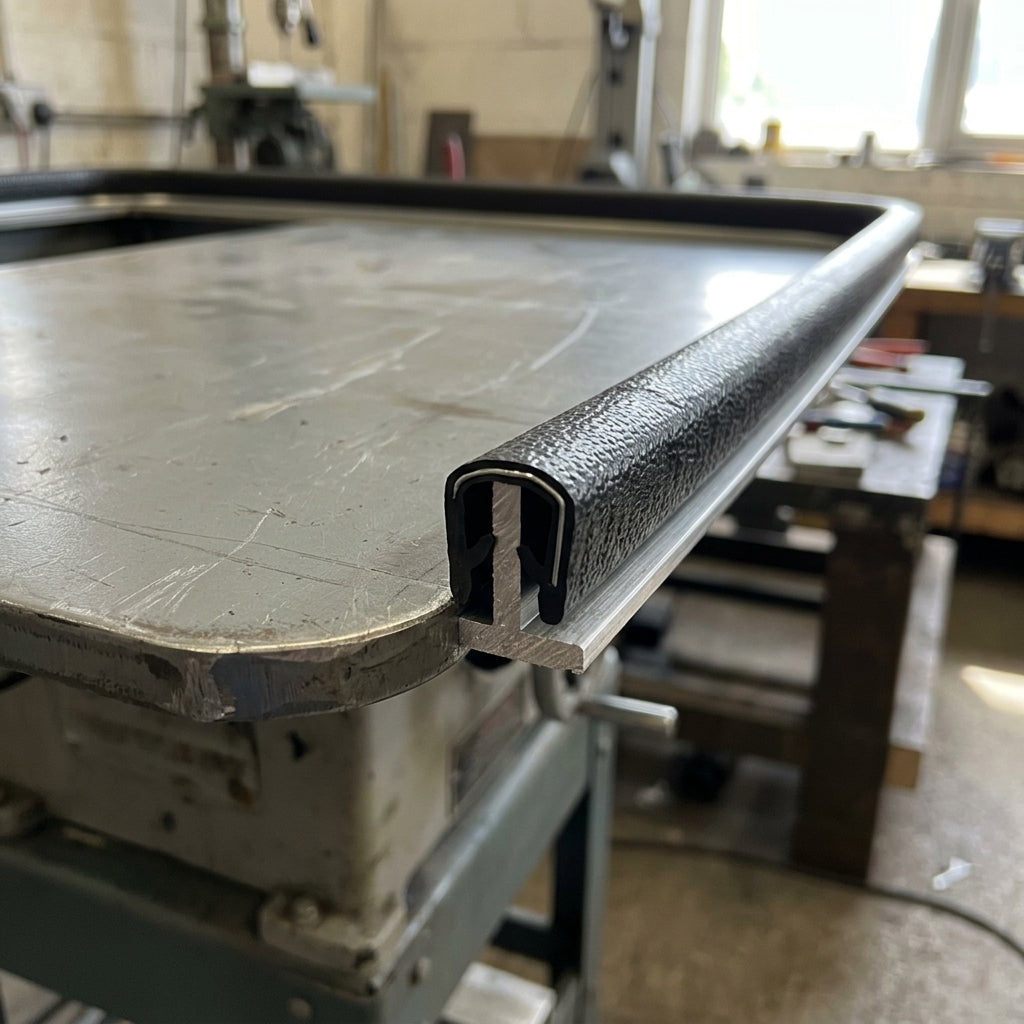

Steel-Reinforced Grip Edge Trim 15x17mm for 10-12mm Panels - 50m PVC
£496.80incl. VAT
Not sure it's the right trim? Ask a person.
Product details
Robust edge protection solution for demanding applications.
This reinforced edge trim is designed for heavy-duty use, combining the flexibility of PVC with the strength of steel reinforcement. Ideal for panel thicknesses of 10-12mm, it is perfect for various industrial and commercial applications.
Key Features
- U-channel profile for secure fit
- Reinforced with steel for added durability
- Weather resistant against UV rays and moisture
- Ample coverage with 50m roll length
- Versatile for multiple applications
Specifications
- Profile: U-channel
- Section Size: 15mm depth x 17mm width
- Panel Thickness Range: 10-12mm
- Roll Length: 50m
- Material: PVC with steel reinforcement
Applications
- Automotive: Sealing and protecting vehicle panels
- Construction: Edge finishing for glass and sheet metal
- Manufacturing: Reducing vibration and wear in machinery
- Marine: Protecting edges in marine environments
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
My panel is between two sizes — what now?
The grip ranges do not cover every thickness. Send us the thickness and the material and we will tell you which trim holds best, or source one that fits.
5 m or 50 m roll?
It is the same trim on both. The 5 m roll suits a single machine guard or vehicle
