SKU EDGE062
Steel-Reinforced Grip Edge Trim 14x9.5mm for 1-3mm Panels - 50m PVC
Not sure it's the right trim? Ask a person.
Product details
Durable edge protection solution for various applications.

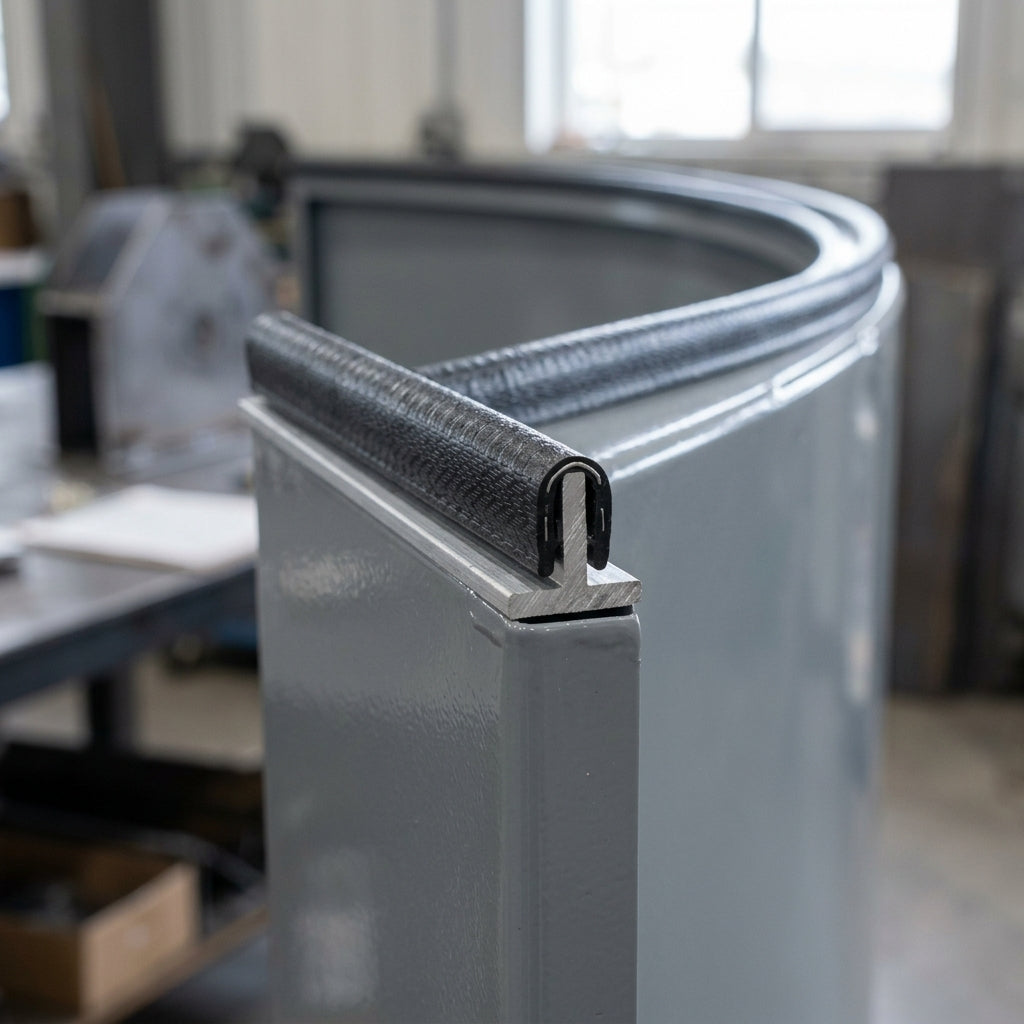

This reinforced edge trim is designed for heavy-duty edge protection, combining PVC with steel reinforcement for exceptional durability. With a U-channel profile that fits panel thicknesses of 1-3mm, it is perfect for industrial and commercial settings, supplied in a generous 50m roll for extensive coverage.
Key Features
- U-channel profile for secure fit over panel edges
- Reinforced with steel for added strength
- Compatible with panel thicknesses of 1-3mm
- Weather-resistant PVC construction
- 50m roll for large-scale projects
Specifications
- Profile: U-channel
- Section Size: 14mm depth x 9.5mm width
- Panel Thickness Range: 1-3mm
- Roll Length: 50m
- Material: PVC with steel reinforcement
Applications
- Automotive: Sealing and protecting vehicle panels
- Construction: Edge finishing for glass and sheet metal
- Manufacturing: Reducing vibration and wear in machinery
- Marine: Protecting edges in marine environments
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
My panel is between two sizes — what now?
The grip ranges do not cover every thickness. Send us the thickness and the material and we will tell you which trim holds best, or source one that fits.
5 m or 50 m roll?
It is the same trim on both. The 5 m roll suits a single machine guard or vehicle
