SKU EDGE015

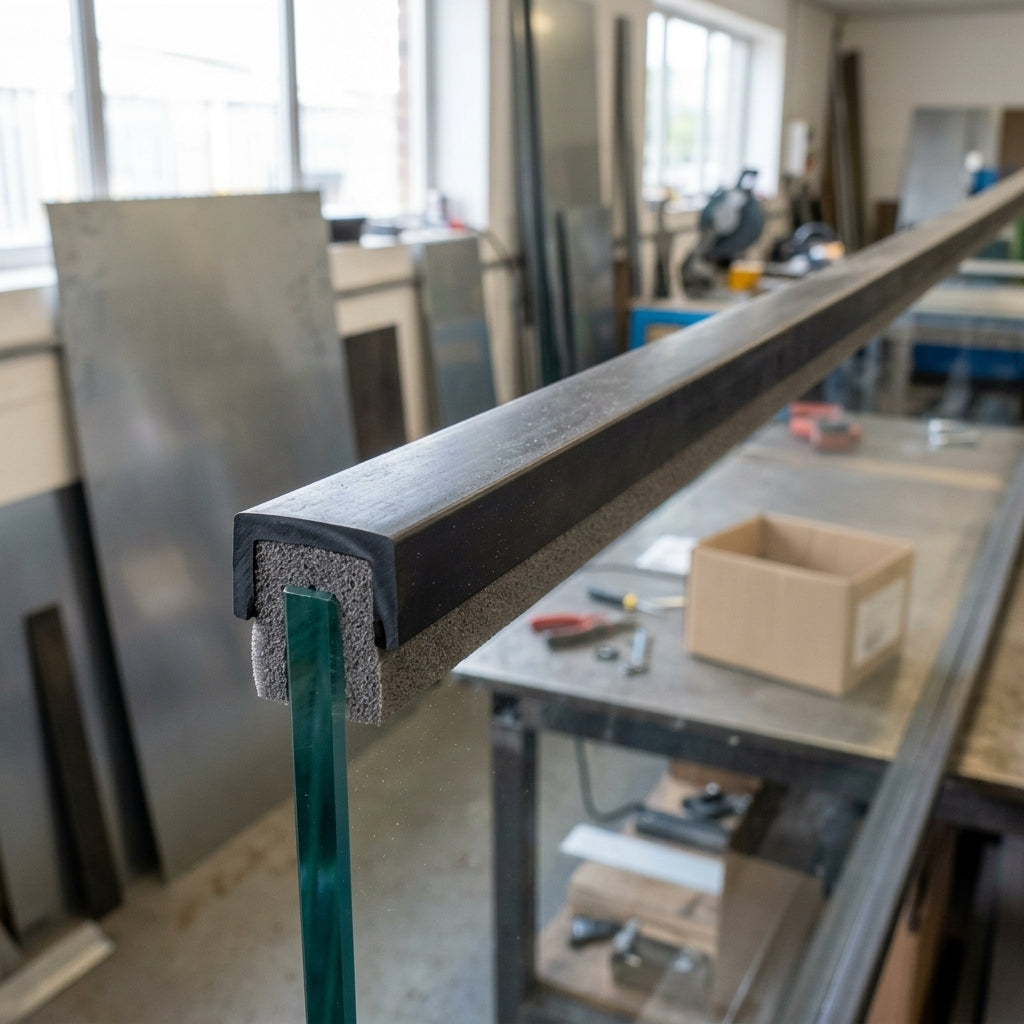

Square Rubber Edge Protector 9x25mm for 19mm Panels - 30m EPDM
£185.90incl. VAT
Not sure it's the right trim? Ask a person.
Product details
Durable square channel rubber edge trim designed for 19mm panels.
This 9mm x 25mm square channel rubber edge trim is specifically formed for 19mm panels, providing excellent edge protection and a tidy finish. With a roll length of 30m, it is perfect for both production batches and workshop fitting, ensuring that edges are well-protected from damage and wear.
Key Features
- Designed for 19mm panel thickness
- Roll length of 30m for extensive use
- Black EPDM material for durability
- Square channel profile for a secure fit
- Ideal for heavy-duty capping applications
Specifications
- Profile: Square Channel
- Section Size: 9mm x 25mm
- Panel Thickness Range: 19mm
- Roll Length: 30m
- Material: EPDM
Applications
- Thicker panels and boards
- Vehicle and trailer bodywork edges
- Batch fabrication and site work
- Planned maintenance tasks
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
