SKU EDGE015-1M

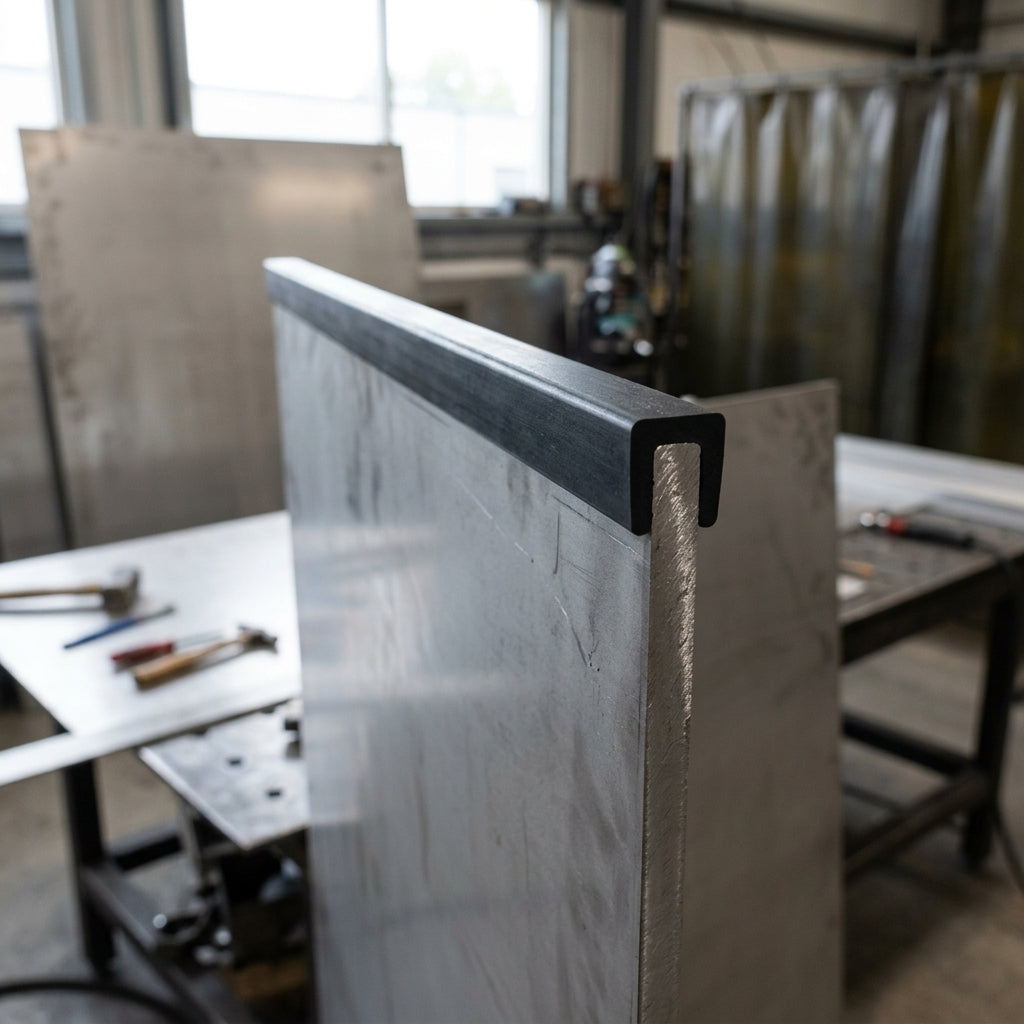

Square Rubber Edge Protector 9x25mm for 19mm Panels - 1m EPDM
Not sure it's the right trim? Ask a person.
Product details
Durable square channel rubber edge trim for industrial applications.
This 9mm x 25mm square channel rubber edge trim is designed for 19mm panels, providing a reliable solution for thick boards and edge finishing tasks. With a roll length of 1m, it offers an effective way to protect edges from damage while enhancing visual appeal.
Key Features
- Designed for 19mm panel thickness
- 9mm depth and 25mm width for robust coverage
- 1m roll length for versatile applications
- Reduces vibration noise along panel edges
- Easy hand fitting for quick installations
Specifications
- Profile: Square Channel
- Section Size: 9mm x 25mm
- Panel Thickness Range: 19mm
- Roll Length: 1m
- Material: EPDM
Applications
- Thicker panels and boards
- Vehicle and trailer bodywork edges
- Straight panel edges needing a square channel finish
- Repairs and sample testing
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
