SKU EDGE007-1M

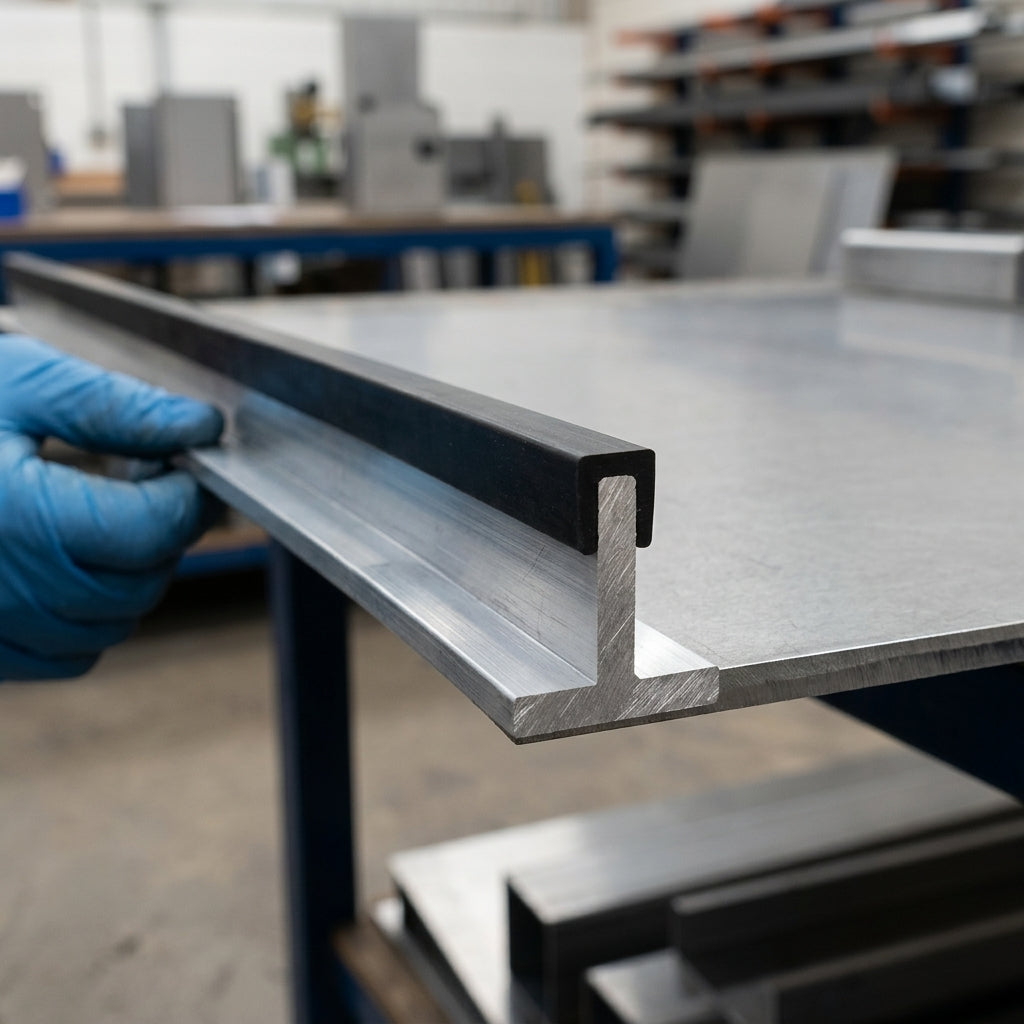

Square Rubber Edge Protector 8x10mm for 6mm Panels - 1m EPDM
Not sure it's the right trim? Ask a person.
Product details
Durable square channel rubber edge trim for 6mm panels.
This 1m roll of EPDM square channel rubber edge trim is designed for 6mm panels, providing a clean finish while protecting edges from damage. Its balanced depth ensures effective coverage without excessive bulk, making it suitable for various applications.
Key Features
- Designed for 6mm panel thickness
- 8mm width and 10mm overall depth
- 1m roll length for versatile use
- Reduces sharp edges and protects against handling damage
- Helps dampen vibration noise along panel edges
Specifications
- Profile: Square Channel
- Section Size: 8mm x 10mm
- Panel Thickness Range: 6mm
- Roll Length: 1m
- Material: EPDM
Applications
- Fabricated panels and machinery guards
- Commercial equipment edges
- Workshop assemblies
- Repairs and sample testing
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
