SKU EDGE002-5M
Square Rubber Edge Protector 7x10mm for 3mm Panels - 5m EPDM
Not sure it's the right trim? Ask a person.
Product details

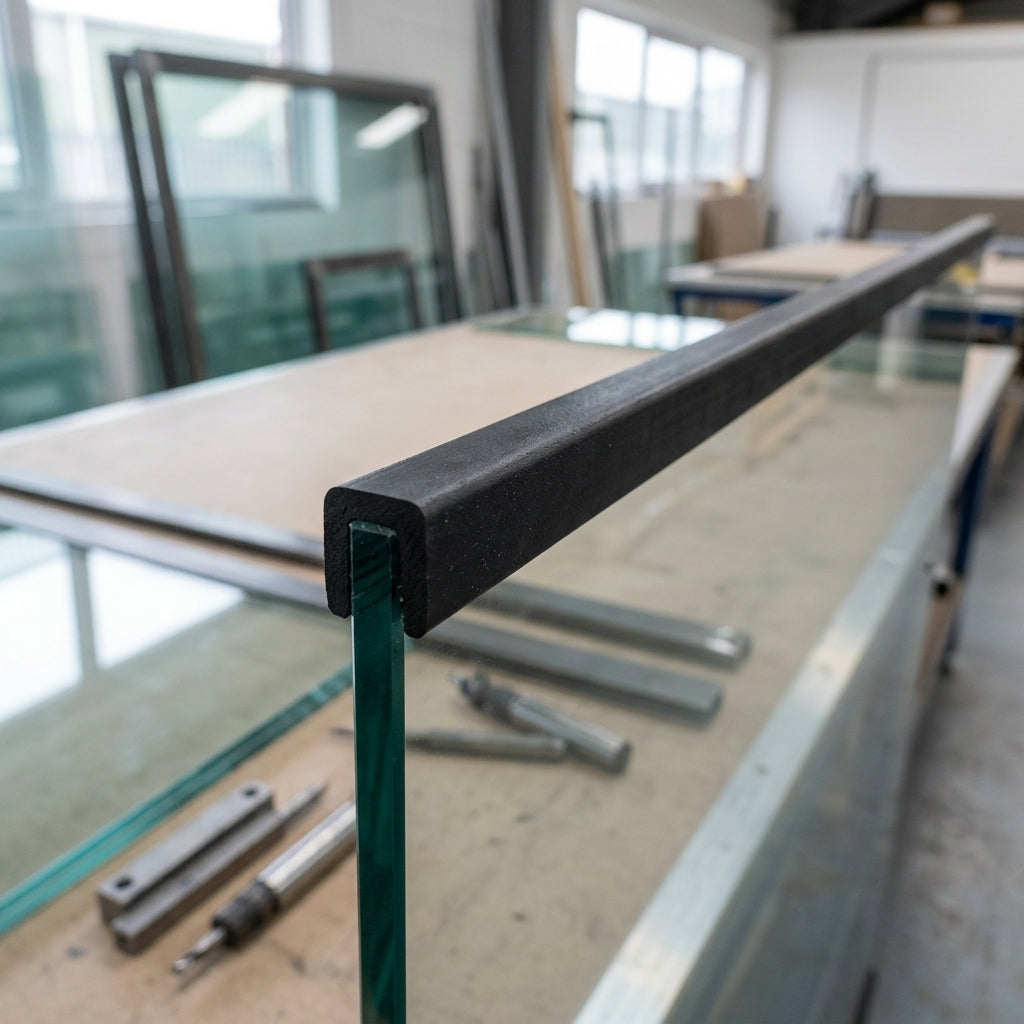

Square channel rubber edge trim designed for 3mm panels.
This 5m roll of black EPDM square channel rubber edge trim is specifically selected for 3mm panels, featuring a 7mm panel depth and 10mm overall depth. It provides an effective finishing solution for general sheet metal, access covers, and light fabricated panels, ensuring a tidy appearance while protecting edges from damage.
Key Features
- 7mm x 10mm square channel profile
- Designed for 3mm panel thickness
- 5m roll length for versatile applications
- Durable EPDM material for long service life
- Easy hand fitting for quick installations
Specifications
- Profile: Square Channel
- Section Size: 7mm x 10mm
- Panel Thickness Range: 3mm
- Roll Length: 5m
- Material: EPDM
Applications
- Fabricated panels and access covers
- Machinery guards and commercial equipment
- Repairs and sample testing
- Short installation runs
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
