SKU EDGE006

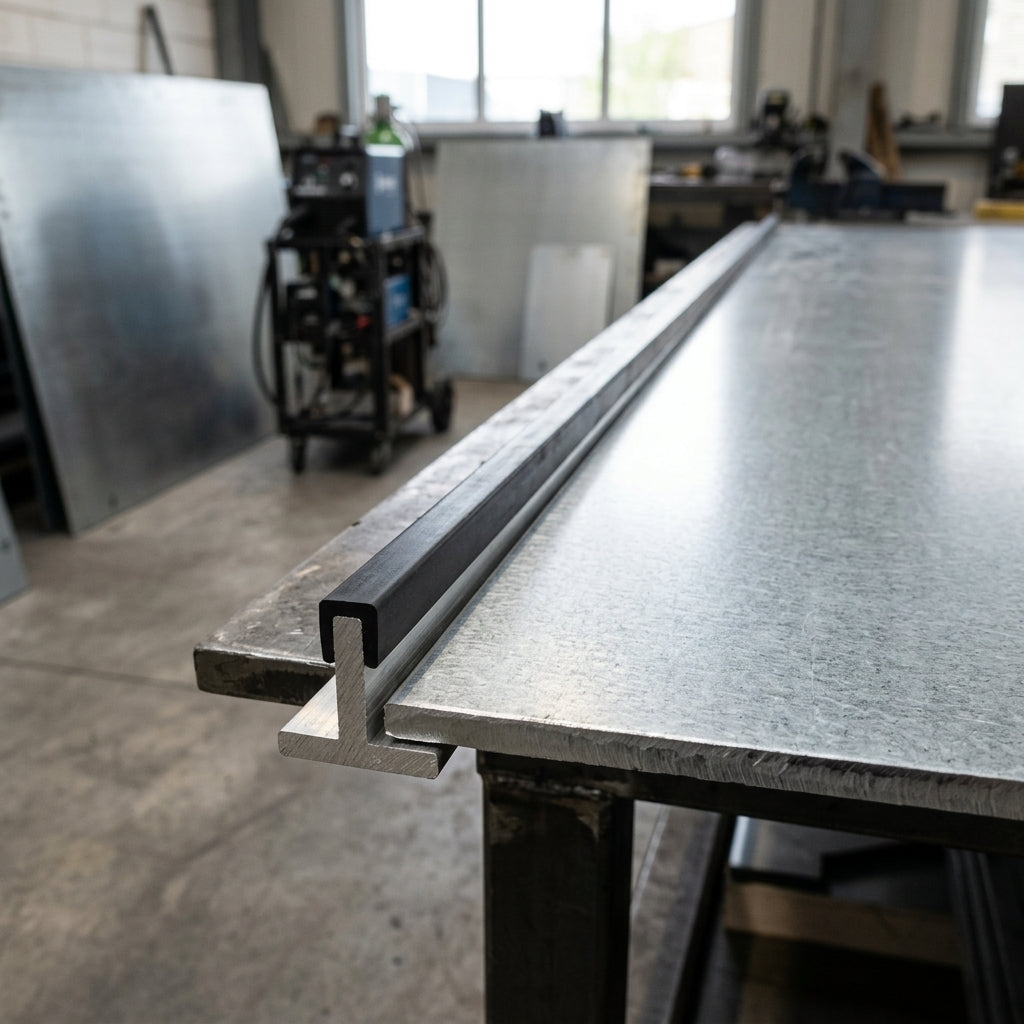

Square Rubber Edge Protector 6x9mm for 6mm Panels - 25m EPDM
£269.68incl. VAT
Not sure it's the right trim? Ask a person.
Product details
Robust square channel rubber edge trim for 6mm panels.
This 25m roll of EPDM square channel rubber edge trim is designed specifically for 6mm panels, providing effective edge protection for heavier applications. Its straight-sided channel ensures a secure fit over flat-edged panels while maintaining a professional appearance. The low depth coverage is ideal for smaller exposed edges, making it suitable for various industrial uses.
Key Features
- Designed for 6mm panel thickness
- 9mm width with 8mm overall depth
- 25m roll length for extensive use
- Reduces vibration noise along panel edges
- Easy to press into place during assembly
Specifications
- Profile: Square Channel
- Section Size: 9mm width x 6mm height
- Panel Thickness Range: 6mm
- Roll Length: 25m
- Material: EPDM
Applications
- Fabricated panels and access covers
- Machinery guards and commercial equipment
- Straight panel edges requiring a clean finish
- Batch fabrication and site work
- Planned maintenance tasks
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
