SKU EDGE001-25M

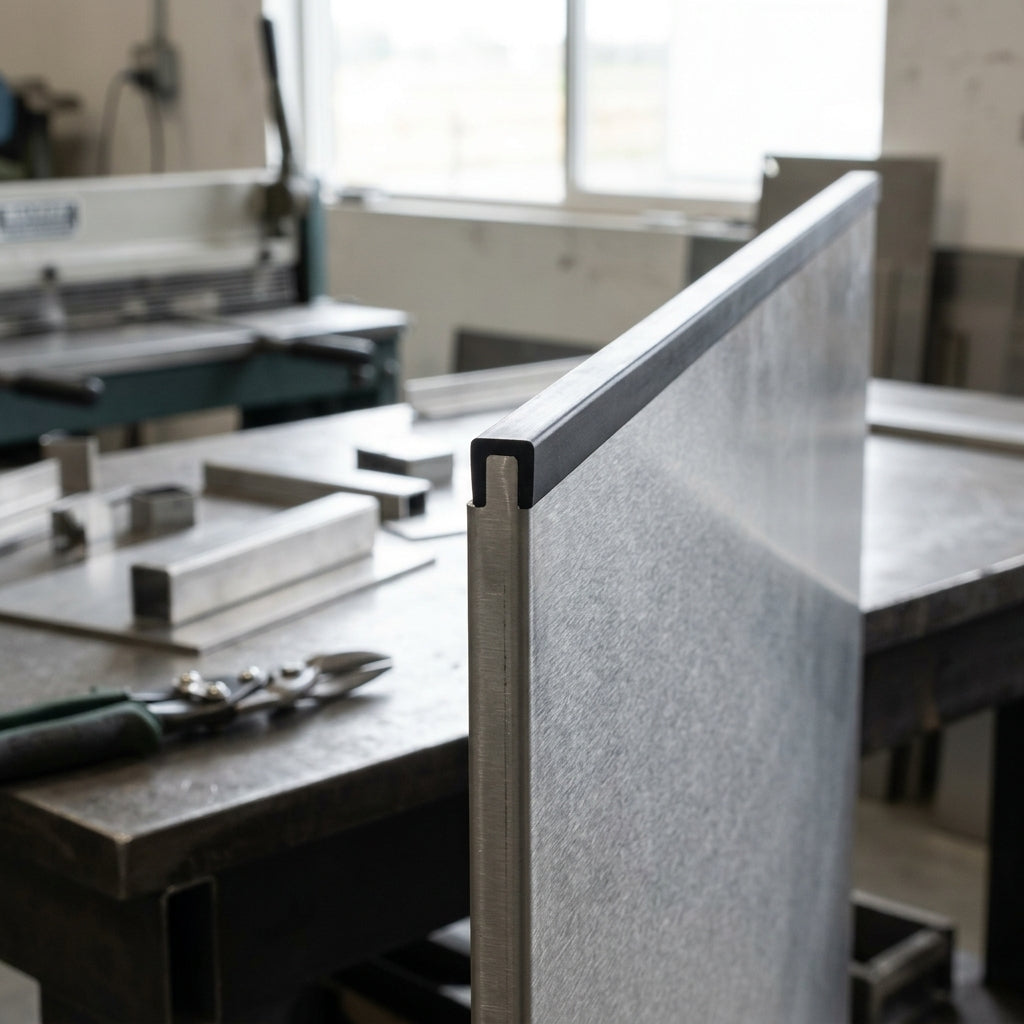

Square Rubber Edge Protector 6.4x6mm for 3mm Panels - 25m EPDM
£102.02incl. VAT
Not sure it's the right trim? Ask a person.
Product details
Square Channel Rubber Edge Trim for 3mm Panels
This 6.4mm x 6mm square channel rubber edge trim is designed specifically for 3mm panels, offering robust edge protection for various applications. With a roll length of 25m, it is perfect for both production and maintenance tasks, ensuring a tidy finish while safeguarding edges from damage.
Key Features
- Designed for 3mm panel thickness
- 6.4mm depth and 6mm width for a secure fit
- 25m roll length for extensive use
- EPDM material provides excellent weather and ozone resistance
- Easy push-on application without specialist tools
Specifications
- Profile: Square Channel
- Section Size: 6.4mm x 6mm
- Panel Thickness Range: 3mm
- Roll Length: 25m
- Material: EPDM
Applications
- Fabricated panels and access covers
- Machinery guards and commercial equipment
- Straight panel edges requiring a neat finish
- Batch fabrication and planned maintenance
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
