SKU EDGE013

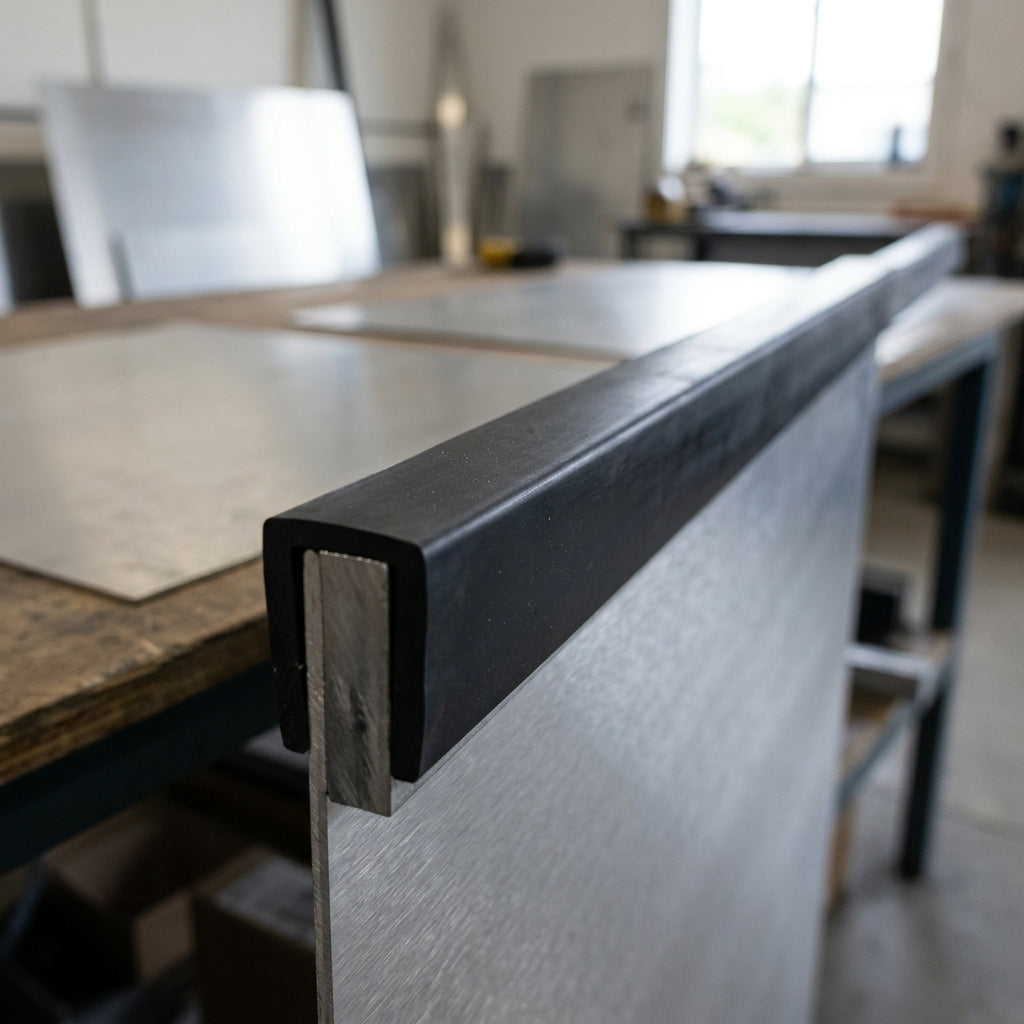

Square Rubber Edge Protector 24x17mm for 11mm Panels - 30m EPDM
£475.32incl. VAT
Not sure it's the right trim? Ask a person.
Product details
Robust square channel rubber edge trim for 11mm panels.
This 30m roll of EPDM rubber edge trim is designed for thick boards and capping applications. Its straight-sided channel provides a firm protective cap and a tidy finish, making it ideal for substantial profiles and wide exposed sections.
Key Features
- Designed for 11mm panel thickness
- 30m roll length for extensive coverage
- Deep edge coverage for robust protection
- Easy push-on application without specialist tools
- Reduces vibration noise along panel edges
Specifications
- Profile: Square Channel
- Section Size: 24mm x 17mm
- Panel Thickness Range: 11mm
- Roll Length: 30m
- Material: EPDM
Applications
- Thicker panels and heavy-duty capping work
- Vehicle and trailer bodywork edges
- Straight panel edges requiring a square channel finish
- Batch fabrication and planned maintenance
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
