SKU EDGE004-1M

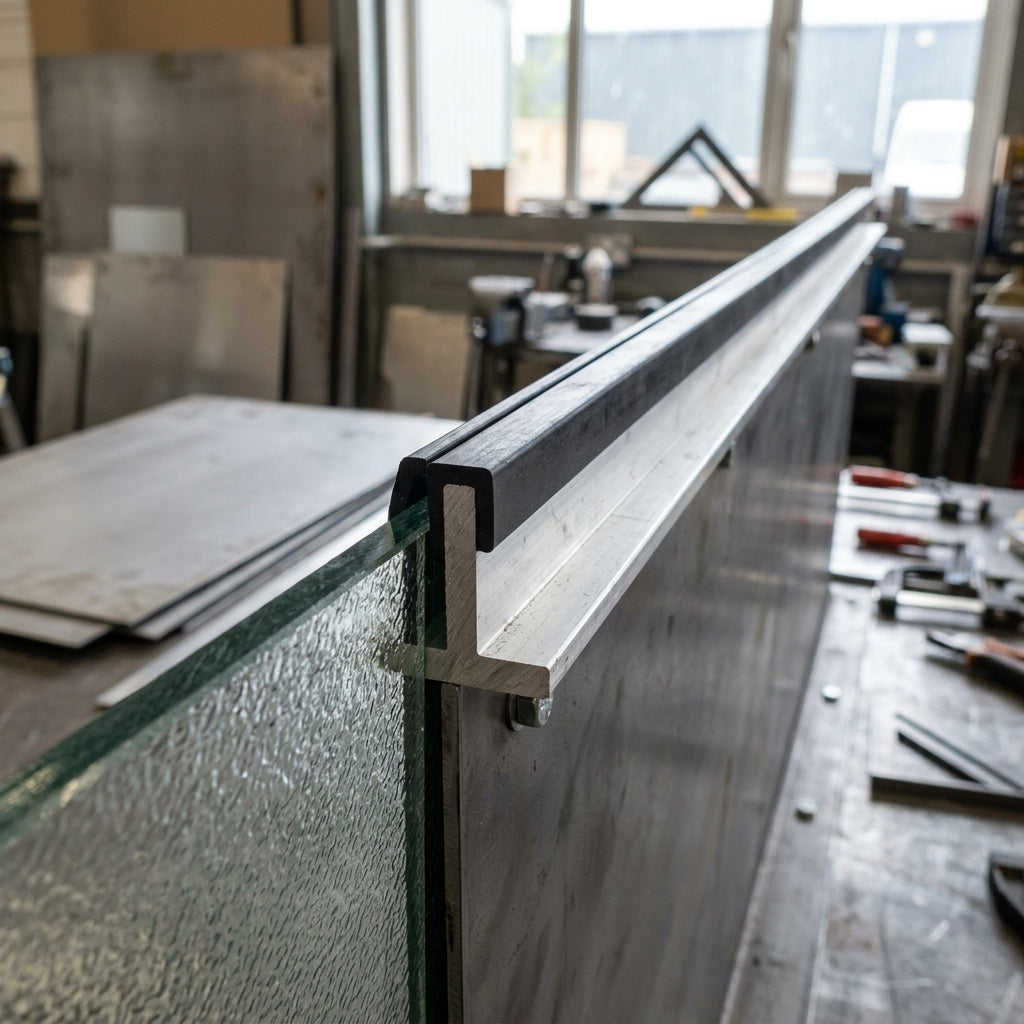

Square Rubber Edge Protector 22x10mm for 3mm Panels - 1m EPDM
£35.40incl. VAT
Not sure it's the right trim? Ask a person.
Product details
Durable square channel rubber edge trim for panel protection.
This 22mm x 10mm square channel rubber edge trim is specifically designed for 3mm panels, offering a robust solution for edge finishing in various applications. With a roll length of 1m, it is perfect for sample checks, repairs, and light fabrication tasks.
Key Features
- Designed for 3mm panel thickness
- 22mm depth and 10mm width for effective edge coverage
- 1m roll length for versatile use
- EPDM material for excellent weather and ozone resistance
- Easy to press into place during assembly
Specifications
- Profile: Square Channel
- Section Size: 22mm x 10mm
- Panel Thickness Range: 3mm
- Roll Length: 1m
- Material: EPDM
Applications
- Fabricated panels and access covers
- Machinery guards and commercial equipment edges
- Finishing straight panel edges
- Repairs and short installation runs
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
