SKU EDGE010-15M

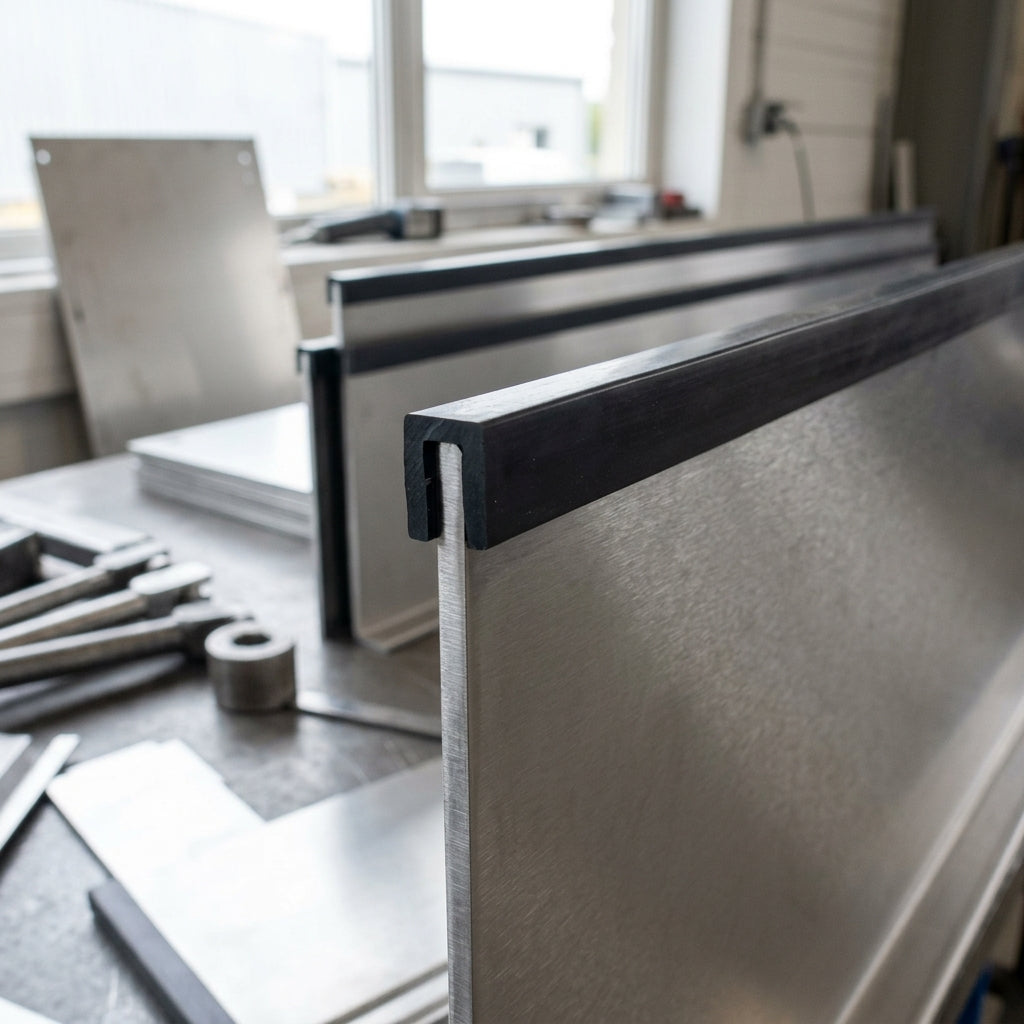

Square Rubber Edge Protector 18x15mm for 6mm Panels - 15m EPDM
£322.66incl. VAT
Not sure it's the right trim? Ask a person.
Product details
Square channel rubber edge trim designed for 6mm panels.
This 18mm x 15mm edge trim, made from durable EPDM, is ideal for providing robust edge protection on fabricated panels, access covers, and machinery guards. Its deep channel design ensures a firm grip on flat-edged surfaces, making it suitable for a variety of applications in industrial settings.
Key Features
- Designed for 6mm panel thickness
- Overall depth of 22mm for enhanced edge coverage
- 15m roll length for versatile use
- Non-metallic material to prevent corrosion
- Easy to cut for custom lengths
Specifications
- Profile: Square Channel
- Section Size: 18mm x 15mm
- Panel Thickness Range: 6mm
- Roll Length: 15m
- Material: EPDM
Applications
- Fabricated panels and access covers
- Machinery guards and commercial equipment edges
- Straight panel edges requiring a square channel finish
- Batch fabrication and site work
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
