SKU EDGE009-1M
Square Rubber Edge Protector 14x13mm for 6mm Panels - 1m EPDM
Not sure it's the right trim? Ask a person.
Product details

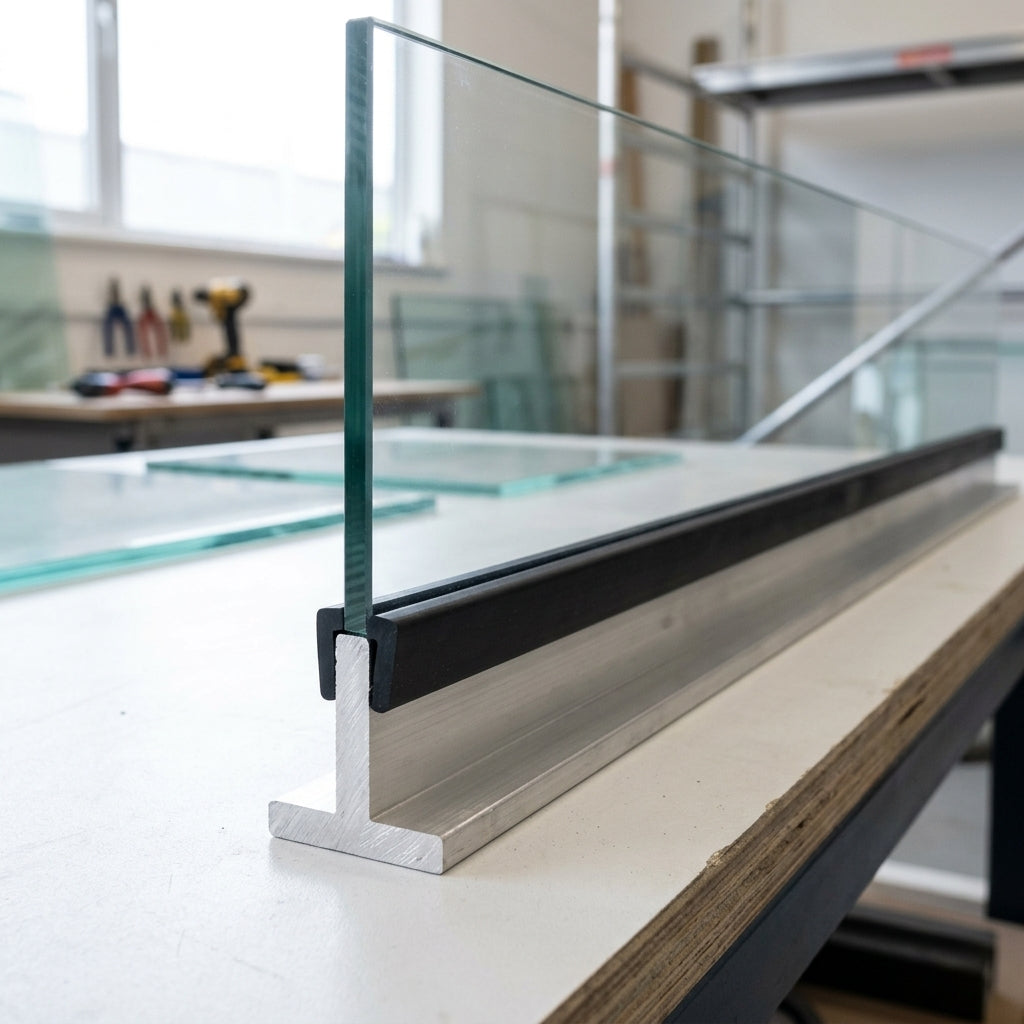

Robust square channel rubber edge trim designed for 6mm panels.
This 1m roll of black EPDM edge trim is ideal for providing a protective cap on fabricated panels, access covers, and machinery guards. Its straight-sided channel design ensures a secure fit, making it suitable for both straight and curved panel edges while protecting against handling damage and vibration marks.
Key Features
- Designed for 6mm panel thickness
- 14mm width and 17mm overall depth
- 1m roll length for easy application
- Non-metallic profile prevents corrosion
- Suitable for both straight and curved edges
Specifications
- Profile: Square Channel
- Section Size: 14mm x 13mm
- Panel Thickness Range: 6mm
- Roll Length: 1m
- Material: EPDM
Applications
- Fabricated panels and access covers
- Machinery guards and commercial equipment edges
- Repairs and sample testing
- Short installation runs
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
