SKU EDGE008
Square Rubber Edge Protector 13x10mm for 6mm Panels - 25m EPDM
£314.26incl. VAT
Not sure it's the right trim? Ask a person.
Product details

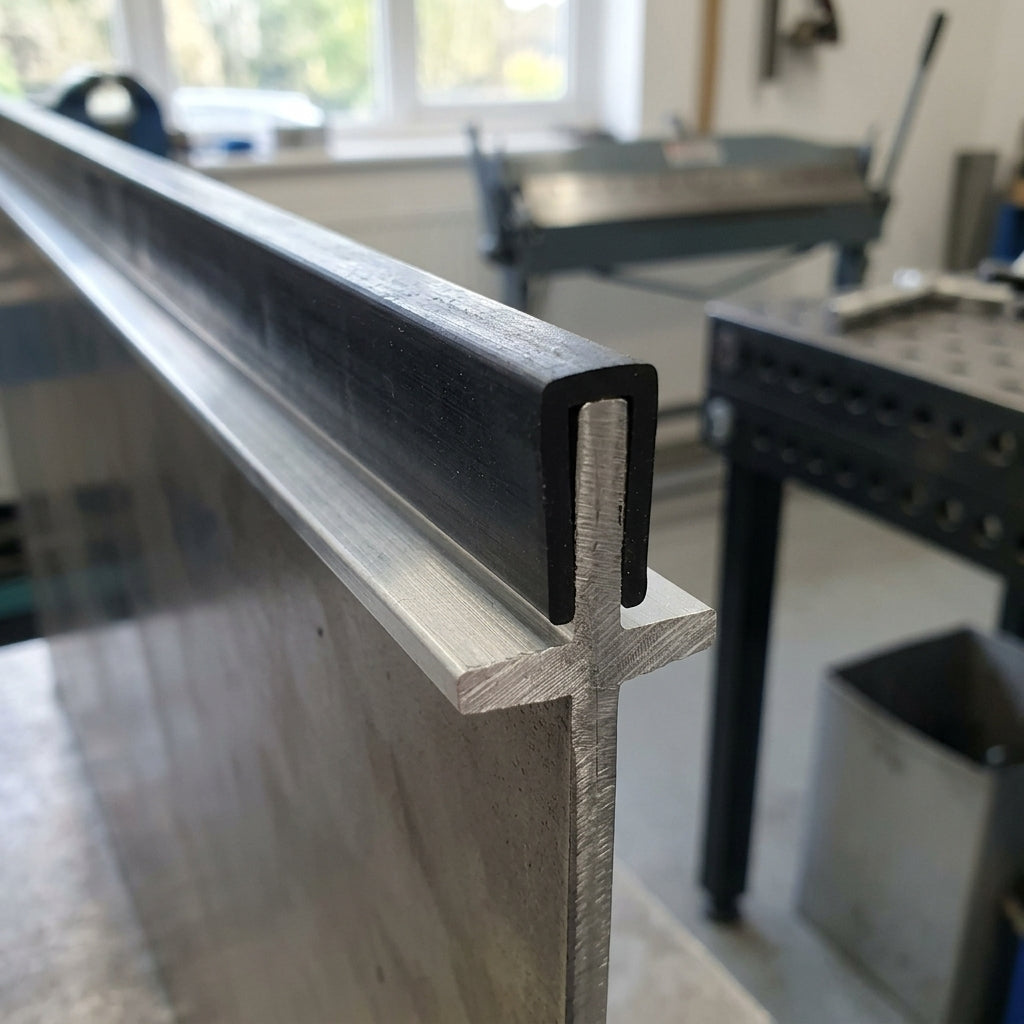

Square Channel Rubber Edge Trim for 6mm Panels
This 25m roll of square channel rubber edge trim is designed specifically for 6mm panels, providing robust edge protection and a neat finish. Made from EPDM, it offers excellent resistance to weathering and moisture, making it suitable for a variety of applications.
Key Features
- Designed for 6mm panel thickness
- 25m roll length for extensive coverage
- EPDM material for durability and weather resistance
- Straight-sided channel for a secure fit
- Ideal for both straight and curved panel edges
Specifications
- Profile: Square Channel
- Section Size: 13mm x 10mm
- Panel Thickness Range: 6mm
- Roll Length: 25m
- Material: EPDM
Applications
- Fabricated panels and access covers
- Machinery guards and commercial equipment edges
- Batch fabrication and site work
- Workshop assemblies needing edge protection
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
