SKU EDGE008-1M

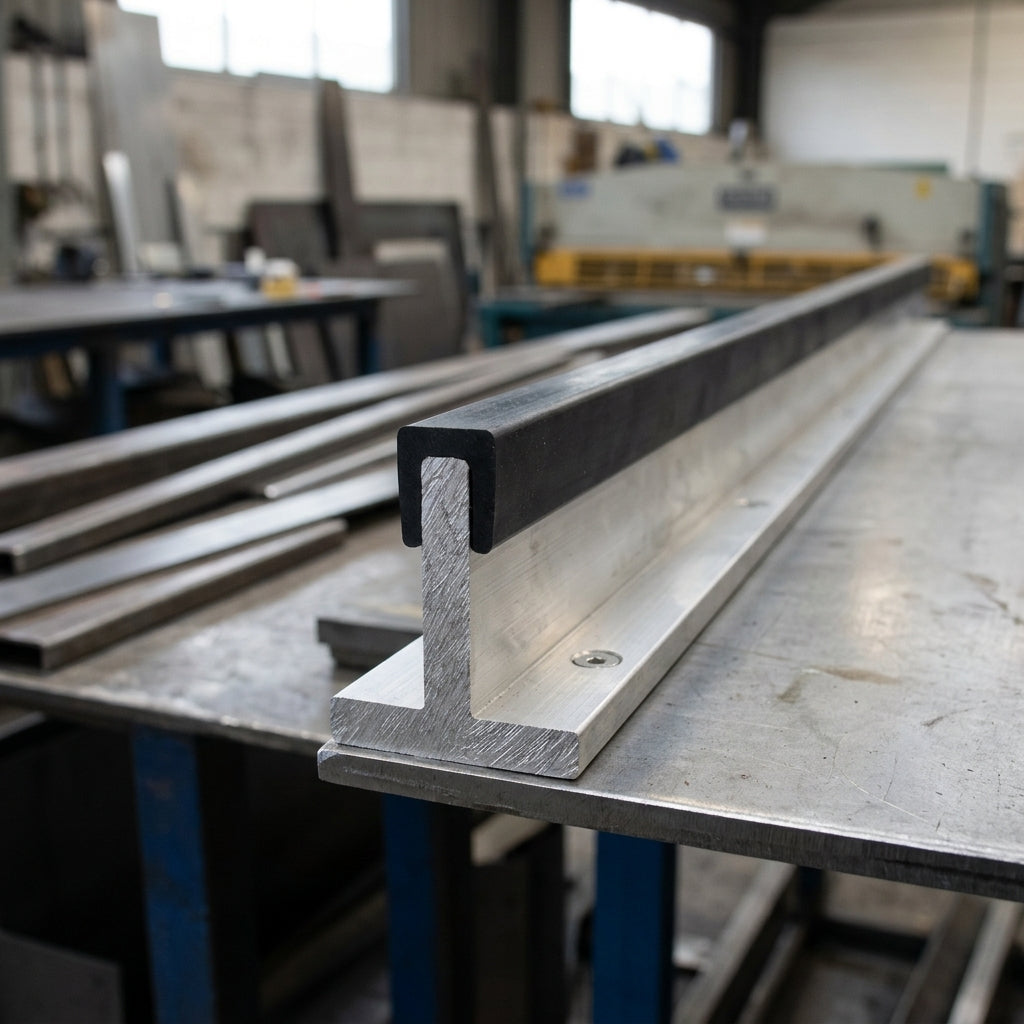

Square Rubber Edge Protector 13x10mm for 6mm Panels - 1m EPDM
Not sure it's the right trim? Ask a person.
Product details
Square channel rubber edge trim designed for 6mm panels.
This 1m roll of EPDM rubber edge trim features a 13mm width and a 10mm profile, providing a robust solution for protecting edges on heavier panels, guards, and industrial covers. Its straight-sided channel design ensures a secure fit over flat edges, delivering both a tidy finish and enhanced protection against damage.
Key Features
- Designed for 6mm panel thickness
- 13mm width with a 10mm profile
- 1m roll length for versatile applications
- EPDM material for durability in industrial settings
- Easy push-on installation for quick edge finishing
Specifications
- Profile: Square Channel
- Section Size: 13mm x 10mm
- Panel Thickness Range: 6mm
- Roll Length: 1m
- Material: EPDM
Applications
- Fabricated panels and access covers
- Machinery guards and commercial equipment
- Straight panel edges requiring a square channel finish
- Repairs and sample testing
- Short installation runs
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
