SKU EDGE005-5M

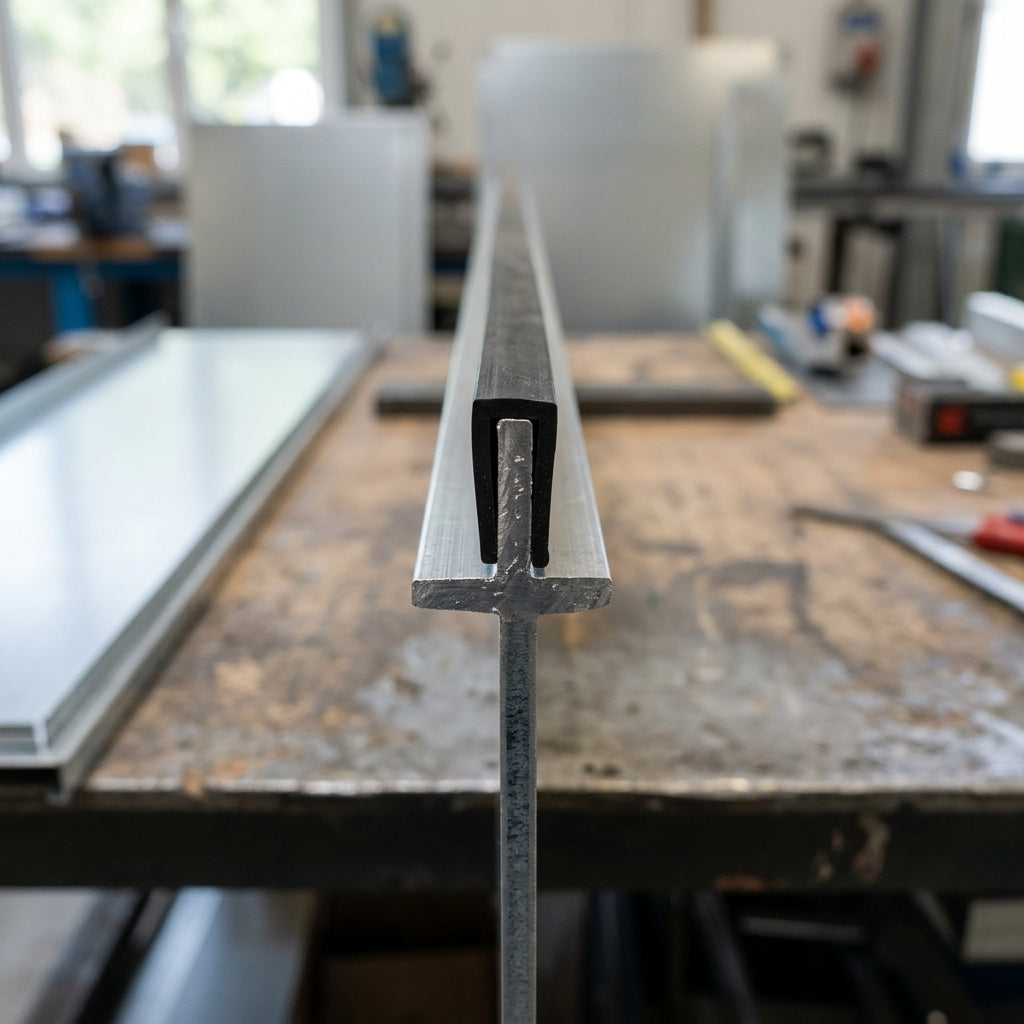

Square Rubber Edge Protector 13.5x8mm for 4.5mm Panels - 5m EPDM
Not sure it's the right trim? Ask a person.
Product details
Durable square channel rubber edge trim for 4.5mm panels.
This 5m EPDM edge trim is designed for 4.5mm thick panels, featuring a 13.5mm depth and 8mm width. It provides effective edge capping for sheet metal, access covers, and light fabricated panels, ensuring a tidy finish while protecting against cuts and chipping.
Key Features
- Designed for 4.5mm panel thickness
- Overall depth of 15mm for enhanced protection
- Flexible EPDM material for easy installation
- 5m roll length for various applications
- Provides a clean edge without exposed fasteners
Specifications
- Profile: Square Channel
- Section Size: 13.5mm x 8mm
- Panel Thickness Range: 4.5mm
- Roll Length: 5m
- Material: EPDM
Applications
- Fabricated panels and access covers
- Machinery guards and commercial equipment
- Straight panel edges requiring a square finish
- Repairs and short installation runs
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
