SKU EDGE005-25M
Square Rubber Edge Protector 13.5x8mm for 4.5mm Panels - 25m EPDM
£162.02incl. VAT
Not sure it's the right trim? Ask a person.
Product details

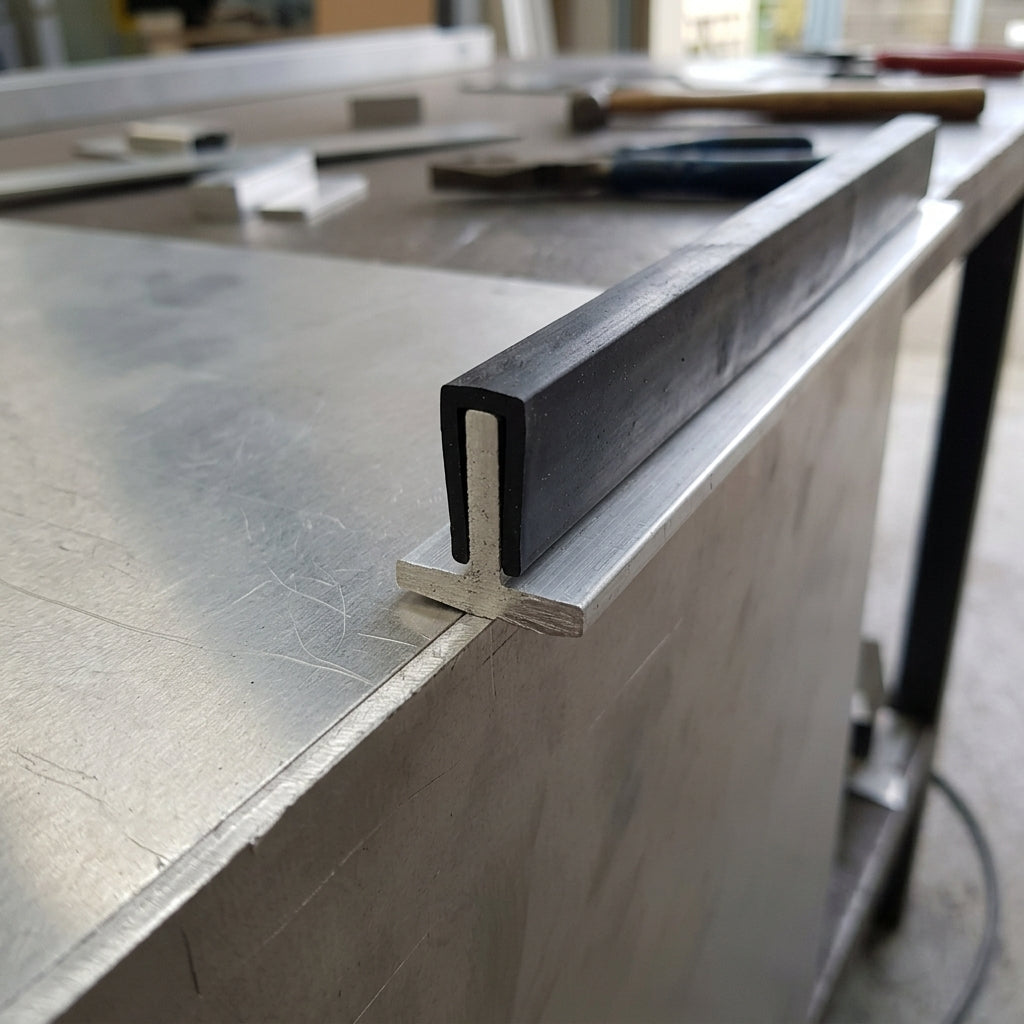

Square channel rubber edge trim designed for 4.5mm panels.
This 25m roll of EPDM rubber edge trim is ideal for providing sheet edge protection for fabricated panels, access covers, and light machinery. Its square channel profile ensures a firm grip on flat-edged panels, delivering both safety and a clean aesthetic finish.
Key Features
- Designed for 4.5mm panel thickness
- 13.5mm depth and 8mm width for versatile applications
- 25m roll length for extensive use
- Easy push-on installation without specialist tools
- Durable EPDM material for long-lasting performance
Specifications
- Profile: Square Channel
- Section Size: 13.5mm x 8mm
- Panel Thickness Range: 4.5mm
- Roll Length: 25m
- Material: EPDM
Applications
- Fabricated panels and access covers
- Machinery guards and commercial equipment
- Workshop assemblies and maintenance tasks
- Batch fabrication and site work
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
