SKU EDGE005-1M

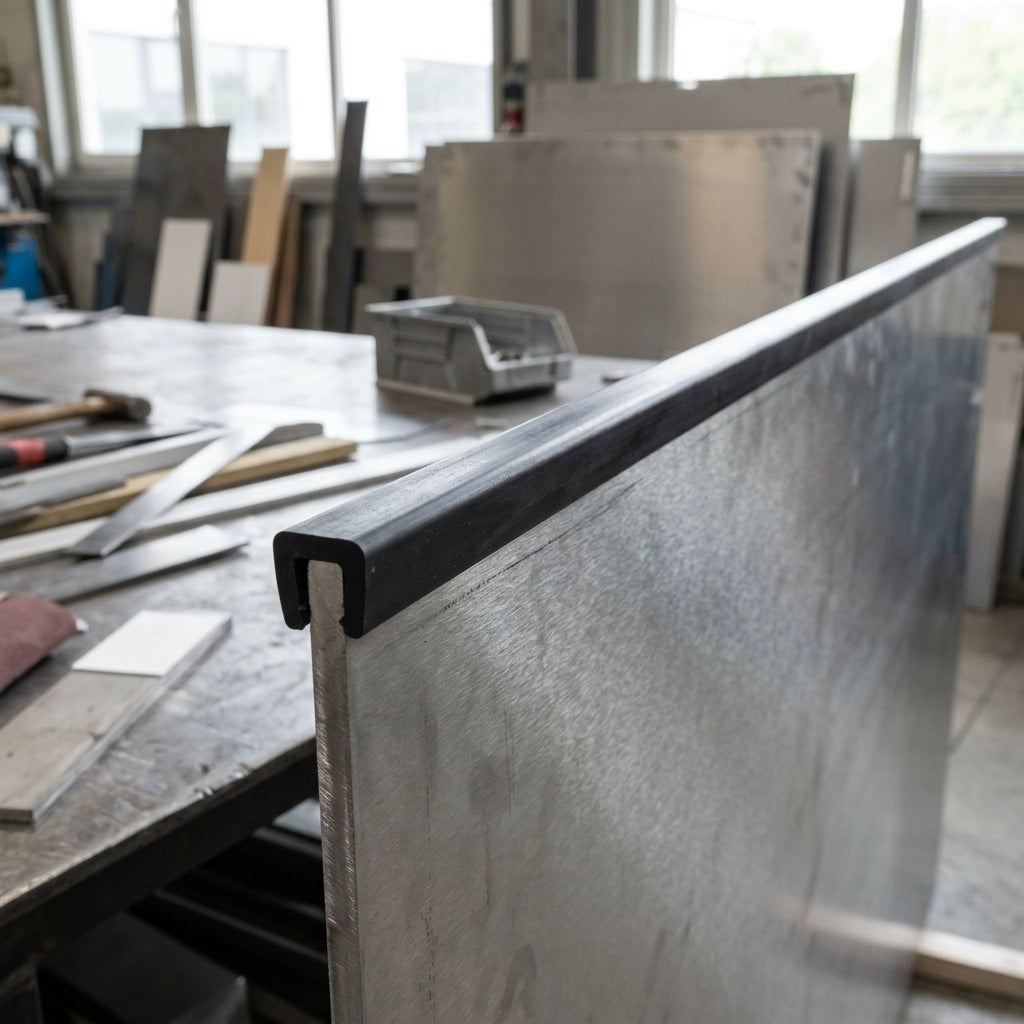

Square Rubber Edge Protector 13.5x8mm for 4.5mm Panels - 1m EPDM
Not sure it's the right trim? Ask a person.
Product details
Robust edge protection for 4.5mm panels.
This square channel rubber edge trim is specifically designed for 4.5mm panels, providing a tidy finish and reliable edge protection. With a 13.5mm depth and 8mm width, it is perfect for general sheet metal applications, access covers, and light fabricated panels.
Key Features
- Designed for 4.5mm panel thickness
- 13.5mm depth and 8mm width for effective coverage
- 1m roll length for flexible application
- Provides a clean visual finish on customer-facing equipment
- Easy to cut for custom lengths
Specifications
- Profile: Square Channel
- Section Size: 13.5mm x 8mm
- Panel Thickness Range: 4.5mm
- Roll Length: 1m
- Material: EPDM
Applications
- Fabricated panels and access covers
- Commercial equipment edges
- Workshop assemblies
- Repairs and sample testing
- Short installation runs
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
