SKU EDGE014

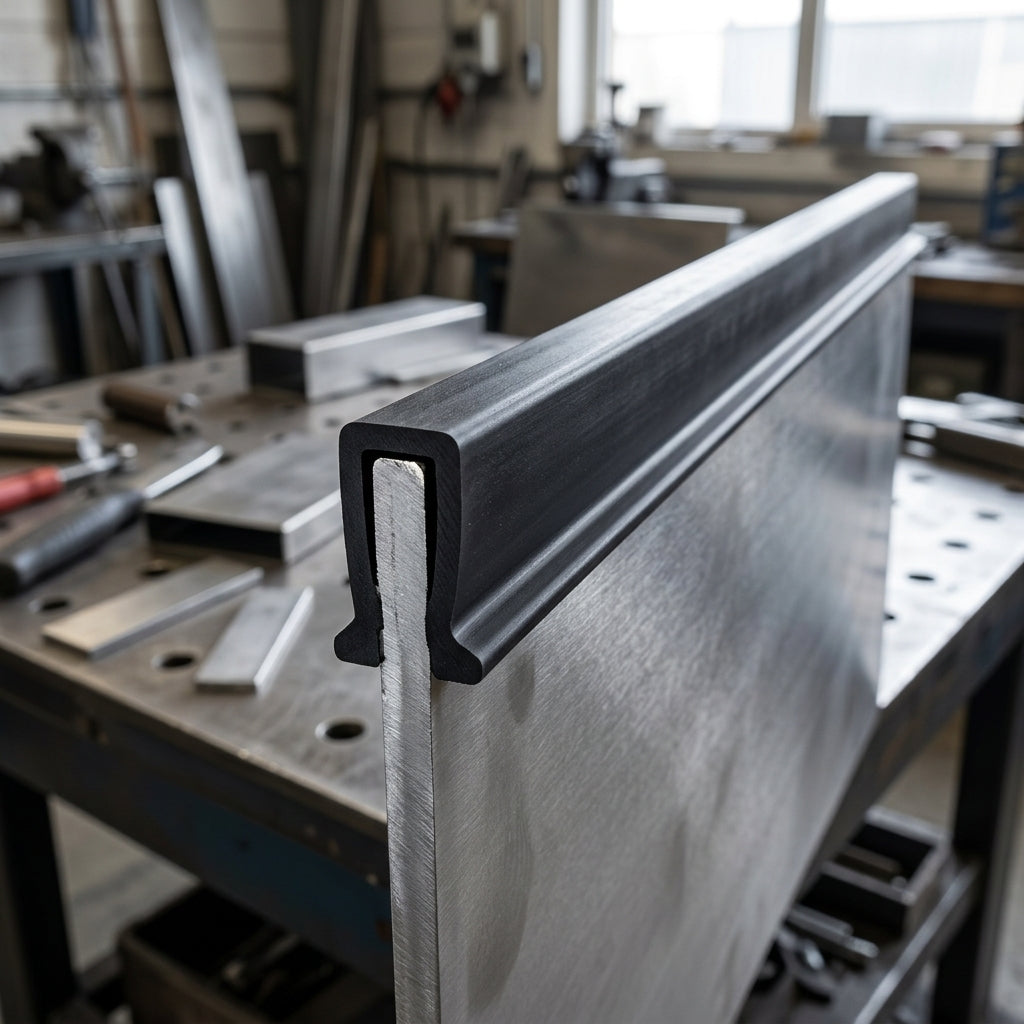

Square Rubber Edge Protector 12.5x18mm for 13mm Panels - 25m EPDM
£762.16incl. VAT
Not sure it's the right trim? Ask a person.
Product details
Durable square channel rubber edge trim for effective edge protection.
This EPDM rubber edge trim is designed for 13mm panels, featuring a 12.5mm depth and 18mm width, making it perfect for thicker boards and heavy-duty applications. The 25m roll length allows for extensive use in production batches, ensuring a neat finish while protecting edges from damage.
Key Features
- Designed for 13mm panel thickness
- 25m roll length for extensive application
- 12.5mm depth and 18mm width for robust edge coverage
- Non-metallic profile to prevent corrosion
- Easy to install during assembly or finishing work
Specifications
- Profile: Square Channel
- Section Size: 12.5mm x 18mm
- Panel Thickness Range: 13mm
- Roll Length: 25m
- Material: EPDM
Applications
- Thicker panels and boards
- Vehicle and trailer bodywork edges
- Industrial applications requiring a square channel finish
- Batch fabrication and maintenance work
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
