SKU EDGE014-1M

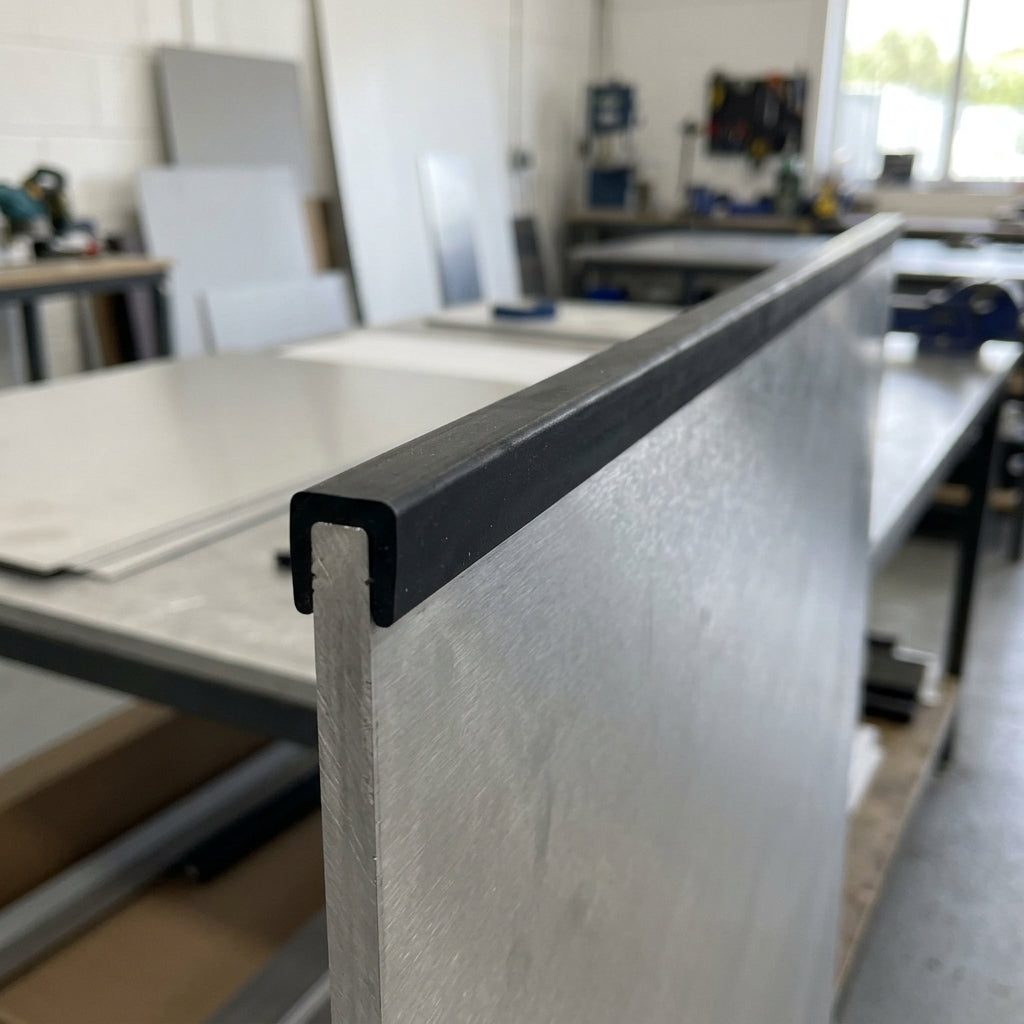

Square Rubber Edge Protector 12.5x18mm for 13mm Panels - 1m EPDM
Not sure it's the right trim? Ask a person.
Product details
Square channel rubber edge trim designed for 13mm panels.
This 1m EPDM square channel rubber edge trim is specifically manufactured for 13mm panels, providing robust edge protection and a neat finish. Its flexible design allows it to adapt to various applications, making it suitable for repairs and installations where durability is essential.
Key Features
- Designed for 13mm panel thickness
- Overall depth of 15mm for enhanced protection
- Flexible material for easy application
- 1m roll length for versatile use
- Provides a tidy finish on straight edges
Specifications
- Profile: Square Channel
- Section Size: 12.5mm x 18mm
- Panel Thickness Range: 13mm
- Roll Length: 1m
- Material: EPDM
Applications
- Thicker panels and boards
- Vehicle and trailer bodywork edges
- Repairs and sample testing
- Short installation runs
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Two sections fit my panel — which one?
The panel range is what decides the fit. The section size changes how far the trim reaches over each face, so a larger section covers a rough or damaged edge further back.
Which length should I buy?
Measure the full run of the edge and allow a little extra for cuts at corners. Longer rolls mean fewer joins on long runs.
