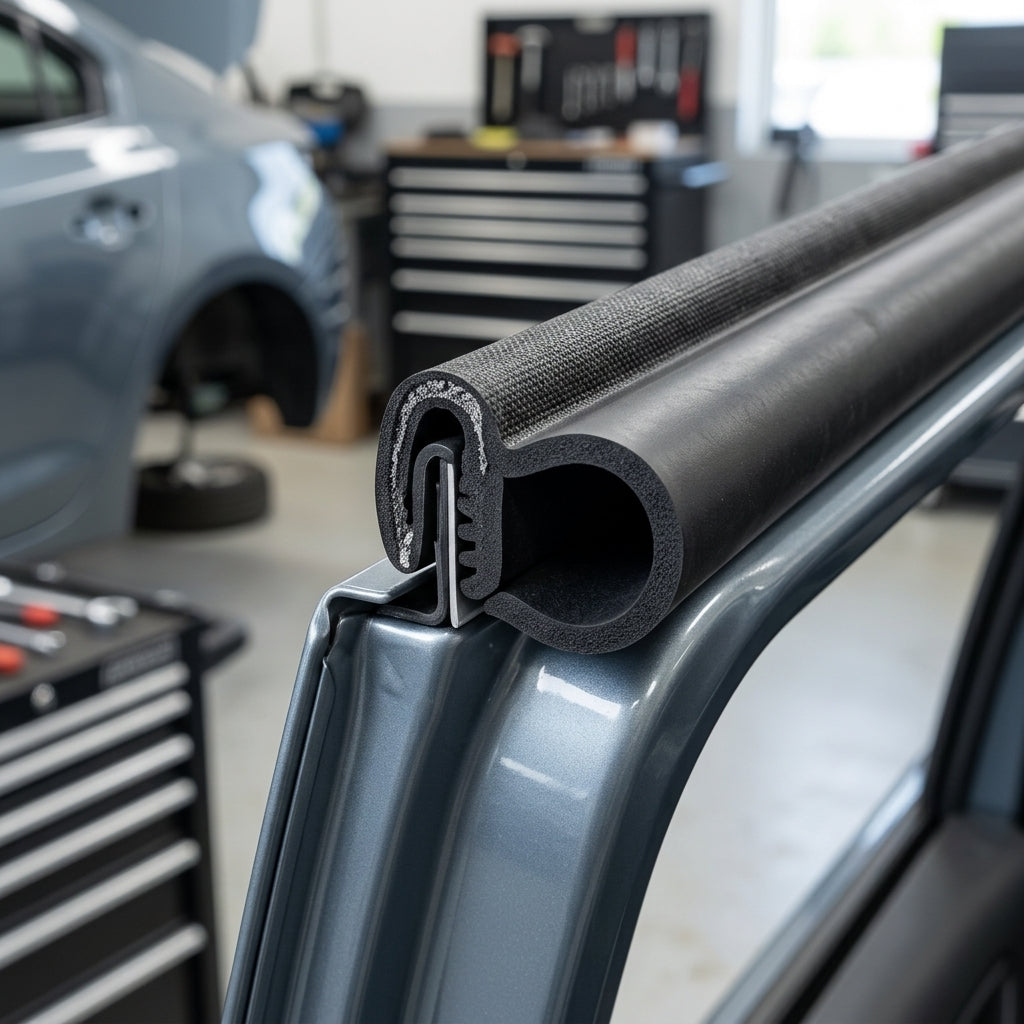

Side-Lip Door Seal Edge Trim 20x12mm for 2-4mm Panels - 5m EPDM
Not sure it's the right seal? Ask a person.
Product details
Flexible door trim for effective sealing and protection.
This door trim is designed to fit 2-4mm panel thicknesses and comes in a 5m roll, making it perfect for various maintenance and fabrication tasks. Its side bubble design not only reduces vibration and rattling but also provides a reliable seal against environmental ingress.
Key Features
- Fits panel thicknesses of 2-4mm
- 5m roll length for convenience
- Overall depth of 12.0mm
- 20mm sealing section to minimise gaps
- Made from durable EPDM material
- Flexible design for easy installation
Specifications
- Profile: Side Bubble
- Roll Length: 5m
- Material: EPDM
- Colour: Black
- Overall Depth: 12.0mm
- Pannel End Of Seal: 20mm
Applications
- Vehicle doors and compartments
- Industrial access panels
- Electrical and equipment enclosures
- Fabrication and engineering projects
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Which way round does the seal go?
The channel grips the panel edge and the lip sits on the side the door, lid or hatch closes against, so it is pressed down when it shuts.
5 m or 50 m roll?
It is the same seal on both. The 5 m roll suits a single door or cabinet
