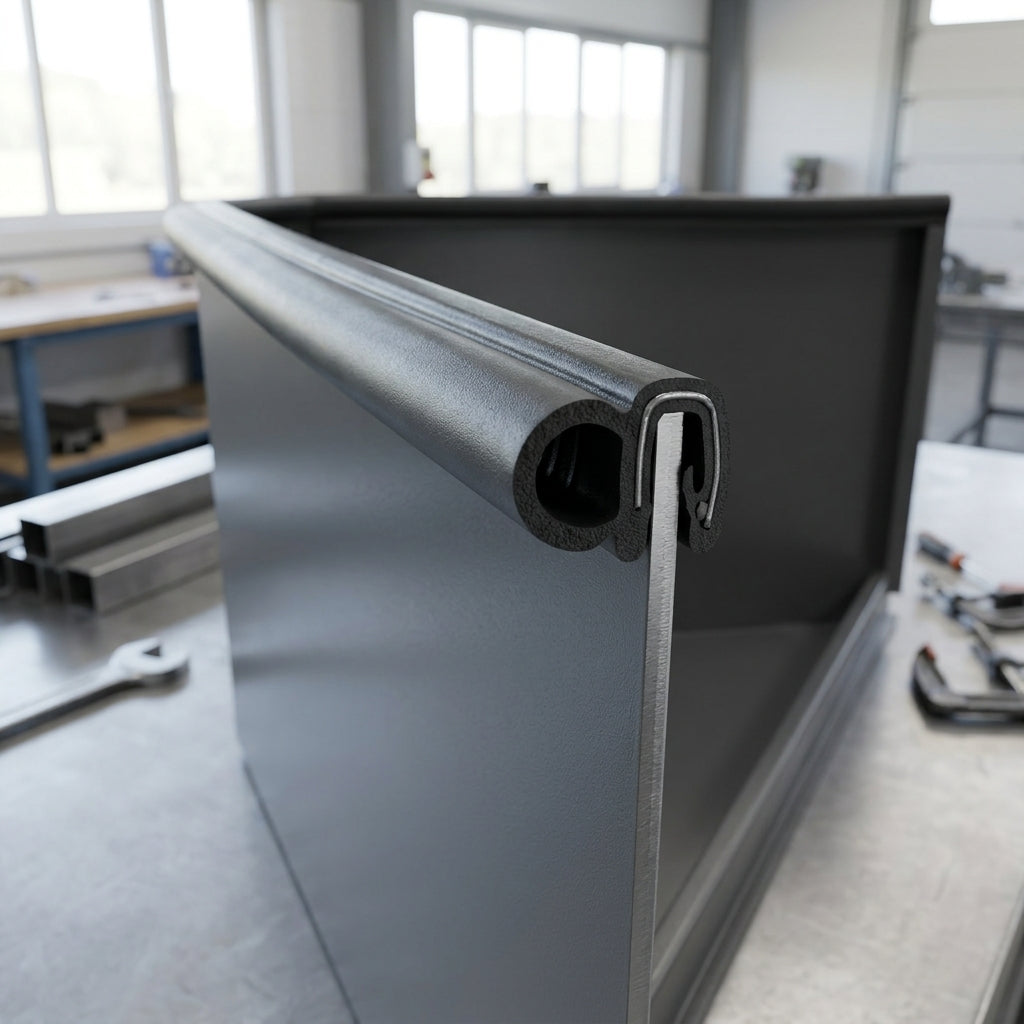

Side-Lip Door Seal Edge Trim 10x11.5mm for 1-3mm Panels - 50m EPDM
Not sure it's the right seal? Ask a person.
Product details
Durable door trim designed for effective sealing.
This 11.5mm x 10mm door trim is supplied on a 50m roll, making it ideal for large-scale fabrication and vehicle manufacturing. The side bubble seal compresses against adjoining surfaces to minimise dust ingress, noise, and vibration, ensuring a reliable seal over time.
Key Features
- Effective edge protection with a side bubble profile
- Long-lasting performance from EPDM material
- Reduces dust and noise transmission
- Supplied in a convenient 50m roll
Specifications
- Profile: Side Bubble
- Section Size: 11.5mm x 10mm
- Panel Thickness Range: 1-3mm
- Roll Length: 50m
- Material: EPDM
- Colour: Black
Applications
- Vehicle doors and compartments
- Industrial access panels
- Electrical and equipment enclosures
- Fabrication and engineering projects
Sizing questions
How do I measure my panel thickness?
Use callipers or a micrometer on a bare edge, not over paint, powder coat or a gasket. If the edge already has a lip or fold, measure the thickest point the trim will sit over.
Which way round does the seal go?
The channel grips the panel edge and the lip sits on the side the door, lid or hatch closes against, so it is pressed down when it shuts.
5 m or 50 m roll?
It is the same seal on both. The 5 m roll suits a single door or cabinet
