SKU FFFP009

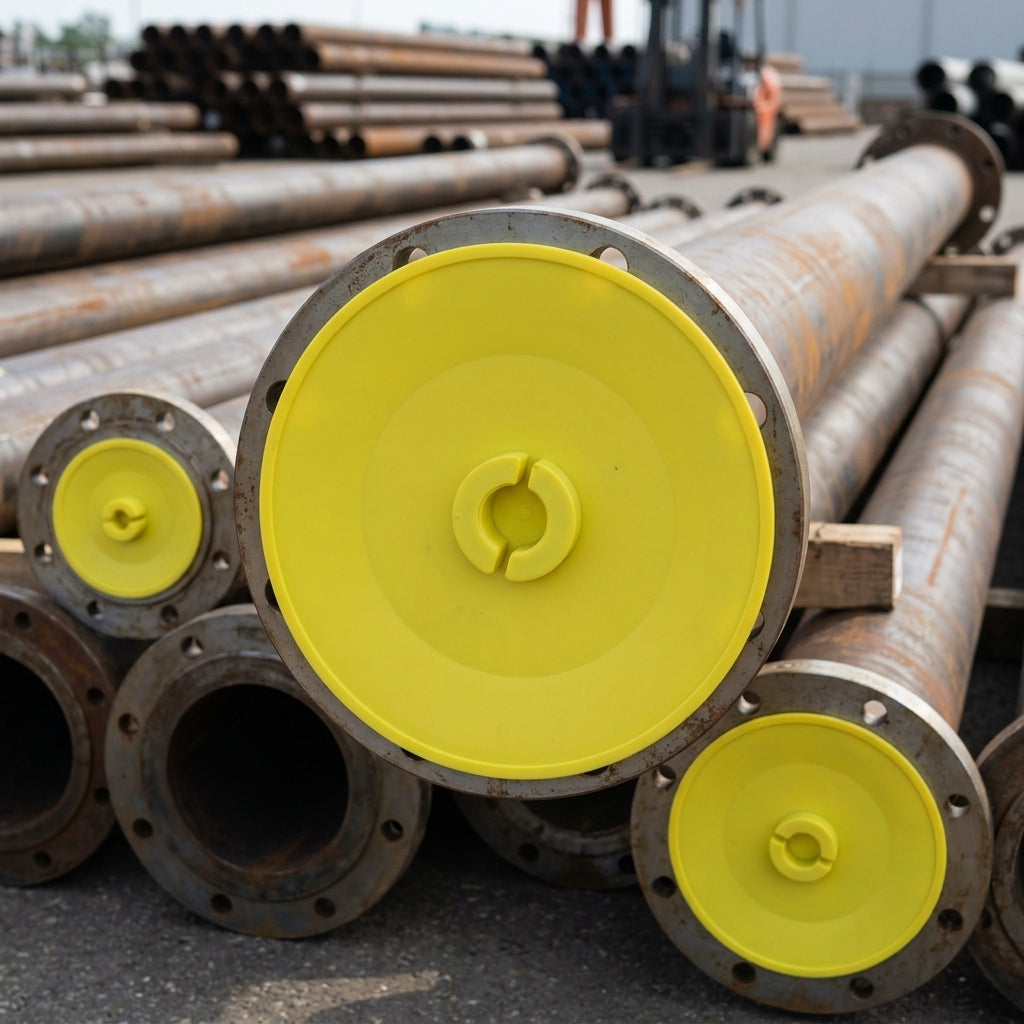

DN 80 Full Face Flange Protector - 195mm, Yellow LDPE
Not sure it's the right size? Ask a person.
Product details
Full face flange protector with integral ribs for DN 80 flanges, manufactured from yellow LDPE.
This protector fully encloses the flange face and includes flexible ribs that insert into the bore, providing a tighter, more secure fit than simple push-on caps. The high-quality LDPE construction resists moisture, dirt, paint splatter and most oils, making it ideal for protecting flanges during manufacturing, transit, warehousing and maintenance work.
Key Features
- Flexible ribs grip the flange bore for secure, slip-resistant fit
- Full face coverage protects the entire gasket sealing surface
- LDPE material resists moisture, dirt, paint and most oils
- Yellow colour for high visibility on site
- Suitable for production, transportation, storage and maintenance
Specifications
- Standard: DN 80 (3" nominal diameter)
- Head diameter: 195mm
- Material: LDPE
- Colour: Yellow
Applications
- Flange face protection during manufacturing and assembly
- Transit and storage of piped equipment
- Maintenance work and staged shut-downs
- Protection against environmental contamination
Sizing questions
Which rating do I need?
Match the class or PN rating stamped on the flange, so the bolt holes line up.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
Does it come off before assembly?
Yes — take the protector off before the gasket goes in.
