SKU FD027

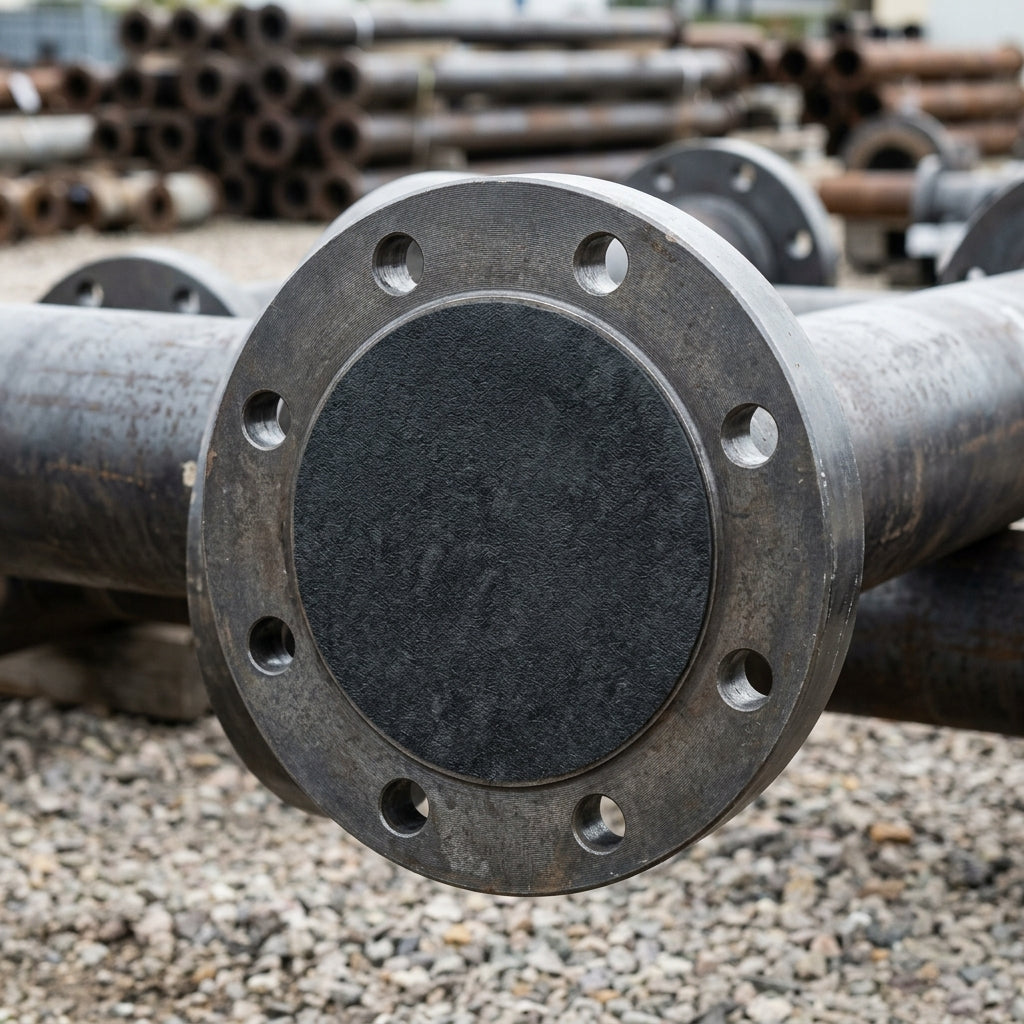

DN 80 DIN Self-Adhesive Flange Disc - 138mm, Neoprene
Not sure it's the right size? Ask a person.
Product details
Self-adhesive neoprene rubber disc for full-face protection of DN 80 DIN flanges.
These flexible protective discs seal and safeguard the raised face and bore of standard DIN flanges rated to 160 bar. The low-tack adhesive backing applies cleanly to the flange and removes without residue, making them ideal for protecting gasket surfaces from contamination, moisture and mechanical damage during storage and transport.
Key Features
- 70 Shore neoprene rubber construction
- Low-tack self-adhesive backing for damage-free removal
- Full-face coverage for DIN flanges up to 160 bar
- Resistant to heat, oils, acids, alkalis and petroleum products
- Operating temperature range −15°C to +100°C
- Quick application, no tools required
Specifications
- Standard: DIN
- Nominal size: DN 80
- Disc diameter: 138 mm
- Material: neoprene rubber, 70 Shore A hardness
- Backing: low-tack self-adhesive
Applications
- Flange protection during factory storage and yards
- Pipeline and equipment transit packaging
- Pressure vessel installation and maintenance
- Oil, gas and chemical plant operations
- Industrial pipework fabrication
Sizing questions
Which disc size do I need?
Pick the disc for your flange standard and nominal size. The disc diameter is in the title so you can check it against the flange face.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
Does it come off before assembly?
Yes — peel the disc off before the gasket goes in.
