SKU FFFP007

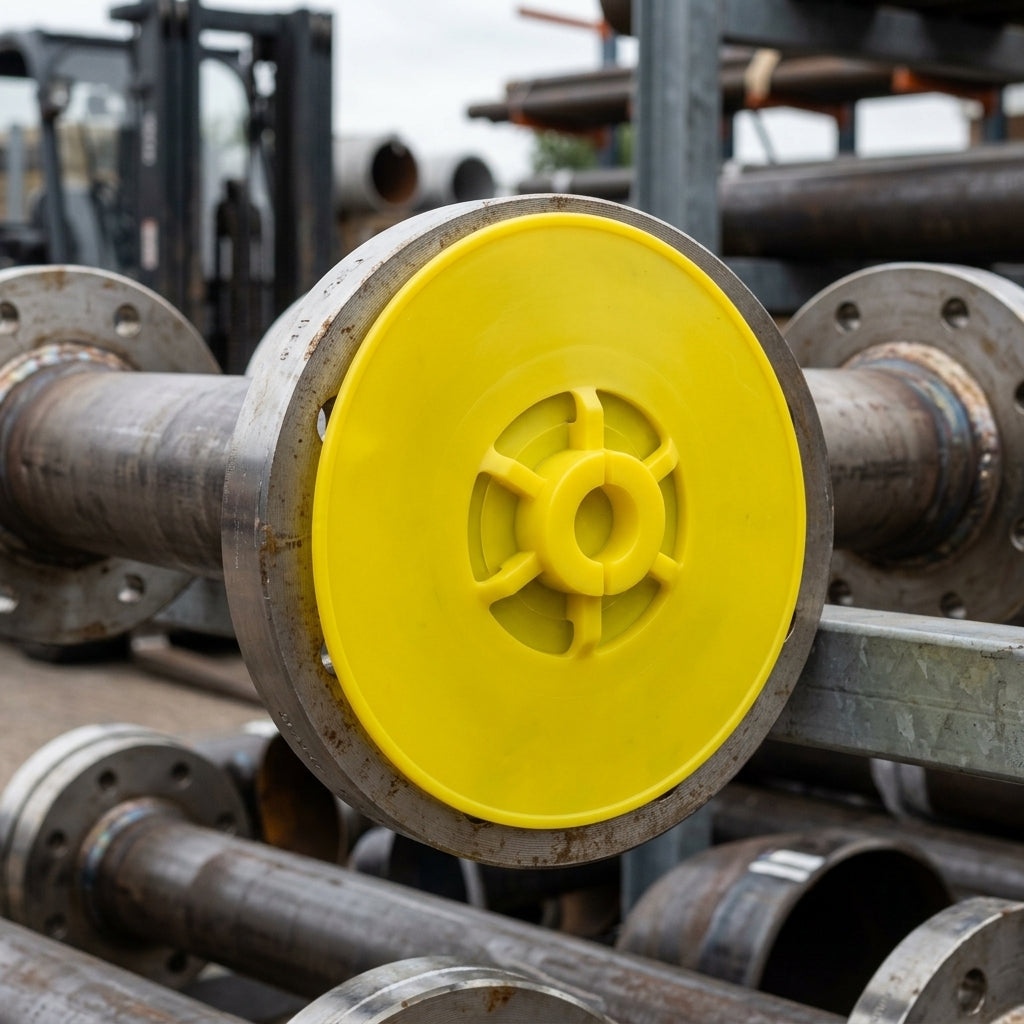

DN 50 Full Face Flange Protector - 160mm, Yellow LDPE
Not sure it's the right size? Ask a person.
Product details
Full face flange protector with integrated flexible ribs for a secure hold on DN 50 flanges.
Designed to fully cover and protect flange faces during production, transportation, storage and maintenance work. The flexible ribs insert into the flange bore to create a tighter fit than a slip-on cap, reducing the risk of accidental displacement. Manufactured from high-quality LDPE plastic to resist moisture, dirt, paint splatter and most oils.
Key Features
- Integrated flexible ribs grip the flange bore securely
- Full face coverage protects gasket sealing surfaces
- LDPE material resists moisture, dirt, paint and oils
- Suitable for storage, transit and on-site protection
- Reusable and durable
Specifications
- Material: LDPE
- Colour: Yellow
- Nominal Diameter: 2"
- Flange Standard: DN 50
- Head Diameter: 160mm
Applications
- Flange protection during production and assembly
- Transport and storage of flanged pipe sections
- Maintenance work and equipment shutdown periods
- Prevention of gasket face contamination and damage
- Industrial pipework and oil and gas installations
Sizing questions
Which rating do I need?
Match the class or PN rating stamped on the flange, so the bolt holes line up.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
Does it come off before assembly?
Yes — take the protector off before the gasket goes in.
