SKU FFFP006

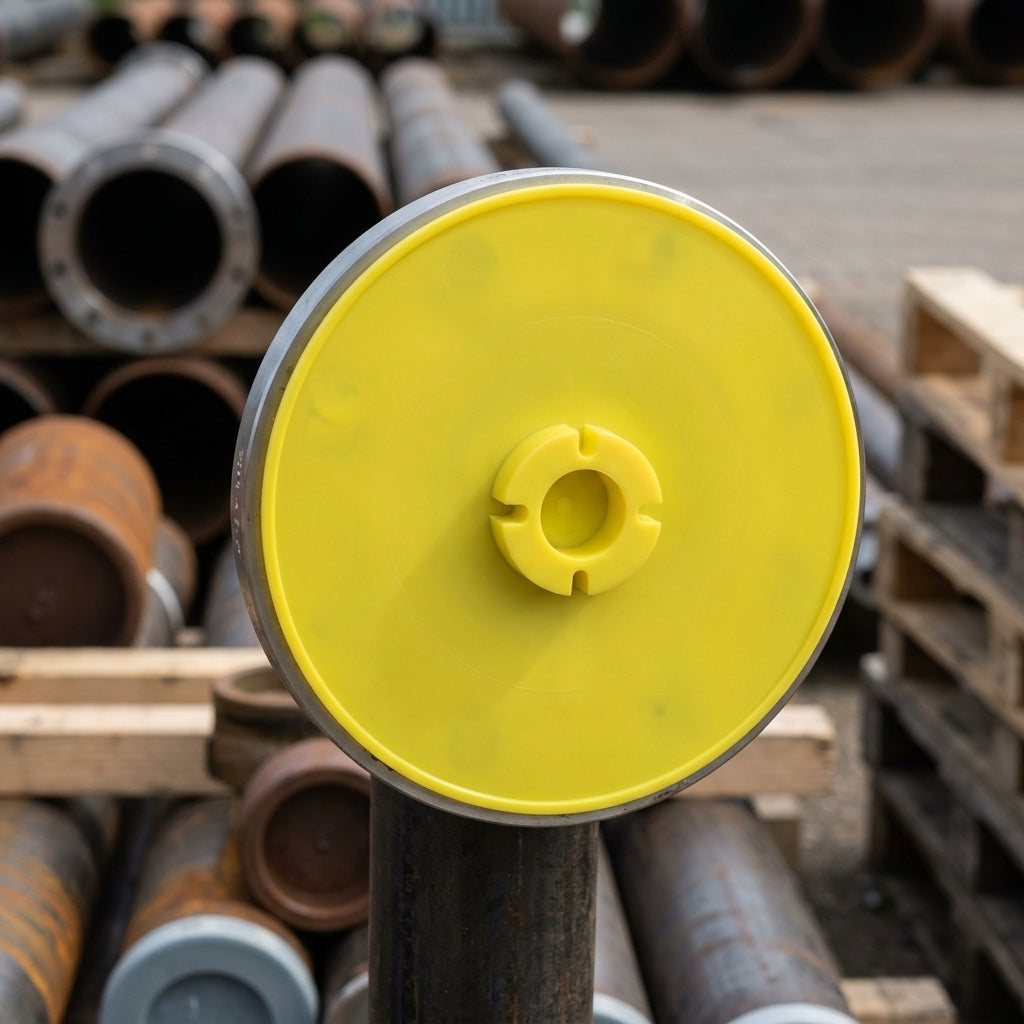

DN 40 Full Face Flange Protector - 146mm Head, Yellow LDPE
£6.43incl. VAT
Not sure it's the right size? Ask a person.
Product details
Full face flange protector with integral bore ribs for a secure, tamper-resistant fit on DN 40 flanges.
This moulded LDPE protector fully covers the flange face and sealing surface, combining the protection of a cover cap with flexible ribs that locate firmly in the flange bore. The rigid outer rim and flexible insert ensure the protector stays in place during handling, transport and storage where a loose cap could be dislodged.
Key Features
- Flexible bore ribs for secure, non-removable fit
- Full face coverage protects gasket surfaces from damage
- Resists moisture, dirt, paint splatter and most oils
- Lightweight LDPE construction
- Suitable for production, transport, storage and maintenance phases
Specifications
- Material: LDPE
- Colour: Yellow
- Head diameter: 146mm
- To fit flange: DN 40
- Nominal diameter: 1½"
Applications
- Flange protection during fabrication and assembly
- Transit and storage protection for piping systems
- Maintenance phase gasket face shielding
- High-risk environments where cover caps may be knocked off
Sizing questions
Which rating do I need?
Match the class or PN rating stamped on the flange, so the bolt holes line up.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
Does it come off before assembly?
Yes — take the protector off before the gasket goes in.
