SKU FPD133

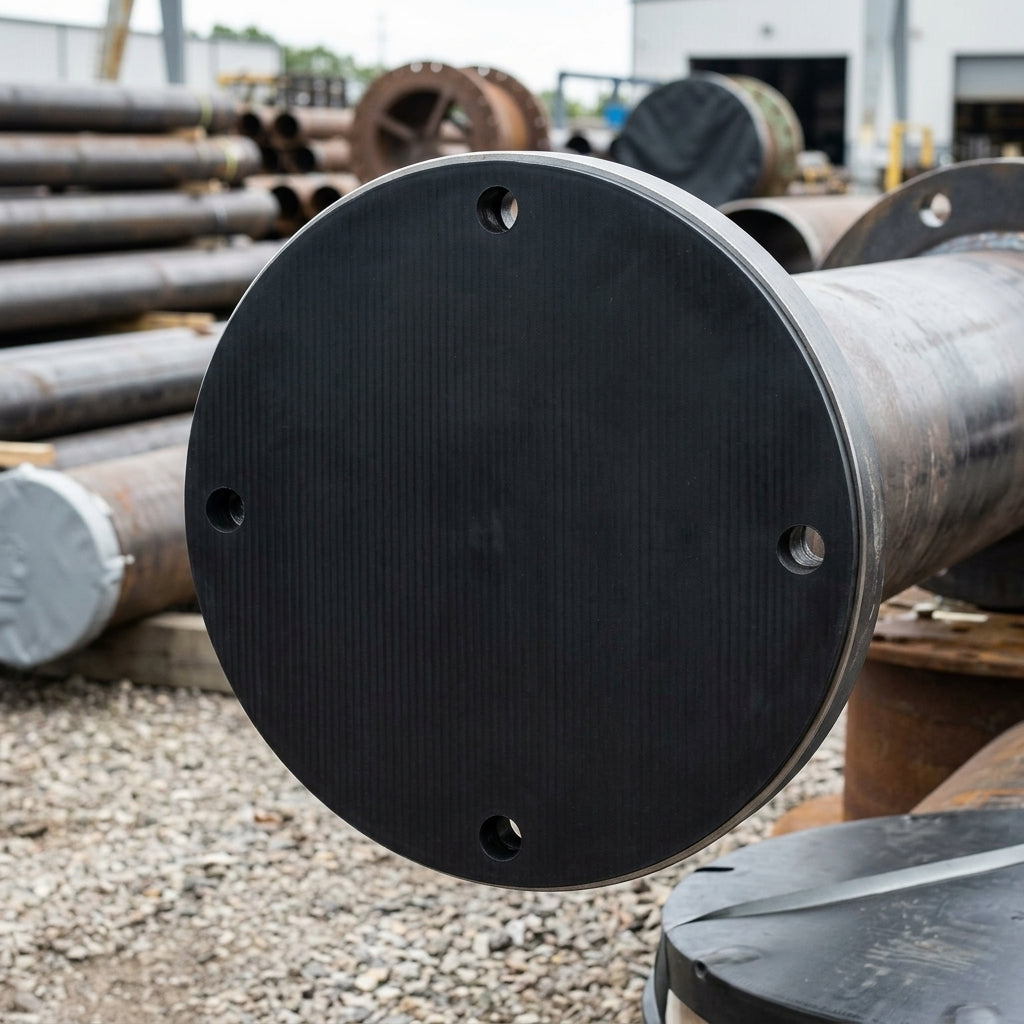

DN 350 PN 16 Flange Protector - 520mm OD, Black Polycor
Not sure it's the right size? Ask a person.
Product details
Corrugated polycor flange protector sized for DN 350 PN 16 flanges, with shock-absorbing design and bolt-hole alignment for secure attachment.
This full-face flange cover shields the gasket face and bolt holes from corrosion, dirt and moisture during handling and storage. The lightweight corrugated construction absorbs impact and vibration while protecting the critical sealing surface. Suitable for industrial and commercial pipework in demanding environments.
Key Features
- Corrugated polycor plastic construction for enhanced shock absorption
- Bolt-hole alignment at 26mm diameter for secure positioning
- Full-face coverage protects gasket sealing surface and fasteners
- Lightweight design for easy handling and installation
- Corrosion-resistant material suited to oil, gas and water service
Specifications
- Nominal size: DN 350
- Pressure series: PN 16
- Outside diameter: 520mm
- Bolt hole circle: 470mm
- Bolt hole size: 26mm
- Material: Black polycor plastic
- Attachment: Cable tie or adhesive
Applications
- Oil and gas pipeline flange protection
- Water utility flange covers
- Industrial and commercial piping systems
- Storage and transit protection for large flanges
- Corrosion prevention on exposed flange faces
Sizing questions
Which rating do I need?
Match the class or PN rating stamped on the flange, so the bolt holes line up.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
Does it come off before assembly?
Yes — take the protector off before the gasket goes in.
