SKU FPD132

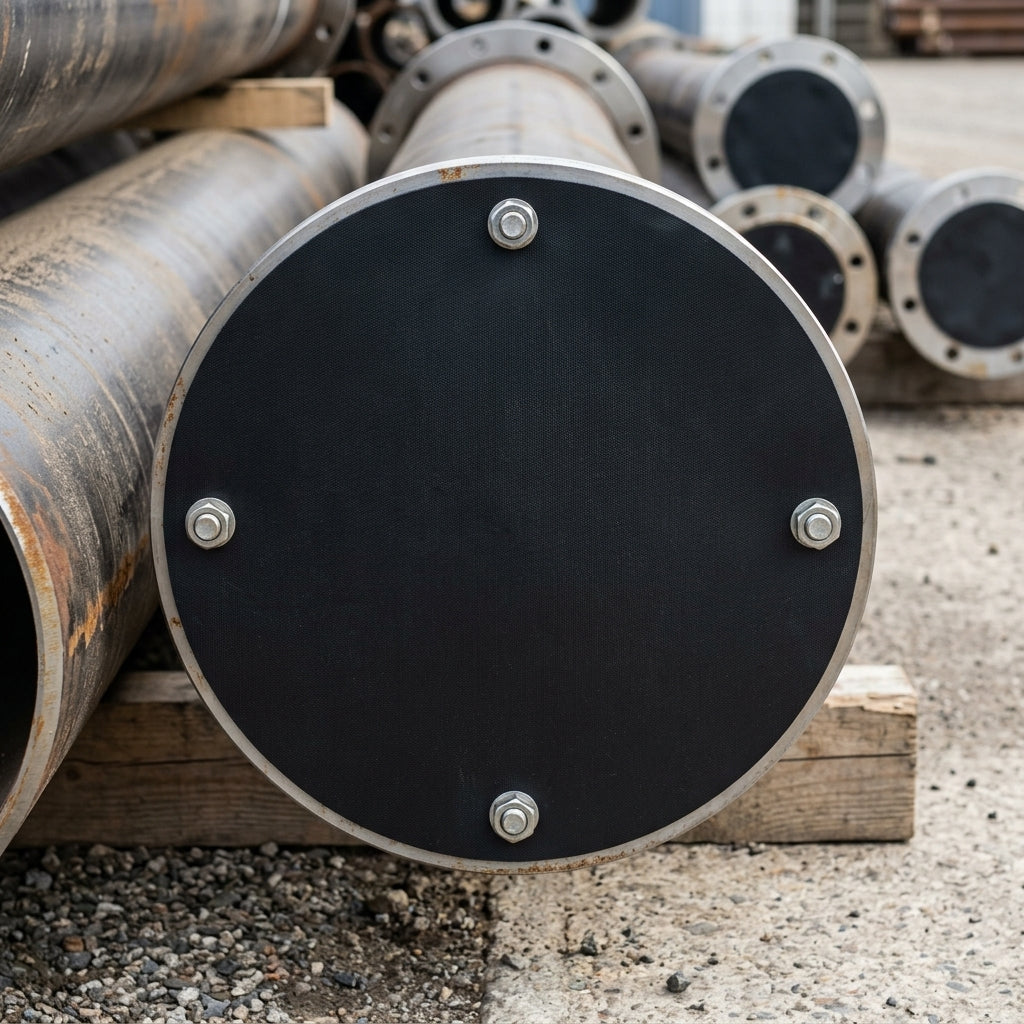

DN 300 PN 16 Flange Protector – 460mm OD, Black Polycor
Not sure it's the right size? Ask a person.
Product details
Corrugated black polycor plastic flange protector sized for DN 300 PN 16 flanges, with shock-absorbing design for industrial pipe protection.
This full-face flange cover fits DN 300 PN 16 flanges and protects the gasket face, bolts and sealing surfaces from dirt, moisture, corrosion and mechanical damage during storage, handling and transit. The lightweight corrugated polycor construction absorbs impact while remaining durable in harsh industrial environments. Attachment is simple using cable ties or adhesive.
Key Features
- Corrugated polycor plastic design for shock absorption and lightweight handling
- Full-face coverage of flange gasket and bolt circle areas
- Black material resists UV and weather exposure
- Fits standard DIN PN 16 pressure series flanges
- Secured with cable ties or contact adhesive — no tools required
Specifications
- Nominal Diameter: DN 300
- Pressure Series: PN 16
- Outside Diameter: 460mm
- Bolt Hole Circle: 410mm
- Bolt Hole Size: 26mm
- Material: Polycor plastic
- Colour: Black
Applications
- Oil and gas pipeline systems during commissioning, mothballing and decommissioning
- Water utility and municipal pipework flange protection
- Chemical and petrochemical plant flanges in storage yards
- Reducing corrosion and gasket face contamination in outdoor environments
- Cost-effective fleet protection for fabrication shops and pipe stockholders
Sizing questions
Which rating do I need?
Match the class or PN rating stamped on the flange, so the bolt holes line up.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
Does it come off before assembly?
Yes — take the protector off before the gasket goes in.
