SKU FFFP013

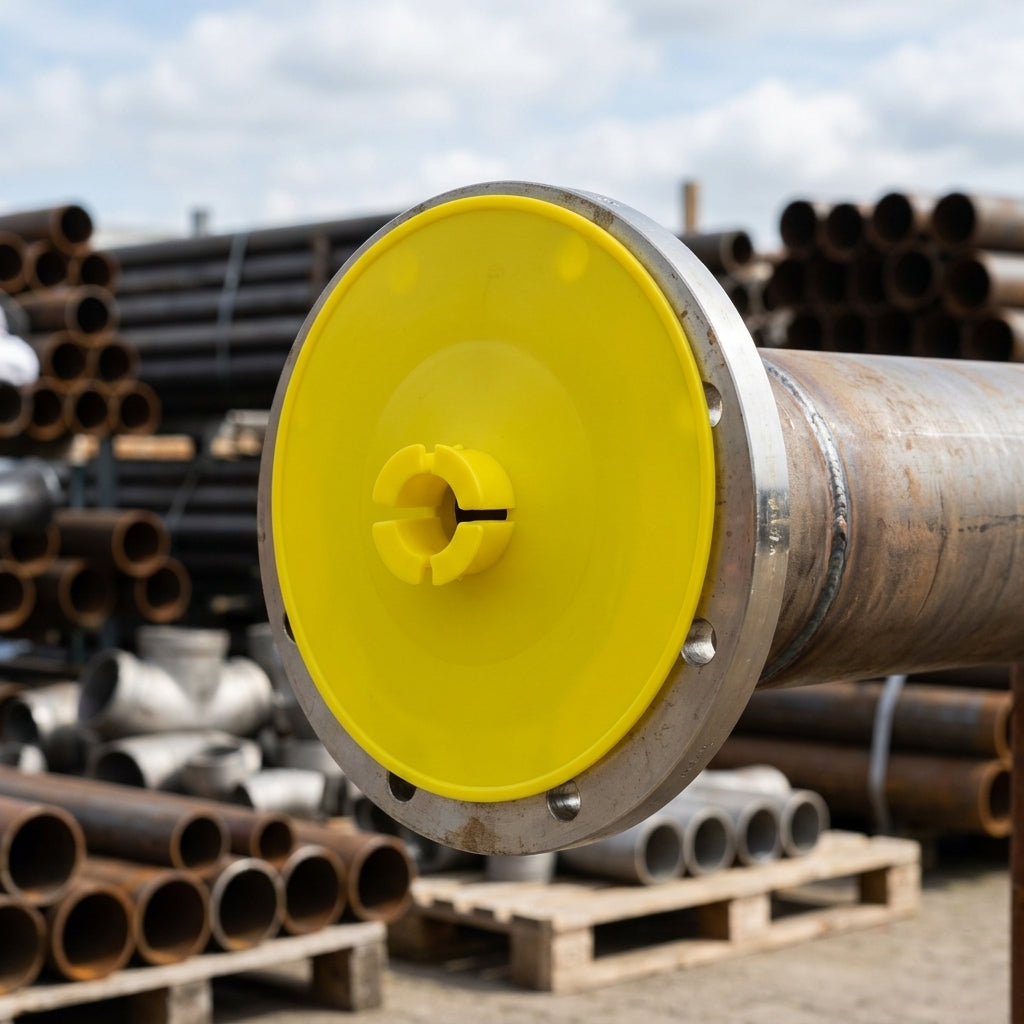

DN 200 Full Face Flange Protector - 336mm, Yellow LDPE
Not sure it's the right size? Ask a person.
Product details
Full face flange protector with integral flexible ribs for DN 200 flanges, manufactured from yellow LDPE.
This protector fully covers the flange face and seating surface, with flexible ribs that insert into the bore for a secure, tight fit that resists accidental displacement during handling. The LDPE construction resists moisture, dirt, paint and most oils, making it ideal for protecting flanges during production runs, transportation, storage and maintenance work.
Key Features
- Integral flexible ribs grip the flange bore for secure, slip-resistant fit
- Full face coverage protects gasket seating surfaces and bolt holes
- LDPE material resists moisture, dirt, paint and mineral oils
- Lightweight and easy to install and remove
- Suitable for DN 200 / 8" nominal diameter flanges
Specifications
- Material: LDPE
- Colour: Yellow
- Head Diameter: 336mm
- Flange Size: DN 200 (8" Nominal)
Applications
- Protection of flange faces during production and fabrication
- Transit and logistics protection for assembled pipework
- Temporary sealing and protection during storage
- Equipment protection during maintenance and shutdowns
Sizing questions
Which rating do I need?
Match the class or PN rating stamped on the flange, so the bolt holes line up.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
Does it come off before assembly?
Yes — take the protector off before the gasket goes in.
