SKU FD030
DN 150 Self Adhesive Flange Disc - 212mm, DIN, Neoprene
£10.94incl. VAT
Not sure it's the right size? Ask a person.
Product details

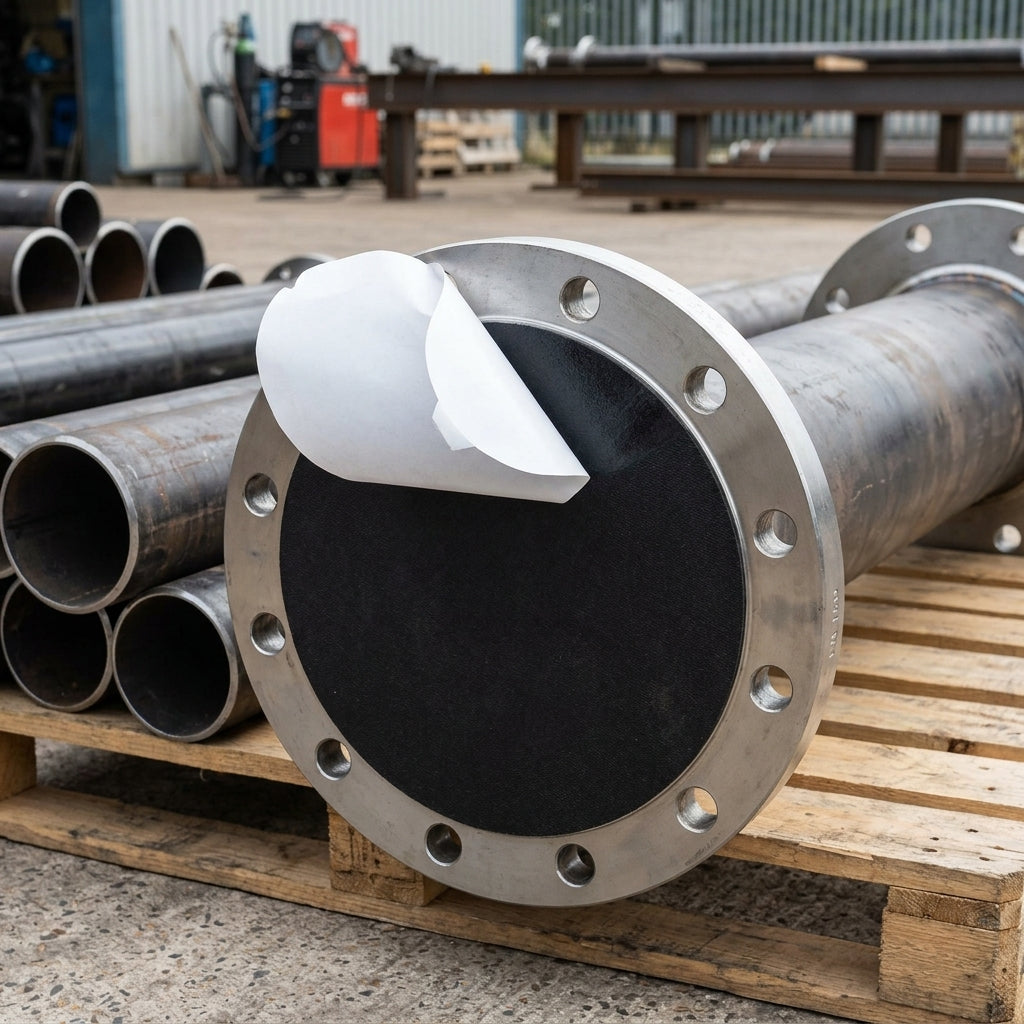

Self-adhesive neoprene rubber disc for full-face protection of DN 150 DIN flanges.
These protective discs seal and safeguard the raised face and bore of DIN flanges during storage, transportation and installation. Manufactured from 70 Shore neoprene rubber with a low-tack adhesive backing, they adhere securely without residue on removal, and resist heat, oils, acids, alkalis and petroleum products.
Key Features
- 70 Shore neoprene rubber construction
- Low-tack self-adhesive backing for clean, residue-free removal
- Full-face protection suitable for flanges rated 6–160 bar
- Chemical resistance to oils, acids, alkalis and petrols
- Operating temperature range –15 °C to +100 °C
- Simple application and removal
Specifications
- Standard: DIN
- Nominal size: DN 150
- Disc diameter: 212 mm
- Material: 70 Shore neoprene rubber
- Backing: self-adhesive (low-tack)
Applications
- Storage protection for flanged pipework
- Transit protection for valve and pump assemblies
- Bore and gasket-face sealing
- Oil, gas and chemical process installations
- Plant maintenance and commissioning
Sizing questions
Which disc size do I need?
Pick the disc for your flange standard and nominal size. The disc diameter is in the title so you can check it against the flange face.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
Does it come off before assembly?
Yes — peel the disc off before the gasket goes in.
