SKU FFFP012

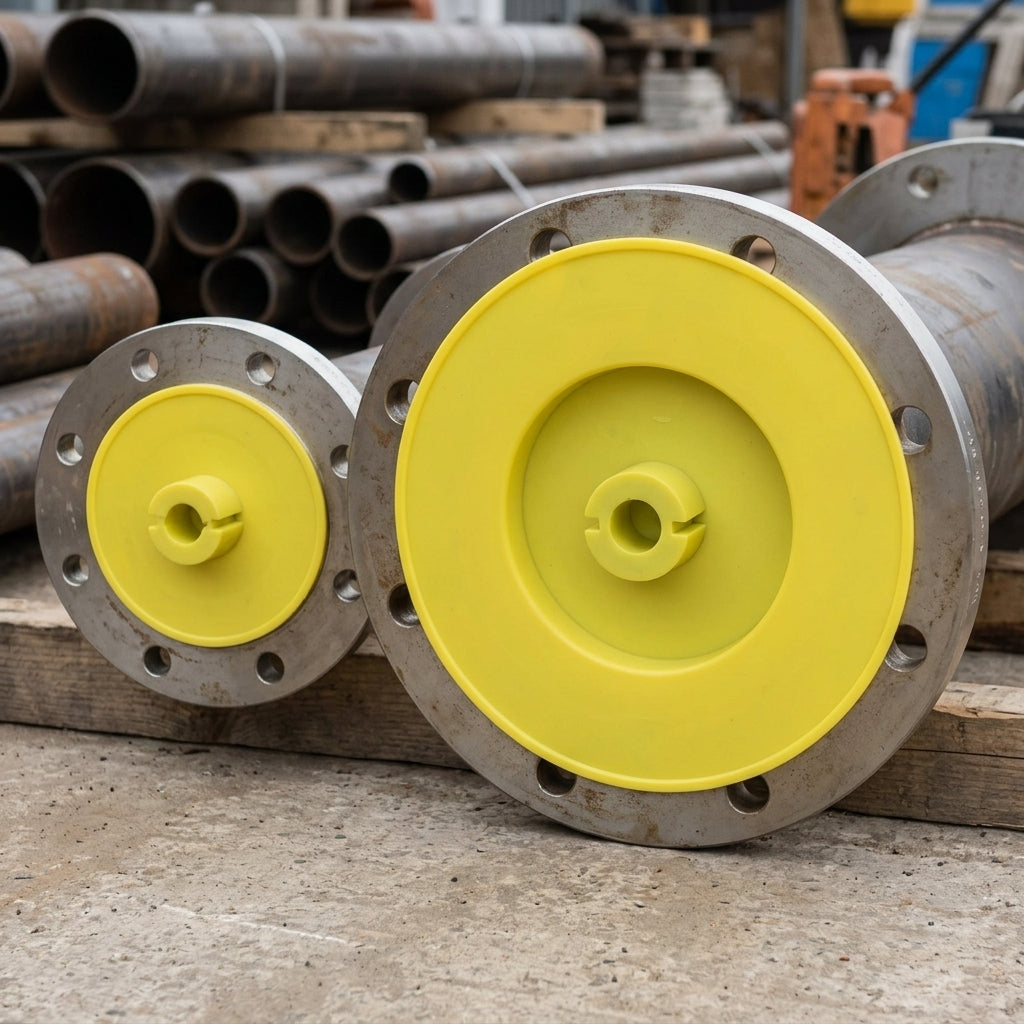

DN 150 Full Face Flange Protector – 280mm OD, Yellow LDPE
Not sure it's the right size? Ask a person.
Product details
Full face flange protector with integral flexible ribs for a secure, slip-resistant fit on DN 150 pipe flanges.
This protector combines the coverage of a standard cap with flexible ribs that insert into the flange bore, preventing accidental displacement during handling, transport and storage. Manufactured from high-quality LDPE, it resists moisture, dirt, paint splatter and most oils, safeguarding the critical gasket sealing surface from contamination and mechanical damage.
Key Features
- Flexible ribs engage the flange bore for a tight, secure fit
- Full face coverage protects the entire gasket sealing surface
- LDPE material resists moisture, oils, dirt and paint
- Lightweight and reusable across multiple applications
- Suitable for production, transportation, storage and maintenance phases
Specifications
- Standard: DN 150
- Nominal Diameter: 6"
- Head Diameter: 280mm OD
- Material: LDPE
- Colour: Yellow
Applications
- Flange face protection during pipe fabrication and assembly
- Storage and warehouse protection against environmental contamination
- Transit and handling protection to prevent gasket damage
- Maintenance operations where flanges are exposed
- Industrial pipework systems requiring temporary flange sealing
Sizing questions
Which rating do I need?
Match the class or PN rating stamped on the flange, so the bolt holes line up.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
Does it come off before assembly?
Yes — take the protector off before the gasket goes in.
