SKU FFFP002

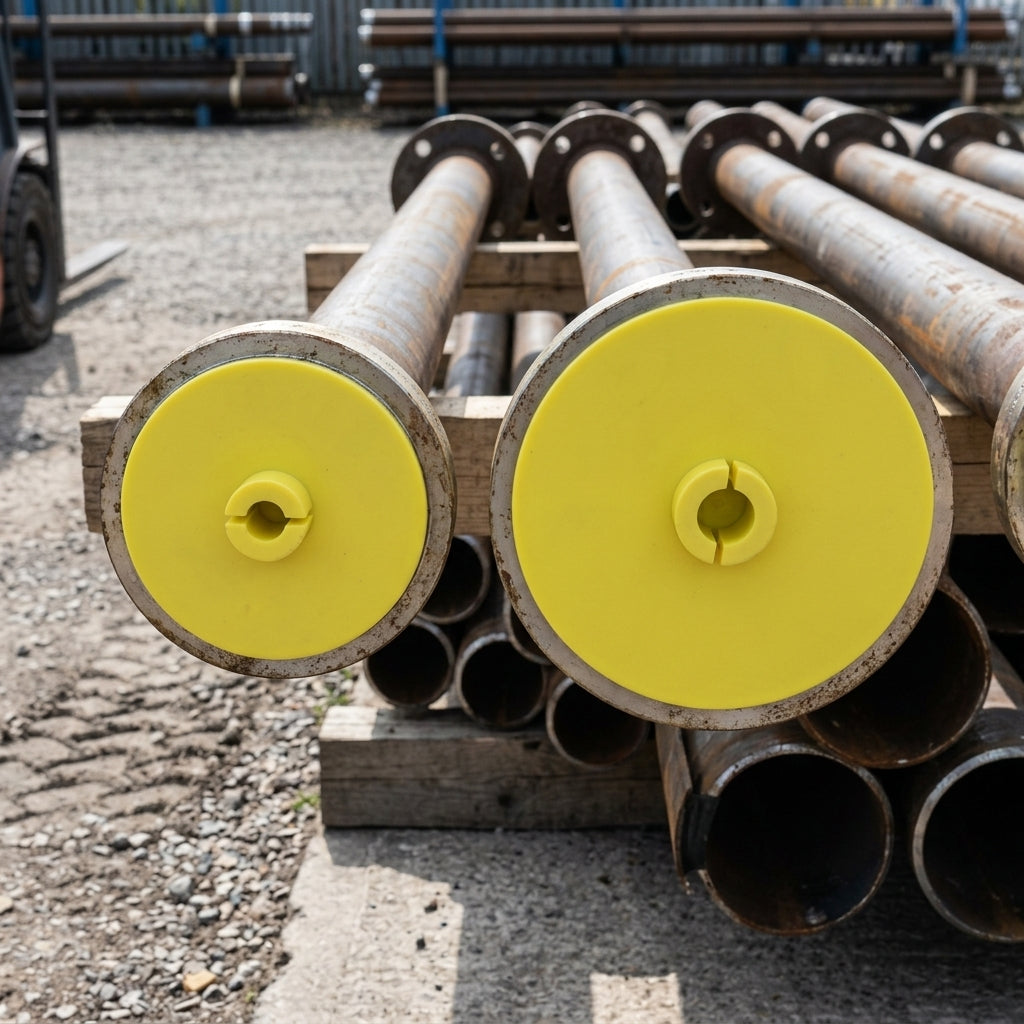

DN 15 Full Face Flange Protector – 90mm, Yellow LDPE
Not sure it's the right size? Ask a person.
Product details
Full face flange protector with integrated flexible ribs for secure fit on DN 15 pipe flanges.
This moulded LDPE protector covers the entire flange face and includes flexible ribs that insert into the bore to prevent accidental displacement during handling, storage and transport. It creates a protective seal against moisture, dirt, paint splatter and most oils, making it ideal for production facilities, maintenance operations and logistics environments where flange faces must remain clean and damage-free.
Key Features
- Flexible bore inserts grip the pipe ID for a secure, snug fit
- Covers full flange face to protect gasket sealing surface
- Lightweight, durable LDPE construction
- Resistant to moisture, dirt, paint and most oils
- Stays in place during transit and storage without additional fastening
Specifications
- Standard: DN 15
- Nominal pipe diameter: 1/2"
- Head diameter: 90mm
- Material: LDPE
- Colour: Yellow
Applications
- Protection during pipeline fabrication and assembly
- Storage of flange assemblies and spool pieces
- Shipment and logistics operations
- Maintenance shutdowns and equipment layup
- Industrial plant pipework protection
Sizing questions
Which rating do I need?
Match the class or PN rating stamped on the flange, so the bolt holes line up.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
Does it come off before assembly?
Yes — take the protector off before the gasket goes in.
