SKU FFFP011

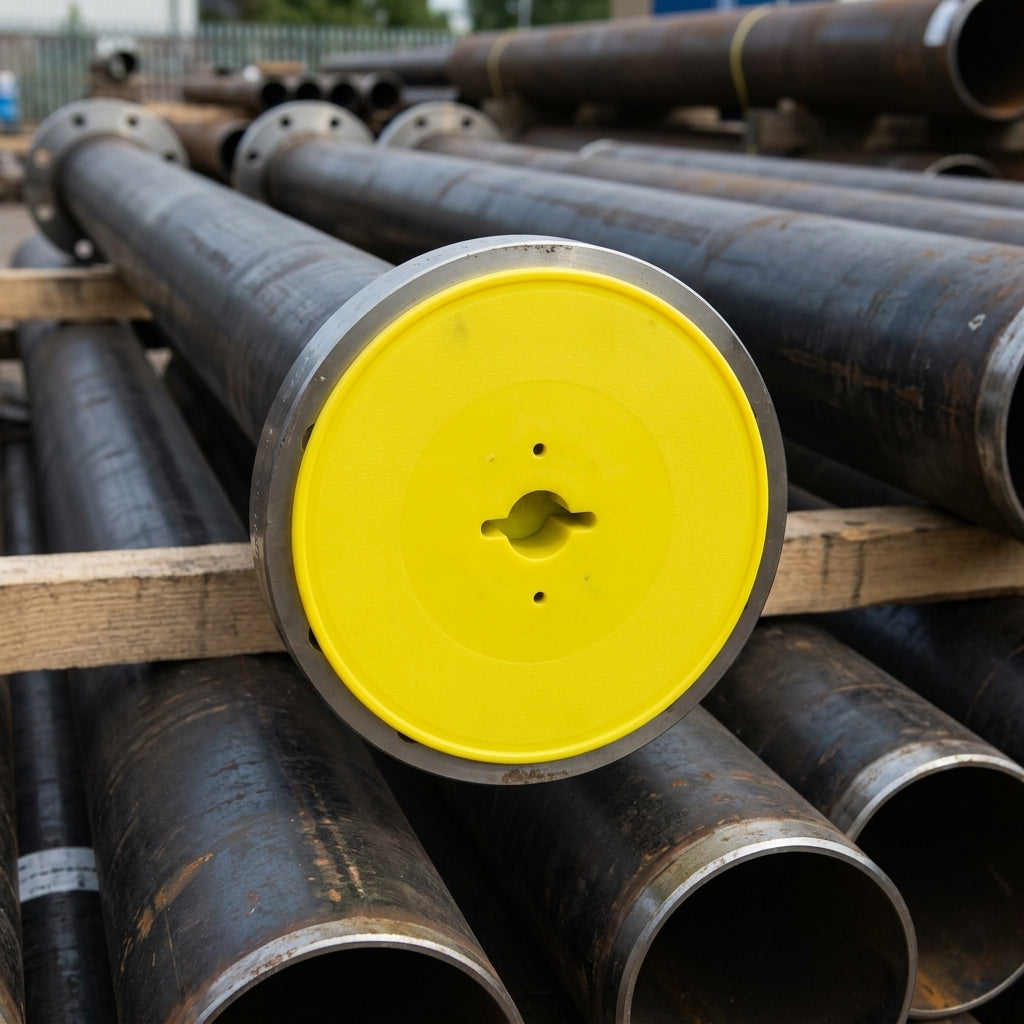

DN 125 Full Face Flange Protector - 246mm, Yellow LDPE
Not sure it's the right size? Ask a person.
Product details
Full face flange protector with flexible ribs for a secure grip on DN 125 flanges.
This protective cover fits DN 125 flanges with a 5" nominal diameter and features integral flexible ribs that insert into the flange bore, preventing accidental displacement during handling and transit. Manufactured from durable LDPE, it guards the flange face against moisture, dirt, paint spray and light oil contact.
Key Features
- Flexible ribs grip the bore for a tight, secure fit
- Full face coverage protects the entire gasket sealing surface
- Lightweight LDPE construction resists moisture and dirt ingress
- Yellow finish for high visibility on site
- Quick and easy application without tools
Specifications
- Material: LDPE
- Colour: Yellow
- Head Diameter: 246mm
- Nominal Size: DN 125 (5" NPS)
- Design: Full face with flexible bore ribs
Applications
- Flange protection during manufacturing and assembly
- In-transit and warehouse storage shielding
- Maintenance shutdowns and planned maintenance
- Protection against paint, debris and environmental contamination
- Securing covers where vibration or handling risks displacement
Sizing questions
Which rating do I need?
Match the class or PN rating stamped on the flange, so the bolt holes line up.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
Does it come off before assembly?
Yes — take the protector off before the gasket goes in.
